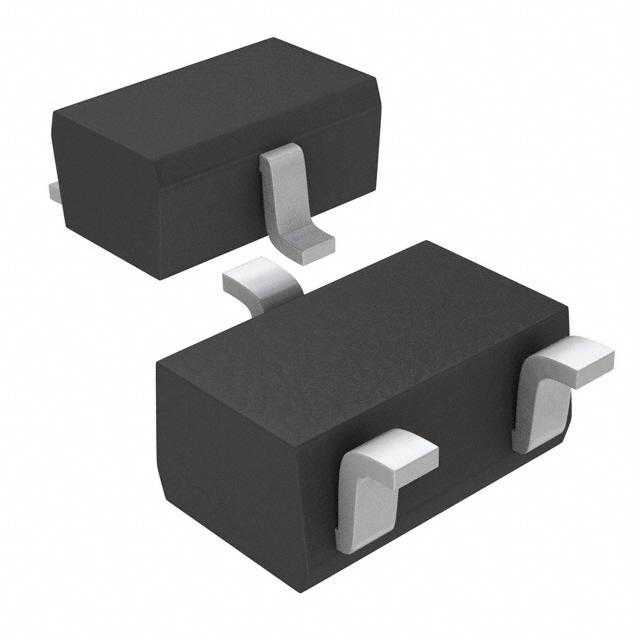

Diodes Incorporated BC857BWQ-13-F

Manufacturer No:
BC857BWQ-13-F
Manufacturer:
Diodes Incorporated
Package:
Tape & Reel (TR)
Description:
TRANS PNP 120V 0.05A UMT3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC857BWQ-13-F is a PNP small signal transistor manufactured by Diodes Incorporated. It is packaged in the SOT323 format, which is a small outline transistor package. This transistor is designed for general-purpose applications and is known for its high current gain and low noise characteristics. The BC857BWQ-13-F is lead-free and compliant with RoHS standards, making it suitable for use in a wide range of electronic devices.

Key Specifications

ParameterValue
Transistor TypePNP
PackageSOT323
Collector-Base Voltage (Vcb)50 V
Collector-Emitter Voltage (Vce)50 V
Emitter-Base Voltage (Veb)5 V
Collector Current (Ic)100 mA
Base Current (Ib)5 mA
Current Gain (hfe)100-600
Operating Temperature Range-55°C to 150°C
Rohs StatusLead free / RoHS compliant

Key Features

  • High current gain (hfe) of 100-600, making it suitable for amplification and switching applications.
  • Low noise characteristics, ideal for use in audio and signal processing circuits.
  • Small SOT323 package, which is compact and saves board space.
  • Lead-free and RoHS compliant, ensuring environmental sustainability.
  • Wide operating temperature range from -55°C to 150°C, enhancing reliability in various environments.

Applications

The BC857BWQ-13-F transistor is versatile and can be used in a variety of applications, including:

  • General-purpose amplification and switching circuits.
  • Audio and signal processing circuits due to its low noise characteristics.
  • Automotive and industrial control systems where reliability and high temperature tolerance are crucial.
  • Consumer electronics such as audio equipment, telecommunication devices, and other small signal applications.

Q & A

  1. What is the package type of the BC857BWQ-13-F transistor?
    The BC857BWQ-13-F transistor is packaged in the SOT323 format.
  2. What is the maximum collector current of the BC857BWQ-13-F transistor?
    The maximum collector current is 100 mA.
  3. Is the BC857BWQ-13-F transistor RoHS compliant?
    Yes, the BC857BWQ-13-F transistor is lead-free and RoHS compliant.
  4. What is the operating temperature range of the BC857BWQ-13-F transistor?
    The operating temperature range is from -55°C to 150°C.
  5. What are the typical applications of the BC857BWQ-13-F transistor?
    The BC857BWQ-13-F transistor is used in general-purpose amplification, switching circuits, audio and signal processing, automotive, and industrial control systems.
  6. What is the current gain (hfe) of the BC857BWQ-13-F transistor?
    The current gain (hfe) of the BC857BWQ-13-F transistor is 100-600.
  7. What is the maximum collector-base voltage (Vcb) of the BC857BWQ-13-F transistor?
    The maximum collector-base voltage (Vcb) is 50 V.
  8. What is the maximum emitter-base voltage (Veb) of the BC857BWQ-13-F transistor?
    The maximum emitter-base voltage (Veb) is 5 V.
  9. Is the BC857BWQ-13-F transistor suitable for high-frequency applications?
    While it can be used in various applications, it is primarily designed for general-purpose and low-frequency applications due to its characteristics.
  10. Where can I find detailed specifications and datasheets for the BC857BWQ-13-F transistor?
    Detailed specifications and datasheets can be found on the official Diodes Incorporated website, as well as on distributor websites such as DigiKey, Mouser, and others.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):50 mA
Voltage - Collector Emitter Breakdown (Max):120 V
Vce Saturation (Max) @ Ib, Ic:500mV @ 1mA, 10mA
Current - Collector Cutoff (Max):500nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:180 @ 2mA, 6V
Power - Max:200 mW
Frequency - Transition:140MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-70, SOT-323
Supplier Device Package:UMT3
