Overview

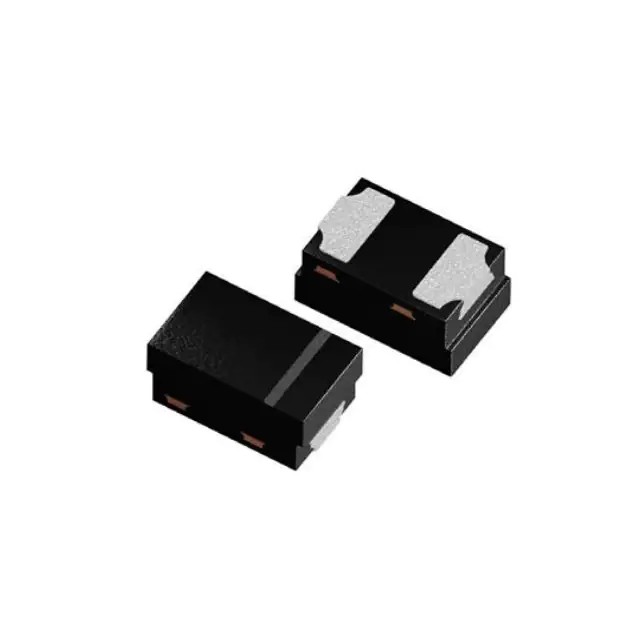

The BAS16LTH-G3-08 is a high-performance, low-profile surface-mount small signal diode manufactured by Vishay General Semiconductor - Diodes Division. This component is designed to meet the demands of modern electronic systems requiring high reliability and compact design. The BAS16LTH-G3-08 is part of Vishay's extensive range of diodes, known for their quality and performance in various applications.
Key Specifications
| Parameter | Value |
|---|---|
| Diode Type | Small Signal Diode |
| Package | SOD-123 |
| Forward Current (IF) | 200 mA |
| Reverse Voltage (VR) | 80 V |
| Forward Voltage (VF) | 1.25 V at 100 mA |
| Reverse Current (IR) | 5 nA at 80 V |
| Operating Temperature Range | -55°C to 150°C |
| Storage Temperature Range | -55°C to 150°C |
Key Features
- Low profile SOD-123 package for space-saving designs
- High reverse voltage of 80 V
- Low forward voltage drop of 1.25 V at 100 mA
- High reliability and long lifespan
- Suitable for high-frequency applications
- Compliant with RoHS and halogen-free standards
Applications
The BAS16LTH-G3-08 is versatile and can be used in a variety of applications, including:
- Switching and rectification circuits
- High-frequency signal processing
- Automotive and industrial control systems
- Consumer electronics and appliances
- Telecommunications and networking equipment
Q & A
- What is the package type of the BAS16LTH-G3-08? The package type is SOD-123.
- What is the maximum forward current rating of the BAS16LTH-G3-08? The maximum forward current rating is 200 mA.
- What is the reverse voltage rating of the BAS16LTH-G3-08? The reverse voltage rating is 80 V.
- What is the typical forward voltage drop of the BAS16LTH-G3-08? The typical forward voltage drop is 1.25 V at 100 mA.
- Is the BAS16LTH-G3-08 RoHS compliant? Yes, the BAS16LTH-G3-08 is RoHS compliant and halogen-free.
- What is the operating temperature range of the BAS16LTH-G3-08? The operating temperature range is -55°C to 150°C.
- What are some common applications of the BAS16LTH-G3-08? Common applications include switching and rectification circuits, high-frequency signal processing, automotive and industrial control systems, consumer electronics, and telecommunications equipment.
- Where can I find detailed specifications for the BAS16LTH-G3-08? Detailed specifications can be found on the official Vishay website, Digi-Key, Mouser Electronics, and other authorized distributors.
- Is the BAS16LTH-G3-08 suitable for high-frequency applications? Yes, the BAS16LTH-G3-08 is suitable for high-frequency applications due to its low capacitance and fast switching times.
- What is the storage temperature range for the BAS16LTH-G3-08? The storage temperature range is -55°C to 150°C.
