Overview

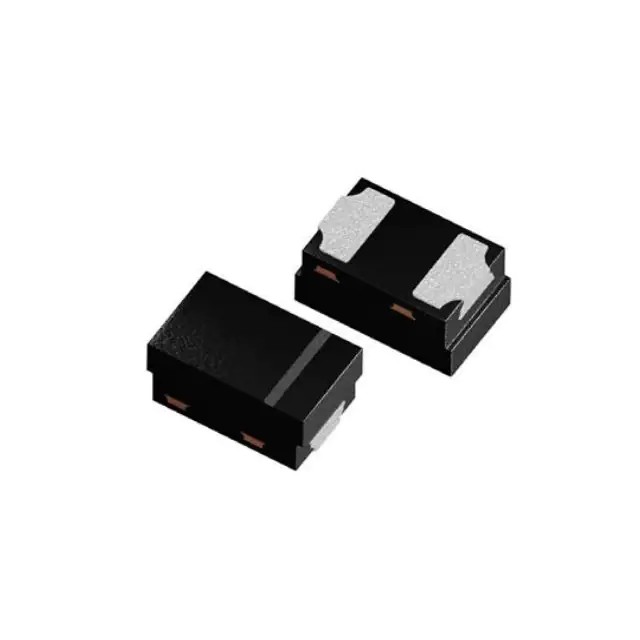

The BAS16LTH-HG3-08 is a small-signal switching diode produced by Vishay General Semiconductor - Diodes Division. This diode is part of the BAS16LTH series and is packaged in the ultra-compact DFN1006-2A package. It is designed to offer high performance in a space-saving form factor, making it ideal for various electronic applications where size and efficiency are critical.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage Rating (V) | 100 V |
| Current Rating (I) | 250 mA |
| Package Type | DFN1006-2A |
| RoHS Compliance | Yes |
| Lead-Free | Totally Lead Free |
| MSL Designation | Floor Life-Unlimited |
| Device Termination Plating Finish | Silver (Sn) |
| Halogen-Free | Yes |
| GREEN | Yes |
| Qualification | Non-Automotive |
Key Features
- Ultra-compact DFN1006-2A package, ideal for space-saving designs.
- High voltage rating of 100 V and current rating of 250 mA.
- Totally lead-free and RoHS-compliant, adhering to environmental standards.
- Halogen-free, conforming to JEDEC JS709A standards.
- Unlimited floor life, reducing storage and handling concerns.
- Silver (Sn) plating finish for reliable connections.
Applications
The BAS16LTH-HG3-08 is suitable for a variety of applications where small-signal switching is required. These include:
- General-purpose switching circuits.
- Low-voltage power supplies and voltage regulators.
- Audio and video equipment.
- Automotive and industrial control systems.
- Consumer electronics such as smartphones, tablets, and laptops.
Q & A
- What is the voltage rating of the BAS16LTH-HG3-08 diode?
The voltage rating of the BAS16LTH-HG3-08 diode is 100 V. - What is the current rating of the BAS16LTH-HG3-08 diode?
The current rating of the BAS16LTH-HG3-08 diode is 250 mA. - What package type is used for the BAS16LTH-HG3-08 diode?
The BAS16LTH-HG3-08 diode is packaged in the ultra-compact DFN1006-2A package. - Is the BAS16LTH-HG3-08 diode RoHS-compliant?
Yes, the BAS16LTH-HG3-08 diode is RoHS-compliant. - Is the BAS16LTH-HG3-08 diode lead-free?
Yes, the BAS16LTH-HG3-08 diode is totally lead-free. - What is the device termination plating finish of the BAS16LTH-HG3-08 diode?
The device termination plating finish of the BAS16LTH-HG3-08 diode is silver (Sn). - Is the BAS16LTH-HG3-08 diode halogen-free?
Yes, the BAS16LTH-HG3-08 diode is halogen-free. - What is the MSL designation of the BAS16LTH-HG3-08 diode?
The MSL designation of the BAS16LTH-HG3-08 diode is floor life-unlimited. - What are some common applications of the BAS16LTH-HG3-08 diode?
The BAS16LTH-HG3-08 diode is commonly used in general-purpose switching circuits, low-voltage power supplies, audio and video equipment, automotive and industrial control systems, and consumer electronics. - Where can I find the datasheet for the BAS16LTH-HG3-08 diode?
The datasheet for the BAS16LTH-HG3-08 diode can be found on the Vishay website or through authorized distributors like Kaimeite, JAK Electronics, and Mouser.
