Overview

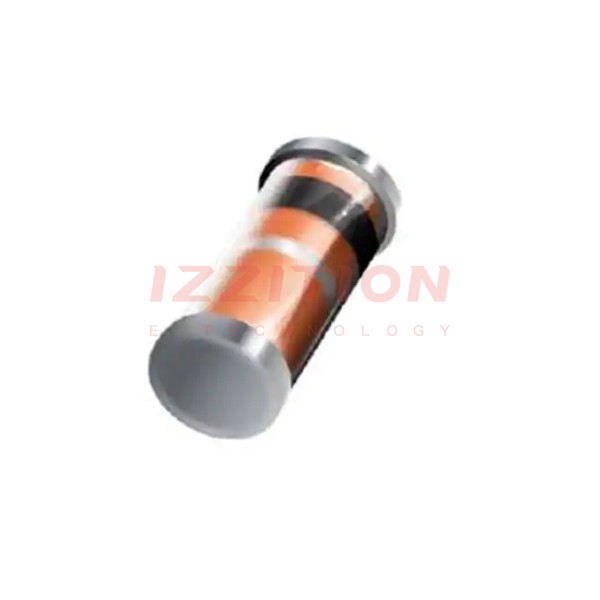

The BAS85 L0G is a Schottky barrier diode produced by Taiwan Semiconductor Corporation. This component is designed for high-speed switching applications and is characterized by its low forward voltage drop and fast reverse recovery time. The BAS85 L0G is packaged in a Mini MELF (DO-213AC, SOD-80) case, making it suitable for surface mount technology. Despite being marked as obsolete, it remains a popular choice for various electronic designs due to its performance and reliability.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Voltage - DC Reverse (Vr) (Max) | 30 | V |
| Current - Average Rectified (Io) | 200 | mA |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA | mV |
| Reverse Recovery Time (trr) | 5 | ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V | µA |
| Capacitance @ Vr, F | 10 pF @ 1 V, 1 MHz | pF |
| Operating Temperature - Junction | -65 to +125 | °C |
| Package/Case | Mini MELF (DO-213AC, SOD-80) | |
| Mounting Type | Surface Mount | |
| RoHS Status | ROHS3 Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Key Features
- Low forward voltage drop (Vf): 800 mV @ 100 mA, ensuring minimal power loss.
- Fast reverse recovery time (trr): 5 ns, suitable for high-speed switching applications.
- High junction temperature range: -65 to +125 °C, enhancing reliability in various environmental conditions.
- Low reverse leakage current: 2 µA @ 25 V, reducing standby power consumption.
- Mini MELF package: Compact and suitable for surface mount technology, facilitating dense circuit designs.
- ROHS3 compliant and MSL 1 (Unlimited), ensuring environmental compliance and ease of handling.
Applications
The BAS85 L0G Schottky diode is widely used in various electronic applications, including:
- High-frequency switching circuits due to its fast reverse recovery time.
- Power supply circuits where low forward voltage drop is crucial.
- Audio and video equipment for its low noise and high reliability.
- Automotive and industrial control systems requiring robust and high-temperature tolerant components.
Q & A
- Q: What is the maximum DC reverse voltage of the BAS85 L0G?
A: The maximum DC reverse voltage (Vr) is 30 V. - Q: What is the average rectified current (Io) of the BAS85 L0G?
A: The average rectified current (Io) is 200 mA. - Q: What is the forward voltage drop (Vf) of the BAS85 L0G at 100 mA?
A: The forward voltage drop (Vf) at 100 mA is 800 mV. - Q: What is the reverse recovery time (trr) of the BAS85 L0G?
A: The reverse recovery time (trr) is 5 ns. - Q: Is the BAS85 L0G ROHS compliant?
A: Yes, the BAS85 L0G is ROHS3 compliant. - Q: What is the moisture sensitivity level (MSL) of the BAS85 L0G?
A: The MSL is 1 (Unlimited). - Q: What is the operating junction temperature range of the BAS85 L0G?
A: The operating junction temperature range is -65 to +125 °C. - Q: What package type is the BAS85 L0G available in?
A: The BAS85 L0G is available in a Mini MELF (DO-213AC, SOD-80) package. - Q: Is the BAS85 L0G suitable for surface mount technology?
A: Yes, the BAS85 L0G is designed for surface mount technology. - Q: What is the warranty period for the BAS85 L0G from some suppliers?
A: Some suppliers, like Ovaga, offer a 1-year warranty for the BAS85 L0G.
