Overview

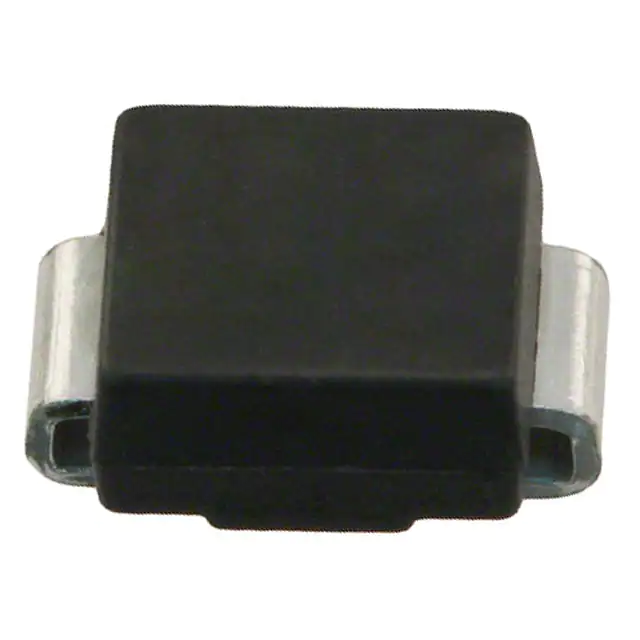

The STTA106U is a high-performance, ultra-fast high voltage power diode produced by STMicroelectronics. It belongs to the TURBOSWITCH family, known for drastically reducing losses in high-voltage applications. Although the STTA106U is currently obsolete and no longer manufactured, it remains an important component in understanding advanced diode technology.
Key Specifications
| Parameter | Value |
|---|---|
| Configuration | Single |
| Vf - Forward Voltage | 1.75 V |
| Max Surge Current | 25 A |
| Ir - Reverse Current | 10 uA |
| Recovery Time | 50 ns |
| Voltage Rating | 600 V |
| Current Rating | 1 A |
Key Features
- Ultra-fast recovery time of 50 ns, making it suitable for high-frequency applications.
- High voltage rating of 600 V, ensuring robust performance in high-voltage environments.
- Low forward voltage drop of 1.75 V, reducing power losses.
- High surge current capability of up to 25 A, providing reliability under transient conditions.
- Low reverse current of 10 uA, minimizing leakage current.
Applications
The STTA106U is designed for use in various high-voltage and high-frequency applications, including:
- Switch-mode power supplies (SMPS)
- High-frequency inverters and converters
- Pulse-width modulation (PWM) circuits
- High-voltage rectification and filtering
Q & A
- What is the STTA106U?
The STTA106U is an ultra-fast high voltage power diode from STMicroelectronics.
- What is the forward voltage drop of the STTA106U?
The forward voltage drop is 1.75 V.
- What is the maximum surge current of the STTA106U?
The maximum surge current is 25 A.
- What is the recovery time of the STTA106U?
The recovery time is 50 ns.
- What is the voltage rating of the STTA106U?
The voltage rating is 600 V.
- Is the STTA106U still in production?
No, the STTA106U is obsolete and no longer manufactured.
- What are some common applications of the STTA106U?
Common applications include switch-mode power supplies, high-frequency inverters and converters, PWM circuits, and high-voltage rectification and filtering.
- What is the reverse current of the STTA106U?
The reverse current is 10 uA.
- Why is the STTA106U considered high-performance?
The STTA106U is considered high-performance due to its ultra-fast recovery time, low forward voltage drop, and high surge current capability.
- Where can I find detailed specifications for the STTA106U?
Detailed specifications can be found in the datasheet available from STMicroelectronics or through distributors like Mouser and Digi-Key.
