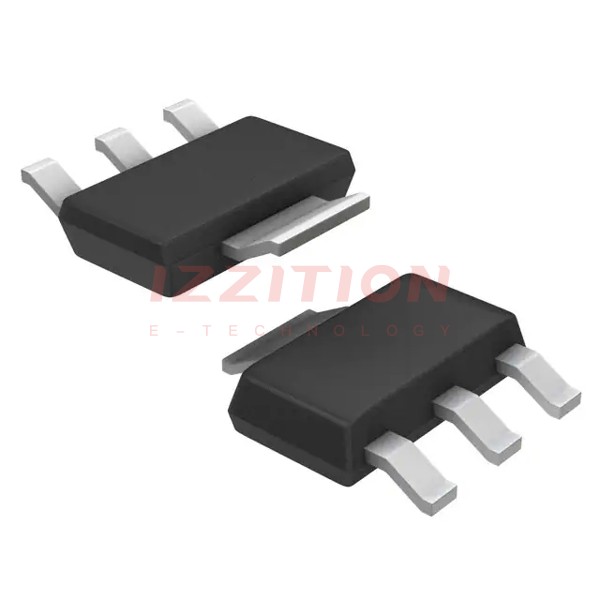

STMicroelectronics STN9360

Manufacturer No:
STN9360
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
TRANS PNP 600V 0.5A SOT223
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STN9360 is a high voltage fast-switching PNP power transistor manufactured by STMicroelectronics. This device is designed using high voltage multi epitaxial planar technology, which enables high switching speeds and medium voltage capability. It features a cellular emitter structure with planar edge termination, enhancing switching speeds while maintaining a wide RBSOA (Reverse Bias Safe Operating Area). The STN9360 is particularly suited for use in lighting applications and low-cost switch-mode power supplies.

Key Specifications

Parameter Value
Collector-Emitter Voltage (Vce) 600V
Collector Current (Ic) 0.5A
Power Dissipation (Pd) 1.6W
Package SOT-223-4
Current Gain (hfe) 200
Operating Temperature Range -40°C to 150°C
RoHS Compliance Yes, Ecopack2

Key Features

  • High voltage capability up to 600V
  • Fast-switching performance due to high voltage multi epitaxial planar technology
  • Cellular emitter structure with planar edge termination for enhanced switching speeds and wide RBSOA
  • Compact SOT-223-4 package
  • High current gain (hfe) of 200
  • RoHS compliant (Ecopack2)

Applications

The STN9360 is designed for various applications, including:

  • Lighting applications
  • Low-cost switch-mode power supplies

Q & A

  1. What is the collector-emitter voltage rating of the STN9360?

    The collector-emitter voltage rating of the STN9360 is 600V.

  2. What is the maximum collector current for the STN9360?

    The maximum collector current for the STN9360 is 0.5A.

  3. What is the power dissipation capability of the STN9360?

    The power dissipation capability of the STN9360 is 1.6W.

  4. In what package is the STN9360 available?

    The STN9360 is available in the SOT-223-4 package.

  5. What is the current gain (hfe) of the STN9360?

    The current gain (hfe) of the STN9360 is 200.

  6. Is the STN9360 RoHS compliant?

    Yes, the STN9360 is RoHS compliant (Ecopack2).

  7. What are the typical applications for the STN9360?

    The STN9360 is typically used in lighting applications and low-cost switch-mode power supplies.

  8. What is the operating temperature range for the STN9360?

    The operating temperature range for the STN9360 is -40°C to 150°C.

  9. Where can I find the datasheet and other resources for the STN9360?

    You can find the datasheet and other resources for the STN9360 on the STMicroelectronics website and through distributors like Digi-Key and LCSC.

  10. Is the STN9360 available for purchase from distributors?

    Yes, the STN9360 is available for purchase from various distributors such as Digi-Key, LCSC, and TME.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):600 V
Vce Saturation (Max) @ Ib, Ic:500mV @ 10mA, 100mA
Current - Collector Cutoff (Max):10µA
DC Current Gain (hFE) (Min) @ Ic, Vce:120 @ 20mA, 5V
Power - Max:1.6 W
Frequency - Transition:-
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-261-4, TO-261AA
Supplier Device Package:SOT-223
0 Remaining View Similar

In Stock

$1.02
172

Please send RFQ , we will respond immediately.

Similar Products

Part Number STN9360 STN9260
Manufacturer STMicroelectronics STMicroelectronics
Product Status Active Active
Transistor Type PNP PNP
Current - Collector (Ic) (Max) 500 mA 500 mA
Voltage - Collector Emitter Breakdown (Max) 600 V 600 V
Vce Saturation (Max) @ Ib, Ic 500mV @ 10mA, 100mA 1V @ 10mA, 100mA
Current - Collector Cutoff (Max) 10µA 10µA
DC Current Gain (hFE) (Min) @ Ic, Vce 120 @ 20mA, 5V 50 @ 20mA, 5V
Power - Max 1.6 W 1.6 W
Frequency - Transition - -
Operating Temperature 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Package / Case TO-261-4, TO-261AA TO-261-4, TO-261AA
Supplier Device Package SOT-223 SOT-223
