Overview

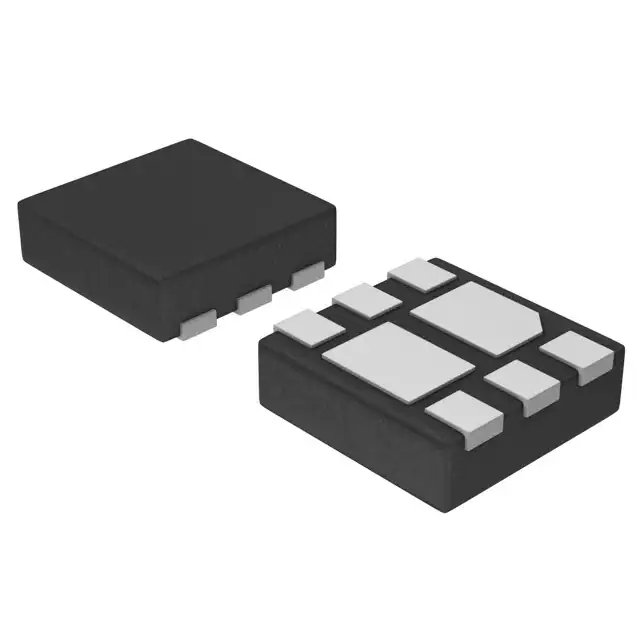

The NTLUD3A50PZTAG is a dual P-Channel power MOSFET produced by onsemi. This component is designed for high-performance applications requiring low on-resistance and high current handling. It features a compact UDFN6 package with exposed drain pads, which enhances thermal conduction and saves board space. The MOSFET is optimized for power management in portable products such as cell phones, personal media players (PMP), digital still cameras (DSC), GPS devices, and other similar applications.
Key Specifications
| Category | Value |
|---|---|
| Manufacturer | ON Semiconductor |
| Lifecycle Status | ACTIVE |
| Mounting Type | Surface Mount |
| Package / Case | 6-UDFN Exposed Pad |
| Number of Pins | 6 Pins |
| Number of Elements | 2 Elements (Dual) |
| Drain to Source Voltage (Vdss) | -20 V |
| Gate to Source Voltage (Vgs) | ±8.0 V |
| Continuous Drain Current (ID) | -4.4 A (at TA = 25°C), -3.2 A (at TA = 85°C) |
| Power Dissipation | 1.4 W (steady state at TA = 25°C), 2.2 W (for t ≤ 5 s at TA = 25°C) |
| Turn On Delay Time | 7 ns |
| Turn Off Delay Time | 39 ns |
| Rds On (Max) @ Id, Vgs | 50 mΩ @ 4 A, 4.5 V |
| Gate Threshold Voltage (Vgs(th)) | -1 V @ 250 μA |
| Input Capacitance (Ciss) (Max) @ Vds | 920 pF @ 15 V |
| Gate Charge (Qg) (Max) @ Vgs | 10.4 nC @ 4.5 V |
| Operating Temperature | -55°C to 150°C |
| RoHS Status | ROHS3 Compliant |
| Lead Free | Lead Free |
Key Features
- Compact UDFN6 package with exposed drain pads for excellent thermal conduction and board space saving.
- Low Rds(on) for efficient power management.
- Logic Level Gate for easy integration with logic circuits.
- Pb-Free, Halogen Free/BFR Free, and RoHS Compliant.
- High side load switch, reverse current protection, and battery switch capabilities.
- Optimized for power management applications in portable products.
Applications
- High side load switching.
- Reverse current protection.
- Battery switching.
- Power management in portable products such as cell phones, PMP, DSC, GPS, and others.
Q & A
- What is the package type of the NTLUD3A50PZTAG MOSFET?
The NTLUD3A50PZTAG is packaged in a 6-UDFN Exposed Pad package.
- What is the maximum drain-to-source voltage (Vdss) of the NTLUD3A50PZTAG?
The maximum drain-to-source voltage (Vdss) is -20 V.
- What is the continuous drain current (ID) rating at 25°C and 85°C?
The continuous drain current (ID) is -4.4 A at 25°C and -3.2 A at 85°C.
- What is the maximum power dissipation of the NTLUD3A50PZTAG?
The maximum power dissipation is 1.4 W (steady state at TA = 25°C) and 2.2 W (for t ≤ 5 s at TA = 25°C).
- What are the turn-on and turn-off delay times of the NTLUD3A50PZTAG?
The turn-on delay time is 7 ns, and the turn-off delay time is 39 ns.
- What is the Rds(on) of the NTLUD3A50PZTAG at 4 A and 4.5 V?
The Rds(on) is 50 mΩ at 4 A and 4.5 V.
- What is the gate threshold voltage (Vgs(th)) of the NTLUD3A50PZTAG?
The gate threshold voltage (Vgs(th)) is -1 V at 250 μA.
- Is the NTLUD3A50PZTAG RoHS compliant?
Yes, the NTLUD3A50PZTAG is RoHS3 Compliant and lead-free.
- What are the typical applications of the NTLUD3A50PZTAG?
The NTLUD3A50PZTAG is typically used in high side load switching, reverse current protection, battery switching, and power management in portable products.
- What is the operating temperature range of the NTLUD3A50PZTAG?
The operating temperature range is -55°C to 150°C.
- What is the input capacitance (Ciss) of the NTLUD3A50PZTAG at 15 V?
The input capacitance (Ciss) is 920 pF at 15 V.
