MMBT2222A-ON
  • Share:

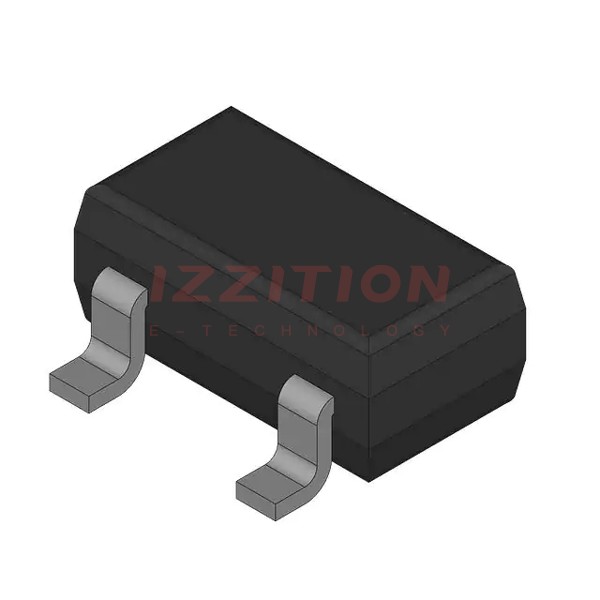

onsemi MMBT2222A-ON

Manufacturer No:
MMBT2222A-ON
Manufacturer:
onsemi
Package:
Bulk
Description:
1A, 40V, NPN, TO-236AA
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MMBT2222A is a general-purpose NPN bipolar junction transistor (BJT) manufactured by onsemi. It is designed for use in a variety of applications, including medium power amplification and switching. The transistor features an epitaxial planar die construction and is packaged in a SOT-23 case, making it suitable for compact and efficient designs. It is also lead-free and fully RoHS compliant, ensuring environmental sustainability.

Key Specifications

CharacteristicSymbolMinMaxUnit
Collector-Emitter Breakdown VoltageV(BR)CEO40-Vdc
Collector-Base Breakdown VoltageV(BR)CBO75-Vdc
Emitter-Base Breakdown VoltageV(BR)EBO5.06.0Vdc
Collector CurrentIC-1.0A
Operating and Storage Junction Temperature RangeTJ, Tstg-55150°C
Total Device DissipationPD-350mW
Thermal Resistance, Junction to AmbientRθJA-357°C/W
DC Current Gain (hFE) at IC = 10 mA, VCE = 10 VdchFE75--
Collector-Emitter Saturation Voltage at IC = 150 mA, IB = 15 mAVCE(sat)-0.4Vdc
Base-Emitter Saturation Voltage at IC = 150 mA, IB = 15 mAVBE(sat)-1.3Vdc

Key Features

  • Epitaxial planar die construction for reliable performance.
  • Low saturation voltage (VCE(sat) < 300mV at IC = 150mA) for efficient operation.
  • High DC current gain (hFE up to 75 at IC = 10mA, VCE = 10Vdc).
  • Collector current up to 1.0 A, suitable for medium power applications.
  • Totally lead-free and fully RoHS compliant, ensuring environmental sustainability.
  • Halogen- and antimony-free, making it a “green” device.
  • Complementary PNP type: MMBT2907A.

Applications

The MMBT2222A is ideal for various applications, including:

  • Medium power amplification.
  • General-purpose switching.
  • Driver stages of AF amplifiers.
  • Automotive applications (AEC-Q101 qualified for specific models).

Q & A

  1. What is the maximum collector-emitter breakdown voltage of the MMBT2222A?
    The maximum collector-emitter breakdown voltage is 40 Vdc.
  2. What is the maximum collector current rating of the MMBT2222A?
    The maximum collector current rating is 1.0 A.
  3. What is the typical saturation voltage (VCE(sat)) of the MMBT2222A?
    The typical saturation voltage (VCE(sat)) is less than 300mV at IC = 150mA.
  4. Is the MMBT2222A lead-free and RoHS compliant?
    Yes, the MMBT2222A is totally lead-free and fully RoHS compliant.
  5. What is the thermal resistance (RθJA) of the MMBT2222A in a SOT-23 package?
    The thermal resistance (RθJA) is 357 °C/W.
  6. What are the operating and storage temperature ranges for the MMBT2222A?
    The operating and storage junction temperature range is -55 to 150 °C.
  7. Is the MMBT2222A suitable for automotive applications?
    Yes, specific models of the MMBT2222A are AEC-Q101 qualified and suitable for automotive applications.
  8. What is the complementary PNP type of the MMBT2222A?
    The complementary PNP type is the MMBT2907A.
  9. What package type is the MMBT2222A available in?
    The MMBT2222A is available in a SOT-23 package.
  10. What is the typical base-emitter saturation voltage (VBE(sat)) of the MMBT2222A?
    The typical base-emitter saturation voltage (VBE(sat)) is 1.3 Vdc at IC = 150mA and IB = 15mA.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
