Overview

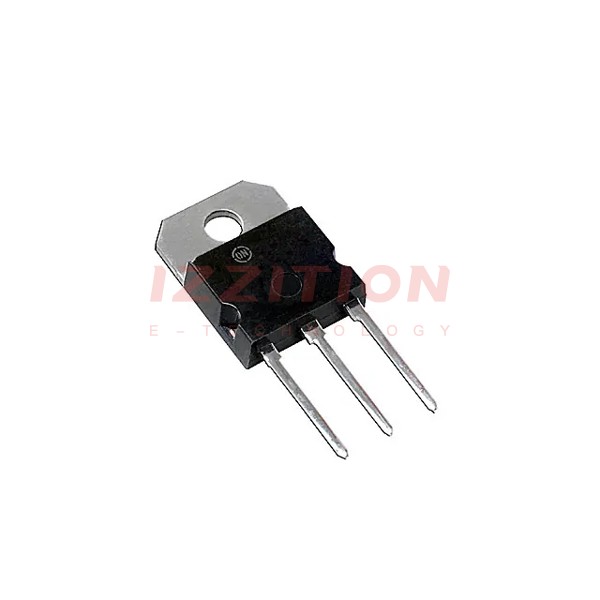

The MJH11022 is a Darlington Bipolar Power Transistor produced by onsemi, designed for general-purpose amplification, low-frequency switching, and motor control applications. This NPN transistor is part of a family of complementary devices that include the MJH11018, MJH11020, and MJH11022 (NPN) and the MJH11017, MJH11019, and MJH11021 (PNP). The MJH11022 is known for its high DC current gain and robust electrical characteristics, making it suitable for a variety of power management and control tasks.
Key Specifications
| Characteristic | Symbol | Min/Typ/Max | Unit |
|---|---|---|---|
| Collector-Emitter Voltage | VCEO | 250 | Vdc |
| Collector-Base Voltage | VCB | 250 | Vdc |
| Emitter-Base Voltage | VEB | 5.0 | Vdc |
| Collector Current - Continuous | IC | 15 | A |
| Collector Current - Peak | IC | 30 | A |
| Base Current | IB | 0.5 | A |
| Total Device Dissipation @ TC = 25°C | PD | 150 | W |
| Operating and Storage Junction Temperature Range | TJ, Tstg | -65 to +150 | °C |
| Thermal Resistance, Junction-to-Case | RJC | 0.83 | °C/W |
| DC Current Gain @ 10 Adc | hFE | 400 Min | |
| Collector-Emitter Saturation Voltage @ IC = 5.0 A | VCE(sat) | 1.2 V Typ | |
| Collector-Emitter Saturation Voltage @ IC = 10 A | VCE(sat) | 1.8 V Typ |
Key Features
- High DC Current Gain: Minimum of 400 at 10 Adc, ensuring high amplification efficiency.
- Collector-Emitter Sustaining Voltage: Up to 250 Vdc, providing robust voltage handling capabilities.
- Low Collector-Emitter Saturation Voltage: Typical values of 1.2 V at 5.0 A and 1.8 V at 10 A, reducing power losses.
- Monolithic Construction: Ensures reliability and stability in operation.
- Pb-Free Packages: Compliant with environmental regulations and suitable for modern electronic designs).
Applications
- General Purpose Amplifiers: Suitable for a wide range of amplification tasks due to its high current gain and low saturation voltage).
- Low Frequency Switching: Ideal for applications requiring reliable switching at low frequencies).
- Motor Control: Used in motor control circuits due to its ability to handle high currents and voltages).
Q & A
- What is the maximum collector-emitter voltage for the MJH11022?
The maximum collector-emitter voltage (VCEO) for the MJH11022 is 250 Vdc).
- What is the continuous collector current rating of the MJH11022?
The continuous collector current (IC) rating is 15 A).
- What is the typical collector-emitter saturation voltage at 10 A?
The typical collector-emitter saturation voltage (VCE(sat)) at 10 A is 1.8 V).
- Is the MJH11022 available in Pb-Free packages?
- What is the thermal resistance, junction-to-case (RJC) for the MJH11022?
The thermal resistance, junction-to-case (RJC) is 0.83 °C/W).
- What are the operating and storage junction temperature ranges for the MJH11022?
The operating and storage junction temperature ranges are -65 to +150 °C).
- What is the minimum DC current gain (hFE) for the MJH11022?
The minimum DC current gain (hFE) is 400 at 10 Adc).
- Can the MJH11022 be used for motor control applications?
- What is the maximum base current rating for the MJH11022?
The maximum base current (IB) rating is 0.5 A).
- Is the MJH11022 part of a family of complementary devices?
