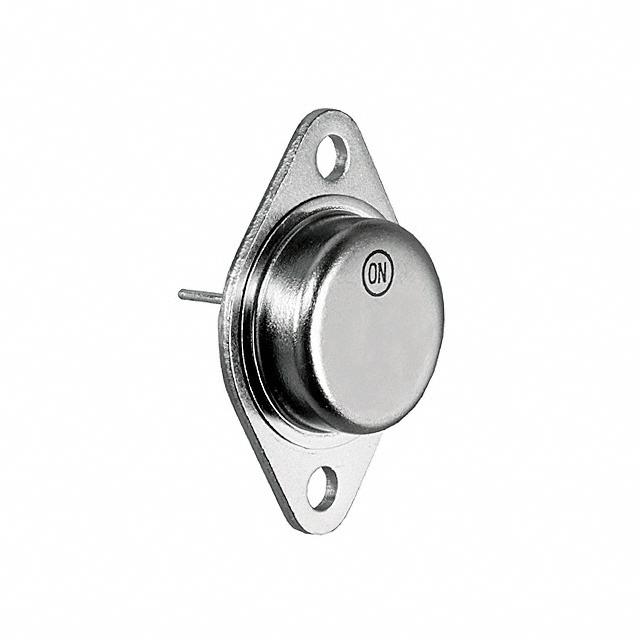

onsemi MJ21195G

Manufacturer No:
MJ21195G
Manufacturer:
onsemi
Package:
Tray
Description:
TRANS PNP 250V 16A TO204
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MJ21195G is a PNP silicon power transistor manufactured by onsemi. This transistor is designed utilizing Perforated Emitter technology, making it suitable for high power audio output, disk head positioners, and linear applications. It is part of a complementary pair with the MJ21196G NPN transistor. The MJ21195G is known for its high DC current gain, excellent gain linearity, and high Safe Operating Area (SOA), ensuring reliable performance in demanding environments. It is also Pb-free and RoHS compliant, aligning with modern environmental standards.

Key Specifications

Rating Symbol Value Unit
Collector-Emitter Voltage VCEO 250 Vdc
Collector-Base Voltage VCBO 400 Vdc
Emitter-Base Voltage VEBO 5 Vdc
Collector Current - Continuous IC 16 Adc
Collector Current - Peak ICM 30 Adc
Base Current - Continuous IB 5 Adc
Total Device Dissipation @ TC = 25°C PD 250 W
Operating and Storage Junction Temperature Range TJ, Tstg −65 to +200 °C
Thermal Resistance, Junction-to-Case RθJC 0.7 °C/W

Key Features

  • Total Harmonic Distortion Characterized
  • High DC Current Gain
  • Excellent Gain Linearity
  • High Safe Operating Area (SOA)
  • Pb-free and RoHS Compliant

Applications

  • High Power Audio Output
  • Disk Head Positioners
  • Linear Applications

Q & A

  1. What is the collector-emitter voltage rating of the MJ21195G transistor?

    The collector-emitter voltage rating of the MJ21195G transistor is 250 Vdc.

  2. What is the maximum continuous collector current for the MJ21195G?

    The maximum continuous collector current for the MJ21195G is 16 Adc.

  3. What is the thermal resistance from junction to case for the MJ21195G?

    The thermal resistance from junction to case for the MJ21195G is 0.7 °C/W.

  4. Is the MJ21195G Pb-free and RoHS compliant?

    Yes, the MJ21195G is Pb-free and RoHS compliant.

  5. What are the typical applications of the MJ21195G transistor?

    The MJ21195G transistor is typically used in high power audio output, disk head positioners, and linear applications.

  6. What is the operating and storage junction temperature range for the MJ21195G?

    The operating and storage junction temperature range for the MJ21195G is −65 to +200 °C.

  7. What is the maximum base current for the MJ21195G?

    The maximum base current for the MJ21195G is 5 Adc.

  8. What is the total device dissipation at TC = 25°C for the MJ21195G?

    The total device dissipation at TC = 25°C for the MJ21195G is 250 W.

  9. Does the MJ21195G have excellent gain linearity?

    Yes, the MJ21195G has excellent gain linearity.

  10. What is the collector-emitter saturation voltage for the MJ21195G?

    The collector-emitter saturation voltage for the MJ21195G is typically 1.4 Vdc at IC = 8 Adc and IB = 0.8 Adc.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):16 A
Voltage - Collector Emitter Breakdown (Max):250 V
Vce Saturation (Max) @ Ib, Ic:4V @ 3.2A, 16A
Current - Collector Cutoff (Max):100µA
DC Current Gain (hFE) (Min) @ Ic, Vce:25 @ 8A, 5V
Power - Max:250 W
Frequency - Transition:4MHz
Operating Temperature:-65°C ~ 200°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-204AA, TO-3
Supplier Device Package:TO-204 (TO-3)
