MJ21193G
  • Share:

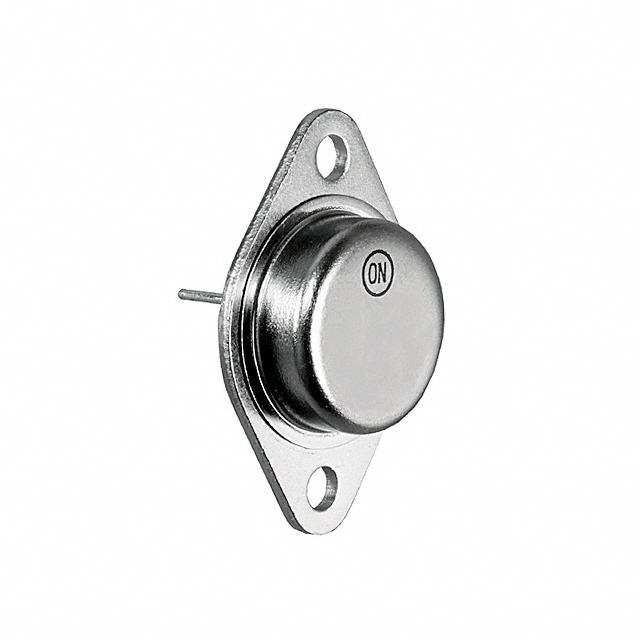

onsemi MJ21193G

Manufacturer No:
MJ21193G
Manufacturer:
onsemi
Package:
Tray
Description:
TRANS PNP 250V 16A TO204
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MJ21193G is a high-power PNP silicon transistor produced by onsemi. This transistor is specifically designed for high-power audio output, disk head positioners, and various linear applications. It utilizes Perforated Emitter technology, which enhances its performance in high-current and high-voltage environments. The MJ21193G is part of a complementary pair with the NPN transistor MJ21194, making it suitable for a wide range of power amplification needs.

Key Specifications

Parameter Symbol Value Unit
Collector-Emitter Voltage VCEO 250 Vdc
Collector-Base Voltage VCBO 400 Vdc
Emitter-Base Voltage VEBO 5 Vdc
Collector Current - Continuous IC 16 A
Collector Current - Peak ICM 30 A
Base Current - Continuous IB 5 A
Total Power Dissipation PD 250 W
Operating and Storage Junction Temperature Range TJ, Tstg -65 to +200 °C
Transition Frequency ft 4 MHz
Collector Capacitance Cob 500 pF
Forward Current Transfer Ratio (hFE) Min hFE 25
Package Type TO-3

Key Features

  • Total Harmonic Distortion Characterized: Ensures high fidelity in audio applications.
  • High DC Current Gain: hFE = 25 Min @ IC = 8 Adc, providing excellent amplification capabilities.
  • Excellent Gain Linearity: Maintains consistent performance across a range of operating conditions.
  • High Safe Operating Area (SOA): 2.5 A, 80 V, 1 Second, ensuring robust operation under various loads.
  • Pb-Free Packages: Compliant with RoHS standards, making it environmentally friendly.

Applications

  • High Power Audio Output: Suitable for amplifiers and audio systems requiring high current and voltage handling.
  • Disk Head Positioners: Used in disk drive systems for precise positioning.
  • Linear Applications: General-purpose linear amplification in various electronic circuits.

Q & A

  1. What is the maximum collector-emitter voltage of the MJ21193G transistor?

    The maximum collector-emitter voltage (VCEO) is 250 Vdc.

  2. What is the continuous collector current rating of the MJ21193G?

    The continuous collector current (IC) is 16 A.

  3. What is the transition frequency (ft) of the MJ21193G transistor?

    The transition frequency (ft) is 4 MHz.

  4. What is the minimum forward current transfer ratio (hFE) of the MJ21193G?

    The minimum forward current transfer ratio (hFE) is 25 at IC = 8 Adc.

  5. What is the maximum operating junction temperature of the MJ21193G?

    The maximum operating junction temperature (TJ) is 200°C.

  6. Is the MJ21193G transistor RoHS compliant?

    Yes, the MJ21193G is Pb-Free and RoHS compliant.

  7. What is the typical collector-emitter saturation voltage (VCE(sat)) of the MJ21193G?

    The typical collector-emitter saturation voltage (VCE(sat)) is 1.4 V at IC = 8 Adc and IB = 0.8 Adc.

  8. What are the common applications of the MJ21193G transistor?

    Common applications include high power audio output, disk head positioners, and other linear applications.

  9. What is the package type of the MJ21193G transistor?

    The package type is TO-3.

  10. Does the MJ21193G have a complementary NPN transistor?

    Yes, the complementary NPN transistor is the MJ21194.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):16 A
Voltage - Collector Emitter Breakdown (Max):250 V
Vce Saturation (Max) @ Ib, Ic:4V @ 3.2A, 16A
Current - Collector Cutoff (Max):100µA
DC Current Gain (hFE) (Min) @ Ic, Vce:25 @ 8A, 5V
Power - Max:250 W
Frequency - Transition:4MHz
Operating Temperature:-65°C ~ 200°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-204AA, TO-3
Supplier Device Package:TO-204 (TO-3)
0 Remaining View Similar

In Stock

$8.60
109

Please send RFQ , we will respond immediately.

Same Series
MJ21194G
MJ21194G
TRANS NPN 250V 16A TO204

Similar Products

Part Number MJ21193G MJ21195G MJ21194G MJ21196G
Manufacturer onsemi onsemi onsemi onsemi
Product Status Active Active Active Active
Transistor Type PNP PNP NPN NPN
Current - Collector (Ic) (Max) 16 A 16 A 16 A 16 A
Voltage - Collector Emitter Breakdown (Max) 250 V 250 V 250 V 250 V
Vce Saturation (Max) @ Ib, Ic 4V @ 3.2A, 16A 4V @ 3.2A, 16A 4V @ 3.2A, 16A 4V @ 3.2A, 16A
Current - Collector Cutoff (Max) 100µA 100µA 100µA 100µA
DC Current Gain (hFE) (Min) @ Ic, Vce 25 @ 8A, 5V 25 @ 8A, 5V 25 @ 8A, 5V 25 @ 8A, 5V
Power - Max 250 W 250 W 250 W 250 W
Frequency - Transition 4MHz 4MHz 4MHz 4MHz
Operating Temperature -65°C ~ 200°C (TJ) -65°C ~ 200°C (TJ) -65°C ~ 200°C (TJ) -65°C ~ 200°C (TJ)
Mounting Type Through Hole Through Hole Through Hole Through Hole
Package / Case TO-204AA, TO-3 TO-204AA, TO-3 TO-204AA, TO-3 TO-204AA, TO-3
Supplier Device Package TO-204 (TO-3) TO-204 (TO-3) TO-204 (TO-3) TO-204 (TO-3)
