BD681STU-ON
  • Share:

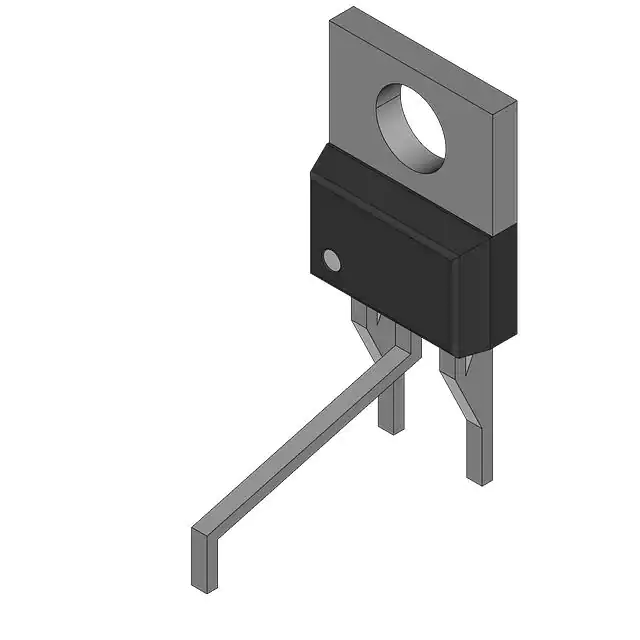

onsemi BD681STU-ON

Manufacturer No:
BD681STU-ON
Manufacturer:
onsemi
Package:
Bulk
Description:
TRANS NPN DARL 100V 4A TO126-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BD681STU-ON is a Medium Power NPN Darlington Bipolar Power Transistor manufactured by onsemi. This transistor is designed for use as output devices in complementary general-purpose amplifier applications. It features a monolithic construction and is part of a series that includes complementary transistors such as BD676, BD678, BD680, and BD682. The BD681 is also equivalent to other transistors like MJE 800, 801, 802, and 803.

Key Specifications

Parameter Value Parameter Value
Manufacturer onsemi Transistor Type NPN - Darlington
Current - Collector (Ic) (Max) 4 A Voltage - Collector Emitter Breakdown (Max) 100 V
Vce Saturation (Max) @ Ib, Ic 2.5V @ 30mA, 1.5A Current - Collector Cutoff (Max) 500µA
DC Current Gain (hFE) (Min) @ Ic, Vce 750 @ 1.5A, 3V Power - Max 40 W
Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole
Package / Case TO-225AA, TO-126-3

Key Features

  • High DC Current Gain (hFE) of 750 (Min) at IC = 1.5A and VCE = 3V.
  • Monolithic construction for reliability and performance.
  • Pb-Free packages available, ensuring compliance with RoHS standards.
  • Complementary to other transistors in the series, such as BD676, BD678, BD680, and BD682.
  • Equivalent to MJE 800, 801, 802, and 803 transistors.
  • Collector-Emitter Saturation Voltage (Vce(sat)) of 2.5V at IC = 1.5A and IB = 30mA.

Applications

The BD681STU-ON is suitable for medium power linear and switching applications. It is commonly used as output devices in complementary general-purpose amplifier circuits. The transistor's high current gain and robust construction make it ideal for various power management and control applications.

Q & A

  1. Q: What is the maximum collector current of the BD681STU-ON transistor?

    A: The maximum collector current (Ic) of the BD681STU-ON transistor is 4 A.

  2. Q: What is the collector-emitter breakdown voltage of the BD681STU-ON?

    A: The collector-emitter breakdown voltage (Vceo) of the BD681STU-ON is 100 V.

  3. Q: What is the DC current gain (hFE) of the BD681STU-ON transistor?

    A: The minimum DC current gain (hFE) of the BD681STU-ON transistor is 750 at IC = 1.5A and VCE = 3V.

  4. Q: What are the operating temperature ranges for the BD681STU-ON transistor?

    A: The operating temperature range for the BD681STU-ON transistor is -55°C to 150°C (TJ).

  5. Q: What packages are available for the BD681STU-ON transistor?

    A: The BD681STU-ON transistor is available in TO-225AA and TO-126-3 packages.

  6. Q: Is the BD681STU-ON transistor RoHS compliant?

    A: Yes, the BD681STU-ON transistor is RoHS compliant and available in Pb-Free packages.

  7. Q: What is the collector-emitter saturation voltage (Vce(sat)) of the BD681STU-ON transistor?

    A: The collector-emitter saturation voltage (Vce(sat)) of the BD681STU-ON transistor is 2.5V at IC = 1.5A and IB = 30mA.

  8. Q: What is the maximum power dissipation of the BD681STU-ON transistor?

    A: The maximum power dissipation of the BD681STU-ON transistor is 40 W.

  9. Q: How can I ensure the authenticity of the BD681STU-ON transistor from onsemi?

    A: Ensure you purchase from authorized distributors who rigorously test and verify the credentials of original onsemi manufacturers and authorized agents.

  10. Q: What is the warranty period for the BD681STU-ON transistor?

    A: The warranty period for the BD681STU-ON transistor is typically 1 year, covering defects in materials and workmanship under normal use.

  11. Q: Where can I find detailed information about the BD681STU-ON transistor, such as application notes and datasheets?

    A: Detailed information, including datasheets and application notes, can be found on the onsemi website or through authorized distributors like Ovaga and Heisener.

Product Attributes

Transistor Type:NPN - Darlington
Current - Collector (Ic) (Max):4 A
Voltage - Collector Emitter Breakdown (Max):100 V
Vce Saturation (Max) @ Ib, Ic:2.5V @ 30mA, 1.5A
Current - Collector Cutoff (Max):500µA
DC Current Gain (hFE) (Min) @ Ic, Vce:750 @ 1.5A, 3V
Power - Max:40 W
Frequency - Transition:-
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-225AA, TO-126-3
Supplier Device Package:TO-126-3
0 Remaining View Similar

In Stock

$0.26
601

Please send RFQ , we will respond immediately.
