BD677AS-ON
  • Share:

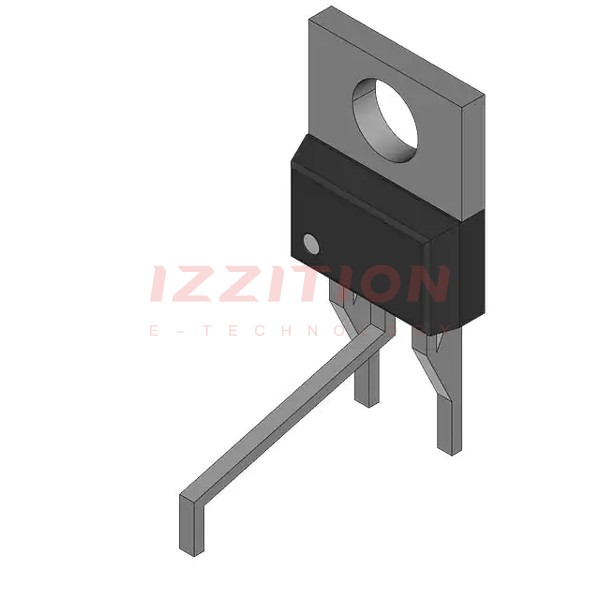

onsemi BD677AS-ON

Manufacturer No:
BD677AS-ON
Manufacturer:
onsemi
Package:
Bulk
Description:
TRANS NPN DARL 60V 4A TO126-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BD677AS-ON, produced by onsemi, is a Medium Power NPN Darlington Bipolar Power Transistor. This transistor is designed for use as output devices in complementary general-purpose amplifier applications. It is part of a series of Darlington transistors known for their high DC current gain and monolithic construction. Although the BD677AS-ON is currently obsolete, it remains relevant for legacy systems and maintenance purposes.

Key Specifications

Parameter Value Unit
Collector-Base Voltage (VCBO) 60 V
Collector-Emitter Voltage (VCEO) 60 V
Emitter-Base Voltage (VEBO) 5 V
Collector Current (IC) 4 A
Collector Peak Current (ICM) 6 A
Base Current (IB) 0.1 A
Total Dissipation at Tcase ≤25°C (PTOT) 40 W
Storage Temperature (Tstg) -65 to 150 °C
Max. Operating Junction Temperature (Tj) 150 °C
DC Current Gain (hFE) @ IC = 2 A, VCE = 3 V 750 (Min)
Collector-Emitter Saturation Voltage (VCE(sat)) @ IC = 2 A, IB = 40 mA 2.8 V
Base-Emitter Voltage (VBE) @ IC = 2 A, VCE = 3 V 2.5 V
Package Type TO-126-3

Key Features

  • High DC Current Gain: The BD677AS-ON has a high DC current gain (hFE) of 750 (Min) at IC = 2 A and VCE = 3 V.
  • Monolithic Construction: The transistor features a monolithic Darlington configuration, which includes an integrated antiparallel collector-emitter diode.
  • Good hFE Linearity: It exhibits good linearity in DC current gain, making it suitable for various applications.
  • High fT Frequency: The transistor has a high fT frequency, enhancing its performance in switching applications.
  • Pb-Free Packages Available: The BD677AS-ON is available in lead-free packages, meeting environmental requirements.

Applications

  • Linear and Switching Industrial Equipment: The BD677AS-ON is used in medium power linear and switching industrial equipment due to its robust specifications and reliability.
  • General-Purpose Amplifier Applications: It is suitable for use as output devices in complementary general-purpose amplifier applications.

Q & A

  1. What is the collector-emitter voltage (VCEO) of the BD677AS-ON?

    The collector-emitter voltage (VCEO) of the BD677AS-ON is 60 V.

  2. What is the maximum collector current (IC) for the BD677AS-ON?

    The maximum collector current (IC) for the BD677AS-ON is 4 A.

  3. What is the DC current gain (hFE) of the BD677AS-ON at IC = 2 A and VCE = 3 V?

    The DC current gain (hFE) of the BD677AS-ON at IC = 2 A and VCE = 3 V is 750 (Min).

  4. What is the collector-emitter saturation voltage (VCE(sat)) of the BD677AS-ON at IC = 2 A and IB = 40 mA?

    The collector-emitter saturation voltage (VCE(sat)) of the BD677AS-ON at IC = 2 A and IB = 40 mA is 2.8 V.

  5. What is the base-emitter voltage (VBE) of the BD677AS-ON at IC = 2 A and VCE = 3 V?

    The base-emitter voltage (VBE) of the BD677AS-ON at IC = 2 A and VCE = 3 V is 2.5 V.

  6. What package type is the BD677AS-ON available in?

    The BD677AS-ON is available in the TO-126-3 package type.

  7. Is the BD677AS-ON still in production?

    No, the BD677AS-ON is currently obsolete.

  8. What are the complementary PNP types for the BD677AS-ON?

    The complementary PNP types for the BD677AS-ON are BD678, BD678A, BD680, BD680A, and BD682.

  9. What is the maximum operating junction temperature (Tj) for the BD677AS-ON?

    The maximum operating junction temperature (Tj) for the BD677AS-ON is 150°C.

  10. What is the storage temperature range for the BD677AS-ON?

    The storage temperature range for the BD677AS-ON is -65 to 150°C.

Product Attributes

Transistor Type:NPN - Darlington
Current - Collector (Ic) (Max):4 A
Voltage - Collector Emitter Breakdown (Max):60 V
Vce Saturation (Max) @ Ib, Ic:2.8V @ 40mA, 2A
Current - Collector Cutoff (Max):500µA
DC Current Gain (hFE) (Min) @ Ic, Vce:750 @ 2A, 3V
Power - Max:40 W
Frequency - Transition:-
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-225AA, TO-126-3
Supplier Device Package:TO-126-3
0 Remaining View Similar

In Stock

-
221

Please send RFQ , we will respond immediately.

Same Series
DD15S20LV3S/AA
DD15S20LV3S/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S20Z00
DD15S20Z00
CONN D-SUB HD RCPT 15P SLDR CUP
CBC13W3S10HE2X/AA
CBC13W3S10HE2X/AA
CONN D-SUB RCPT 13POS CRIMP
DD26S2S00X
DD26S2S00X
CONN D-SUB HD RCPT 26P SLDR CUP
DD15S20JT2S
DD15S20JT2S
CONN D-SUB HD RCPT 15P SLDR CUP
DD26S200TX
DD26S200TX
CONN D-SUB HD RCPT 26P SLDR CUP
DD26M20HE0/AA
DD26M20HE0/AA
CONN D-SUB HD PLUG 26P SLDR CUP
DD26S2F00X
DD26S2F00X
CONN D-SUB HD RCPT 26P SLDR CUP
DD44S32S00X/AA
DD44S32S00X/AA
CONN D-SUB HD RCPT 44P VERT SLDR
DD44S3200TX
DD44S3200TX
CONN D-SUB HD RCPT 44P VERT SLDR
DD44S3200T20
DD44S3200T20
CONN D-SUB HD RCPT 44P VERT SLDR
DD26S20J0X
DD26S20J0X
CONN D-SUB HD RCPT 26P SLDR CUP

Similar Products

Part Number BD677AS-ON BD675AS-ON
Manufacturer onsemi onsemi
Product Status Active Active
Transistor Type NPN - Darlington NPN - Darlington
Current - Collector (Ic) (Max) 4 A 4 A
Voltage - Collector Emitter Breakdown (Max) 60 V 45 V
Vce Saturation (Max) @ Ib, Ic 2.8V @ 40mA, 2A 2.8V @ 40mA, 2A
Current - Collector Cutoff (Max) 500µA 500µA
DC Current Gain (hFE) (Min) @ Ic, Vce 750 @ 2A, 3V 750 @ 2A, 3V
Power - Max 40 W 40 W
Frequency - Transition - -
Operating Temperature 150°C (TJ) 150°C (TJ)
Mounting Type Through Hole Through Hole
Package / Case TO-225AA, TO-126-3 TO-225AA, TO-126-3
Supplier Device Package TO-126-3 TO-126-3
