Overview

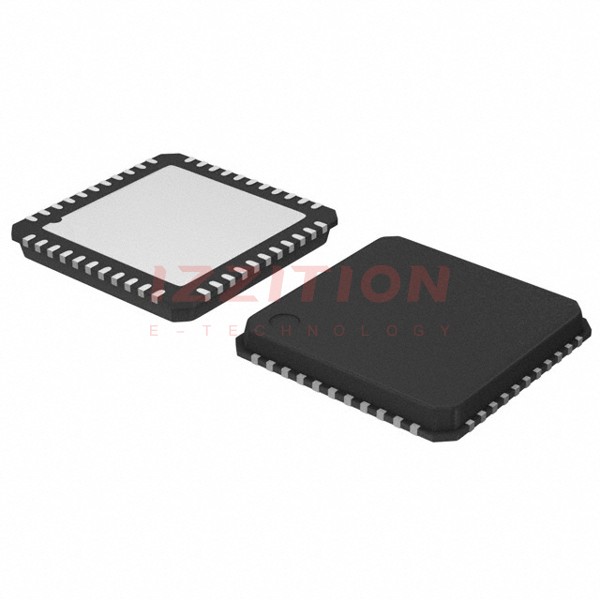

The AMIS-49200-XTP, produced by onsemi, is a Fieldbus MAU (Media Access Unit) transceiver chip designed for low-speed FOUNDATION Fieldbus® and Profibus® PA devices. It is a near pin-for-pin replacement for the Yokogawa µSAA22Q MAU, allowing for easy integration without requiring board changes. The AMIS-49200-XTP is available in a 44-pin LQFP package and is compatible with IEC 1158-2 and ISA 50.02 standards.
Key Specifications
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Analog Supply Voltage | VCC | 4.75 | 5 | 6.2 | V |
| Digital Supply Voltage | VDD | 2.7 | 3 | VCC - 1.1 | V |
| Current Consumption | ICC | - | 500 | 800 | µA |
| Data Rate | - | - | 31.25 | - | kbps |
| Number of Drivers | - | - | 1 | - | - |
| Number of Receivers | - | - | 1 | - | - |
| Operating Temperature | TOperating | -40 | - | 85 | °C |
Key Features
- All node power can be supplied by the bus via the AMIS-49200-XTP.
- Current consumption of 500 µA (typical).
- Shunt regulator and series regulator for voltage regulation.
- Voltage reference (internal only).
- Bandpass filter consisting of a high-pass and a low-pass filter.
- Slew rate control and segment current control.
- Low voltage detection and carrier detect features.
- MDS-interface for decoding input signals and generating internal control signals.
- POL pin to select the polarity of TxE (transmit enable) signal.
Applications
- Process automation.
- Pressure and temperature monitoring.
- Paper manufacturing.
- Control or flow metering devices for oil refineries.
- Natural gas production.
Q & A
- What is the AMIS-49200-XTP used for?
The AMIS-49200-XTP is a transceiver chip for low-speed FOUNDATION Fieldbus® and Profibus® PA devices.
- What package type is the AMIS-49200-XTP available in?
The AMIS-49200-XTP is available in a 44-pin LQFP package.
- What are the typical current consumption and data rate of the AMIS-49200-XTP?
The typical current consumption is 500 µA, and the data rate is 31.25 kbps.
- Can the AMIS-49200-XTP be powered by the bus?
- What are the key features of the AMIS-49200-XTP's power supply blocks?
The key features include a shunt regulator, series regulator, and voltage reference (internal only).
- What is the purpose of the POL pin in the AMIS-49200-XTP?
The POL pin is used to select the polarity of the TxE (transmit enable) signal.
- What standards is the AMIS-49200-XTP compatible with?
The AMIS-49200-XTP is compatible with IEC 1158-2 and ISA 50.02 standards.
- What are some common applications of the AMIS-49200-XTP?
Common applications include process automation, pressure and temperature monitoring, paper manufacturing, and control or flow metering devices for oil refineries and natural gas production.
- How does the bandpass filter in the AMIS-49200-XTP work?
The bandpass filter consists of a high-pass and a low-pass filter, each having two poles, and is made up of internal resistors and external capacitors.
- What is the operating temperature range of the AMIS-49200-XTP?
The operating temperature range is from -40°C to 85°C.
