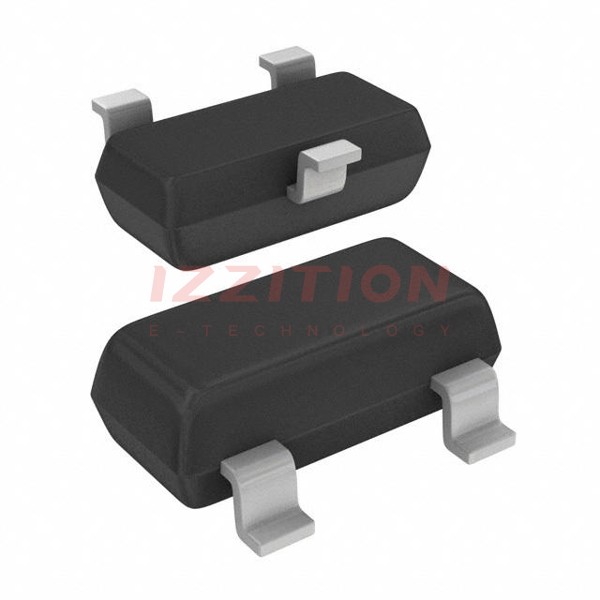

NXP USA Inc. PMBT5401,235

Manufacturer No:
PMBT5401,235
Manufacturer:
NXP USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS PNP 150V 0.3A SOT23
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PMBT5401,235 is a PNP high-voltage transistor manufactured by NXP USA Inc. This transistor is packaged in a SOT23 (TO-236AB) surface mount package, making it suitable for a variety of applications where space is limited. It is designed to handle high voltages and moderate currents, making it a versatile component in both industrial and consumer electronics.

Key Specifications

ParameterValue
Transistor TypePNP
Maximum Collector-Emitter Voltage (Vceo)150 V
Maximum Collector Current (Ic)300 mA
Maximum Power Dissipation (Ptot)250 mW
Transition Frequency (ft)300 MHz
Package TypeSOT23 (TO-236AB)
Mounting TypeSurface Mount

Key Features

  • High voltage capability up to 150 V
  • Low current operation with a maximum collector current of 300 mA
  • High transition frequency of 300 MHz
  • Compact SOT23 package for space-efficient designs
  • Suitable for high-frequency applications

Applications

  • Industrial electronics
  • Consumer electronics
  • Power management circuits
  • Automotive systems
  • LED lighting and control circuits

Q & A

  1. What is the maximum collector-emitter voltage of the PMBT5401,235 transistor?
    The maximum collector-emitter voltage (Vceo) is 150 V.
  2. What is the maximum collector current of the PMBT5401,235 transistor?
    The maximum collector current (Ic) is 300 mA.
  3. What is the package type of the PMBT5401,235 transistor?
    The transistor is packaged in a SOT23 (TO-236AB) surface mount package.
  4. What is the transition frequency of the PMBT5401,235 transistor?
    The transition frequency (ft) is 300 MHz.
  5. What are some common applications of the PMBT5401,235 transistor?
    Common applications include industrial electronics, consumer electronics, power management circuits, automotive systems, and LED lighting and control circuits.
  6. Is the PMBT5401,235 transistor suitable for high-frequency applications?
    Yes, the transistor is suitable for high-frequency applications due to its high transition frequency.
  7. What is the maximum power dissipation of the PMBT5401,235 transistor?
    The maximum power dissipation (Ptot) is 250 mW.
  8. What is the NPN complement of the PMBT5401,235 transistor?
    The NPN complement of the PMBT5401,235 transistor is the PMBT5550.
  9. Is the PMBT5401,235 transistor RoHS compliant?
    Yes, the transistor is RoHS compliant.
  10. Where can I find detailed specifications and datasheets for the PMBT5401,235 transistor?
    Detailed specifications and datasheets can be found on the official NXP website, as well as on distributor websites such as Digi-Key and Mouser.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):300 mA
Voltage - Collector Emitter Breakdown (Max):150 V
Vce Saturation (Max) @ Ib, Ic:500mV @ 5mA, 50mA
Current - Collector Cutoff (Max):50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:60 @ 10mA, 5V
Power - Max:250 mW
Frequency - Transition:300MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:SOT-23 (TO-236AB)
0 Remaining View Similar

In Stock

-
358

Please send RFQ , we will respond immediately.

Same Series
PMBT5401,215
PMBT5401,215
TRANS PNP 150V 0.3A SOT23

Similar Products

Part Number PMBT5401,235 PMBT4401,235 PMBT5401,215
Manufacturer NXP USA Inc. Nexperia USA Inc. NXP USA Inc.
Product Status Obsolete Active Obsolete
Transistor Type PNP NPN PNP
Current - Collector (Ic) (Max) 300 mA 600 mA 300 mA
Voltage - Collector Emitter Breakdown (Max) 150 V 40 V 150 V
Vce Saturation (Max) @ Ib, Ic 500mV @ 5mA, 50mA 750mV @ 50mA, 500mA 500mV @ 5mA, 50mA
Current - Collector Cutoff (Max) 50nA (ICBO) 50nA (ICBO) 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 60 @ 10mA, 5V 100 @ 150mA, 1V 60 @ 10mA, 5V
Power - Max 250 mW 250 mW 250 mW
Frequency - Transition 300MHz 250MHz 300MHz
Operating Temperature 150°C (TJ) 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3 TO-236-3, SC-59, SOT-23-3 TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23 (TO-236AB) TO-236AB SOT-23 (TO-236AB)
