NXP USA Inc. PHPT60415NY115

Manufacturer No:
PHPT60415NY115
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
POWER BIPOLAR TRANSISTOR NPN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

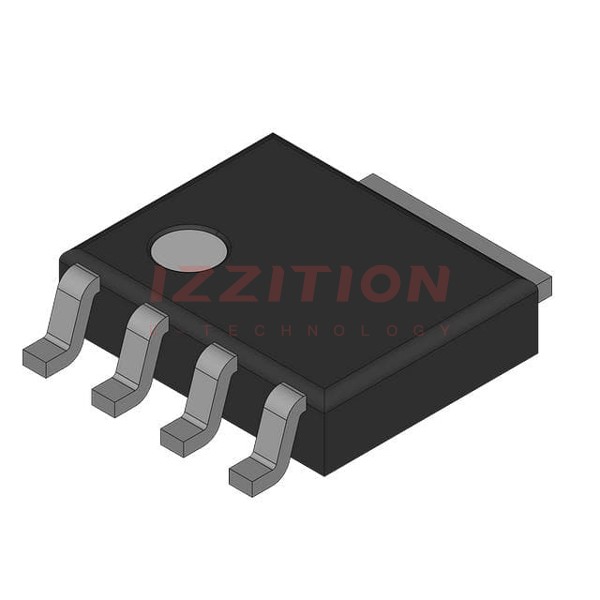

The PHPT60415NY115 is a high-power bipolar transistor produced by NXP USA Inc. This component is designed to meet the demands of various high-current and high-voltage applications. It is part of the LFPAK56 package family, known for its high thermal power dissipation capability and compact design.

Key Specifications

ParameterValue
Type NumberPHPT60415NY
PackageLFPAK56 (SOT669)
Channel TypeNPN
VCEO [max]40 V
IC [max]15 A
hFE [min]50
hFE [typ]410
Operating TemperatureUp to 175 °C
AEC-Q101 QualifiedYes

Key Features

  • High thermal power dissipation capability, making it suitable for high-temperature applications.
  • Compact LFPAK56 package reduces Printed Circuit Board (PCB) requirements compared to transistors in DPAK packages.
  • High energy efficiency due to less heat generation.
  • AEC-Q101 qualified, ensuring reliability and performance in automotive and industrial applications.

Applications

  • Power management: Suitable for load switches, linear mode voltage regulators, and other power management applications.
  • Backlighting: Can be used in backlighting applications due to its high current handling capability.
  • Motor drive: Ideal for motor drive applications requiring high current and voltage handling.
  • Relay replacement: Can replace relays in various applications due to its high reliability and performance.

Q & A

  1. What is the maximum voltage rating of the PHPT60415NY115 transistor?
    The maximum voltage rating (VCEO) is 40 V.
  2. What is the maximum current rating of the PHPT60415NY115 transistor?
    The maximum current rating (IC) is 15 A.
  3. What is the package type of the PHPT60415NY115 transistor?
    The package type is LFPAK56 (SOT669).
  4. Is the PHPT60415NY115 transistor AEC-Q101 qualified?
    Yes, it is AEC-Q101 qualified.
  5. What are some common applications of the PHPT60415NY115 transistor?
    Common applications include power management, backlighting, motor drive, and relay replacement.
  6. What is the operating temperature range of the PHPT60415NY115 transistor?
    The operating temperature range is up to 175 °C.
  7. How does the LFPAK56 package benefit PCB design?
    The LFPAK56 package reduces PCB requirements compared to transistors in DPAK packages.
  8. What is the typical hFE value of the PHPT60415NY115 transistor?
    The typical hFE value is 410.
  9. Is the PHPT60415NY115 transistor suitable for high-temperature applications?
    Yes, it is suitable for high-temperature applications due to its high thermal power dissipation capability.
  10. Where can I find more detailed specifications and datasheets for the PHPT60415NY115 transistor?
    You can find detailed specifications and datasheets on the official Nexperia or NXP websites, or through authorized distributors.
