Nexperia USA Inc. PHPT60415NY,115

Manufacturer No:
PHPT60415NY,115
Manufacturer:
Nexperia USA Inc.
Package:
Bulk
Description:
POWER BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

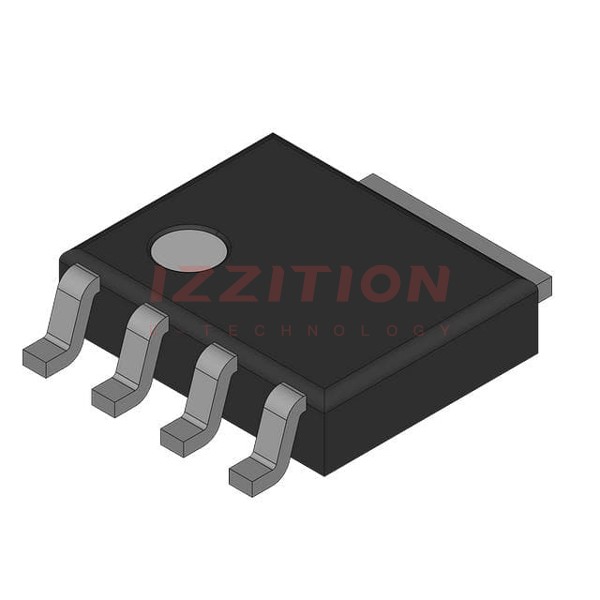

The PHPT60415NY is a high-power bipolar transistor manufactured by Nexperia USA Inc. This NPN transistor is designed for high thermal power dissipation and is suitable for high-temperature applications up to 175 °C. It is packaged in a SOT669 (LFPAK56) Surface-Mounted Device (SMD) power plastic package, which reduces the requirements for Printed Circuit Board (PCB) space compared to transistors in DPAK packages. The transistor is AEC-Q101 qualified, ensuring its reliability and performance in automotive and industrial environments.

Key Specifications

ParameterValue
Type numberPHPT60415NY
PackageSOT669 (LFPAK56)
VCEO [max]40 V
IC [max]15 A
hFE [min]50
hFE [typ]410
Channel typeNPN
Operating temperatureUp to 175 °C

Key Features

  • High thermal power dissipation capability
  • High temperature applications up to 175 °C
  • Reduced Printed Circuit Board (PCB) requirements compared to transistors in DPAK packages
  • High energy efficiency due to less heat generation
  • AEC-Q101 qualified for automotive reliability

Applications

  • Power management
  • Load switch
  • Linear mode voltage regulator
  • Backlighting applications
  • Motor drive
  • Relay replacement

Q & A

  1. What is the maximum collector-emitter voltage (VCEO) of the PHPT60415NY transistor?
    The maximum collector-emitter voltage (VCEO) is 40 V.
  2. What is the maximum collector current (IC) of the PHPT60415NY transistor?
    The maximum collector current (IC) is 15 A.
  3. What is the typical current gain (hFE) of the PHPT60415NY transistor?
    The typical current gain (hFE) is 410.
  4. What is the operating temperature range of the PHPT60415NY transistor?
    The operating temperature range is up to 175 °C.
  5. Is the PHPT60415NY transistor AEC-Q101 qualified?
    Yes, the PHPT60415NY transistor is AEC-Q101 qualified.
  6. What package type is the PHPT60415NY transistor available in?
    The PHPT60415NY transistor is available in a SOT669 (LFPAK56) package.
  7. What are some common applications of the PHPT60415NY transistor?
    Common applications include power management, load switch, linear mode voltage regulator, backlighting, motor drive, and relay replacement.
  8. How does the PHPT60415NY transistor reduce PCB requirements?
    The PHPT60415NY transistor reduces PCB requirements compared to transistors in DPAK packages due to its compact SOT669 (LFPAK56) package.
  9. Is there a PNP complement for the PHPT60415NY transistor?
    Yes, the PNP complement is the PHPT60415PY.
  10. Where can I find more detailed information and datasheets for the PHPT60415NY transistor?
    You can find detailed information and datasheets on the Nexperia website or through authorized distributors like Mouser, Digi-Key, and Farnell.
