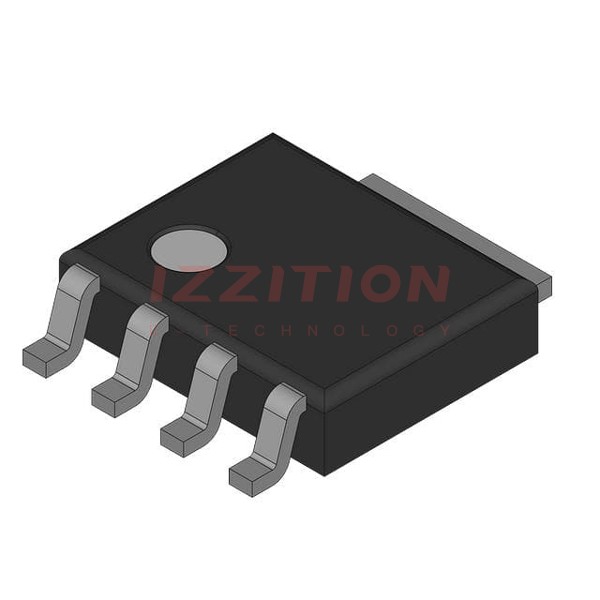

Nexperia USA Inc. PHPT60415PY,115

Manufacturer No:
PHPT60415PY,115
Manufacturer:
Nexperia USA Inc.
Package:
Bulk
Description:
POWER BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PHPT60415PY,115 is a high-power bipolar transistor manufactured by Nexperia USA Inc. This PNP transistor is part of Nexperia's extensive portfolio of discrete semiconductor products, designed to meet the demands of various industrial and consumer applications. With its high thermal power dissipation capability and suitability for high-temperature applications, this transistor is ideal for use in power management, load switching, and other high-current applications.

Key Specifications

ParameterValue
Type NumberPHPT60415PY,115
PackageSOT669 (LFPAK56)
VCEO [max]40 V
IC [max]15 A
hFE [min]250
hFE [typ]410
Channel TypePNP
Operating TemperatureUp to 175 °C
RoHS ComplianceYes

Key Features

  • High thermal power dissipation capability
  • Suitable for high-temperature applications up to 175 °C
  • Reduced Printed Circuit Board (PCB) requirements compared to transistors in DPAK packages
  • High energy efficiency due to less heat generation

Applications

  • Power management
  • Load switch
  • Linear mode voltage regulator
  • Backlighting applications
  • Motor drive
  • Relay replacement

Q & A

  1. What is the maximum collector-emitter voltage (VCEO) of the PHPT60415PY,115 transistor?
    The maximum collector-emitter voltage (VCEO) is 40 V.
  2. What is the maximum collector current (IC) of this transistor?
    The maximum collector current (IC) is 15 A.
  3. What is the typical current gain (hFE) of the PHPT60415PY,115 transistor?
    The typical current gain (hFE) is 410.
  4. What is the operating temperature range of this transistor?
    The operating temperature range is up to 175 °C.
  5. Is the PHPT60415PY,115 RoHS compliant?
    Yes, it is RoHS compliant.
  6. What package type is the PHPT60415PY,115 transistor available in?
    The transistor is available in the SOT669 (LFPAK56) package.
  7. What are some common applications of the PHPT60415PY,115 transistor?
    Common applications include power management, load switching, linear mode voltage regulators, backlighting, motor drives, and relay replacements.
  8. How does the PHPT60415PY,115 reduce PCB requirements?
    The transistor reduces PCB requirements compared to transistors in DPAK packages due to its compact SOT669 (LFPAK56) package.
  9. What are the benefits of high thermal power dissipation in the PHPT60415PY,115 transistor?
    The high thermal power dissipation capability ensures high energy efficiency and less heat generation.
  10. Where can I purchase the PHPT60415PY,115 transistor?
    You can purchase the transistor from Nexperia's official distributors such as Arrow, Avnet, Digi-Key, Mouser Electronics, and others listed on Nexperia's website.
