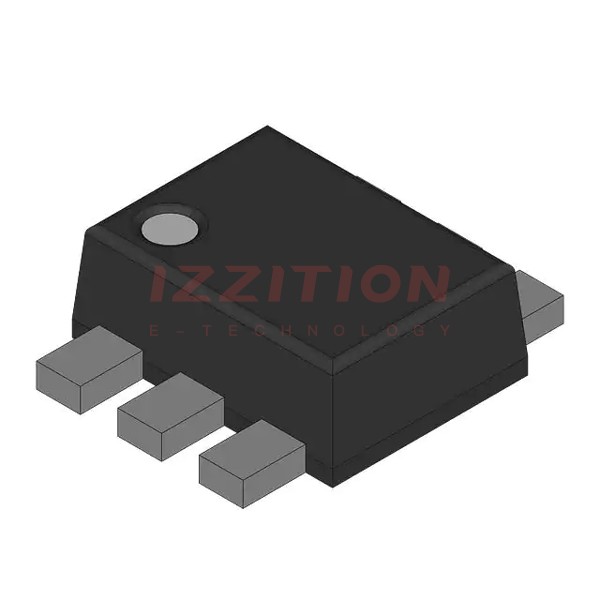

NXP USA Inc. PEMZ7315

Manufacturer No:
PEMZ7315
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
NPN/PNP TRANSISTOR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PEMZ7315 is a general-purpose double transistor produced by NXP USA Inc. This component is part of NXP's extensive portfolio of semiconductor solutions, designed to meet various application needs in different industries.

The PEMZ7315 is packaged in a SOT666 surface-mounted package, which is compact and suitable for a wide range of electronic designs. The transistor is available in both NPN and PNP configurations, making it versatile for different circuit requirements.

Key Specifications

Parameter Conditions Min Typ Max Unit
VCBO (Collector-Base Voltage) Open Emitter - - 15 V
VCEO (Collector-Emitter Voltage) Open Base - - 12 V
VEBO (Emitter-Base Voltage) Open Collector - - 6 V
IC (Collector Current) - - - 500 mA
ICM (Peak Collector Current) - - - 1 A
IBM (Peak Base Current) - - - 100 mA
Ptot (Total Power Dissipation) Tamb ≤ 25 °C - - 200 mW
Tj (Junction Temperature) - - - 150 °C
Tamb (Ambient Temperature) - -65 - 150 °C
Tstg (Storage Temperature) - -65 - 150 °C

Key Features

  • Compact Package: The PEMZ7315 is housed in a SOT666 surface-mounted package, which is 1.6 mm x 1.2 mm x 0.55 mm in size, making it ideal for space-constrained designs.
  • General Purpose Transistor: Available in both NPN and PNP configurations, this transistor is suitable for a wide range of general-purpose applications.
  • High Current Handling: The transistor can handle a peak collector current of up to 1 A and a peak base current of up to 100 mA.
  • Wide Temperature Range: Operates over a temperature range of -65 °C to 150 °C, making it robust for various environmental conditions.
  • Low Power Dissipation: Total power dissipation is limited to 200 mW at an ambient temperature of 25 °C.

Applications

  • Automotive Systems: Suitable for use in automotive electronics due to its robust temperature range and high current handling capabilities.
  • Industrial Control Systems: Can be used in industrial control circuits where reliability and durability are crucial.
  • Consumer Electronics: Ideal for various consumer electronic devices that require compact and reliable transistor solutions.
  • IoT Devices: Applicable in IoT devices that need low power consumption and high reliability.

Q & A

  1. What is the package type of the PEMZ7315 transistor?

    The PEMZ7315 is packaged in a SOT666 surface-mounted package.

  2. What are the maximum collector-emitter and collector-base voltages for the PEMZ7315?

    The maximum collector-emitter voltage (VCEO) is 12 V, and the maximum collector-base voltage (VCBO) is 15 V.

  3. What is the peak collector current handling capability of the PEMZ7315?

    The PEMZ7315 can handle a peak collector current of up to 1 A.

  4. What is the operating temperature range of the PEMZ7315?

    The transistor operates over a temperature range of -65 °C to 150 °C.

  5. What is the total power dissipation limit for the PEMZ7315 at 25 °C ambient temperature?

    The total power dissipation is limited to 200 mW at an ambient temperature of 25 °C.

  6. Is the PEMZ7315 suitable for automotive applications?

    Yes, the PEMZ7315 is suitable for automotive applications due to its robust temperature range and high current handling capabilities.

  7. Can the PEMZ7315 be used in industrial control systems?

    Yes, it can be used in industrial control circuits where reliability and durability are crucial.

  8. What are the dimensions of the SOT666 package?

    The SOT666 package is 1.6 mm x 1.2 mm x 0.55 mm in size.

  9. How many leads does the PEMZ7315 have?

    The PEMZ7315 has 6 leads.

  10. Where can I find more detailed information about the PEMZ7315?

    More detailed information can be found in the full data sheet available through the local Nexperia sales office or on the Nexperia website.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
0 Remaining View Similar

In Stock

-
59

Please send RFQ , we will respond immediately.
