BC847BW/DG,115
  • Share:

NXP USA Inc. BC847BW/DG,115

Manufacturer No:
BC847BW/DG,115
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

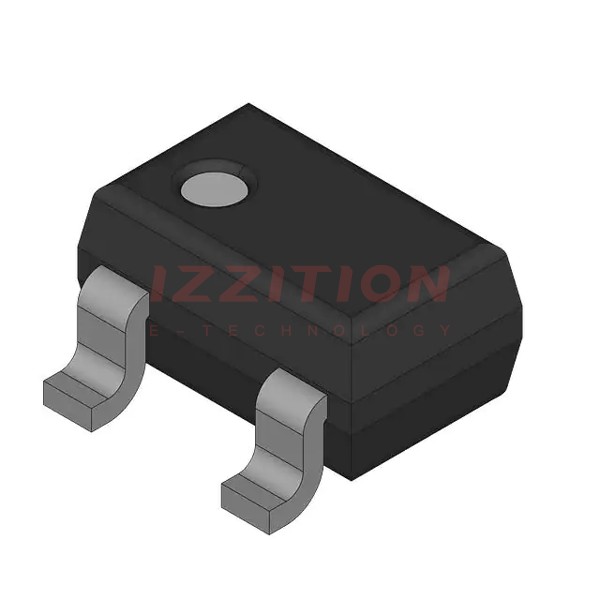

The BC847BW/DG,115 is a 45 V, 100 mA NPN general-purpose transistor produced by NXP USA Inc., now part of Nexperia. This transistor is housed in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package, making it ideal for space-constrained applications. It is part of the BC847 series, which offers various gain selections, making it versatile for different design requirements.

Key Specifications

Parameter Conditions Min Typ Max Unit
VCEO (Collector-Emitter Voltage) Open base - - 45 V
VEB0 (Emitter-Base Voltage) Open collector - - 6 V
IC (Collector Current) - - - 100 mA
ICM (Peak Collector Current) Single pulse; tp ≤ 1 ms - - 200 mA
Ptot (Total Power Dissipation) Tamb ≤ 25 °C - - 200 mW
Tj (Junction Temperature) - - - 150 °C
Tamb (Ambient Temperature) - -65 - 150 °C
hFE (DC Current Gain) - 200 - 450 -
fT (Transition Frequency) - - - 100 MHz

Key Features

  • Compact Package: The BC847BW is packaged in the SOT323 (SC-70) SMD plastic package, which is very small and suitable for space-constrained designs.
  • General-Purpose Use: This transistor is designed for general-purpose switching and amplification applications.
  • Multiple Gain Selections: The BC847 series offers different gain selections (A, B, C), allowing designers to choose the best fit for their specific application.
  • High Temperature Capability: The transistor can operate up to a junction temperature of 150 °C.
  • Low Power Dissipation: The total power dissipation is 200 mW at an ambient temperature of 25 °C.

Applications

The BC847BW transistor is versatile and can be used in a variety of applications across different industries, including:

  • Automotive Systems: For various automotive electronics due to its robustness and reliability.
  • Industrial Control Systems: In control circuits, switching applications, and amplification stages.
  • Consumer Electronics: In audio amplifiers, power supplies, and other consumer electronic devices.
  • Mobile and Wearable Devices: Due to its small package size and low power consumption.

Q & A

  1. What is the maximum collector-emitter voltage of the BC847BW transistor?

    The maximum collector-emitter voltage (VCEO) is 45 V.

  2. What is the package type of the BC847BW transistor?

    The BC847BW transistor is packaged in the SOT323 (SC-70) SMD plastic package.

  3. What are the typical applications of the BC847BW transistor?

    The BC847BW transistor is used in general-purpose switching and amplification applications across various industries.

  4. What is the maximum collector current of the BC847BW transistor?

    The maximum collector current (IC) is 100 mA.

  5. What is the peak collector current of the BC847BW transistor?

    The peak collector current (ICM) is 200 mA for a single pulse with tp ≤ 1 ms.

  6. What is the total power dissipation of the BC847BW transistor at 25 °C ambient temperature?

    The total power dissipation (Ptot) is 200 mW at an ambient temperature of 25 °C.

  7. What is the junction temperature range of the BC847BW transistor?

    The junction temperature (Tj) range is up to 150 °C.

  8. What are the gain selections available for the BC847 series?

    The BC847 series offers different gain selections: A, B, and C.

  9. Is the BC847BW transistor automotive qualified?

    No, the BC847BW transistor is not specifically listed as automotive qualified, but it can be used in automotive systems due to its robustness and reliability.

  10. Where can I find more detailed information about the BC847BW transistor?

    More detailed information can be found in the full data sheet available from Nexperia or through their official distributors.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
0 Remaining View Similar

In Stock

$0.02
19,524

Please send RFQ , we will respond immediately.
