PMBT4401YSX
  • Share:

Nexperia USA Inc. PMBT4401YSX

Manufacturer No:
PMBT4401YSX
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS NPN 40V 0.6A TO236AB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

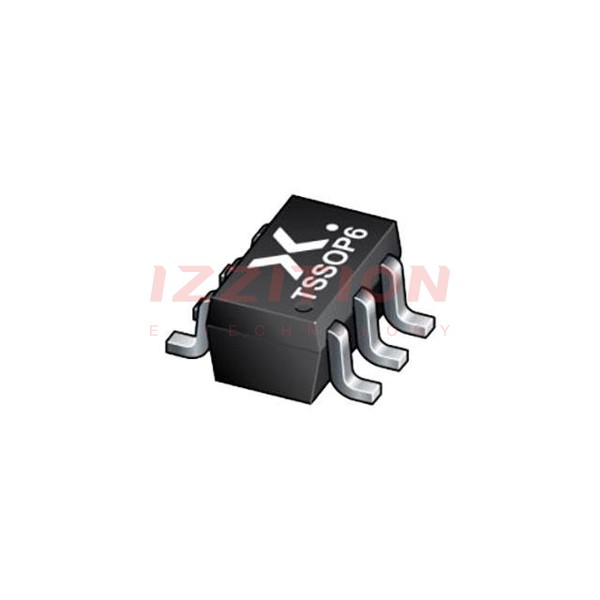

The PMBT4401YSX is a double NPN switching transistor manufactured by Nexperia USA Inc. This component is part of the PMBT4401 series and is designed for use in various applications, including automotive systems. It is packaged in a very small SOT363 (TSSOP6) Surface-Mounted Device (SMD) plastic package, making it ideal for space-constrained designs.

The transistor is AEC-Q101 qualified, ensuring its reliability and performance in demanding automotive environments. It is also suitable for general-purpose switching and linear amplification applications.

Key Specifications

Type number Package version Package name Size (mm) Channel type V CEO [max] (V) I C [max] (mA) h FE [max] h FE [min] f T [min] (MHz) t off (ns) P tot [max] (mW)
PMBT4401YS SOT363 TSSOP6 2.1 x 1.25 x 0.95 NPN 40.0 600.0 300.0 100.0 250.0 250.0 250.0

Key Features

  • High Current Capability: Maximum current of 600 mA.
  • High Voltage Rating: Maximum collector-emitter voltage of 40 V.
  • Compact Package: SOT363 (TSSOP6) package, ideal for space-constrained designs.
  • AEC-Q101 Qualified: Ensures reliability and performance in automotive applications.
  • General-Purpose Switching: Suitable for both switching and linear amplification applications.

Applications

The PMBT4401YSX is versatile and can be used in a variety of applications across different industries, including:

  • Automotive Systems: Due to its AEC-Q101 qualification, it is well-suited for use in automotive electronics.
  • Industrial Electronics: Can be used in industrial control systems, power supplies, and other industrial applications.
  • Consumer Electronics: Suitable for use in consumer devices that require reliable switching and amplification.
  • General-Purpose Electronics: Can be used in various general-purpose electronic circuits requiring NPN transistors.

Q & A

  1. What is the maximum collector-emitter voltage of the PMBT4401YSX?

    The maximum collector-emitter voltage (V CEO) is 40 V.

  2. What is the maximum current rating of the PMBT4401YSX?

    The maximum current (I C) is 600 mA.

  3. What package type is the PMBT4401YSX available in?

    The PMBT4401YSX is available in the SOT363 (TSSOP6) package.

  4. Is the PMBT4401YSX AEC-Q101 qualified?
  5. What are the dimensions of the SOT363 package?

    The dimensions of the SOT363 package are 2.1 x 1.25 x 0.95 mm.

  6. What is the minimum current gain (h FE) of the PMBT4401YSX?

    The minimum current gain (h FE) is 100.

  7. What is the maximum power dissipation (P tot) of the PMBT4401YSX?

    The maximum power dissipation (P tot) is 250 mW.

  8. Can the PMBT4401YSX be used for linear amplification?
  9. What is the double PNP complement of the PMBT4401YSX?

    The double PNP complement of the PMBT4401YSX is the PMBT4403YS.

  10. Where can I purchase the PMBT4401YSX?

    The PMBT4401YSX can be purchased from Nexperia and its authorized distributors.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):600 mA
Voltage - Collector Emitter Breakdown (Max):40 V
Vce Saturation (Max) @ Ib, Ic:750mV @ 50mA, 500mA
Current - Collector Cutoff (Max):50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:80 @ 10mA, 1V
Power - Max:250 mW
Frequency - Transition:250MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:TO-236AB
0 Remaining View Similar

In Stock

$0.34
2,535

Please send RFQ , we will respond immediately.

Similar Products

Part Number PMBT4401YSX PMBT4403YSX
Manufacturer Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active
Transistor Type NPN PNP
Current - Collector (Ic) (Max) 600 mA 600 mA
Voltage - Collector Emitter Breakdown (Max) 40 V 40 V
Vce Saturation (Max) @ Ib, Ic 750mV @ 50mA, 500mA 750mV @ 50mA, 500mA
Current - Collector Cutoff (Max) 50nA (ICBO) 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 80 @ 10mA, 1V 100 @ 10mA, 1V
Power - Max 250 mW 250 mW
Frequency - Transition 250MHz 200MHz
Operating Temperature 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3 TO-236-3, SC-59, SOT-23-3
Supplier Device Package TO-236AB TO-236AB
