PMBT2222AMYL
  • Share:

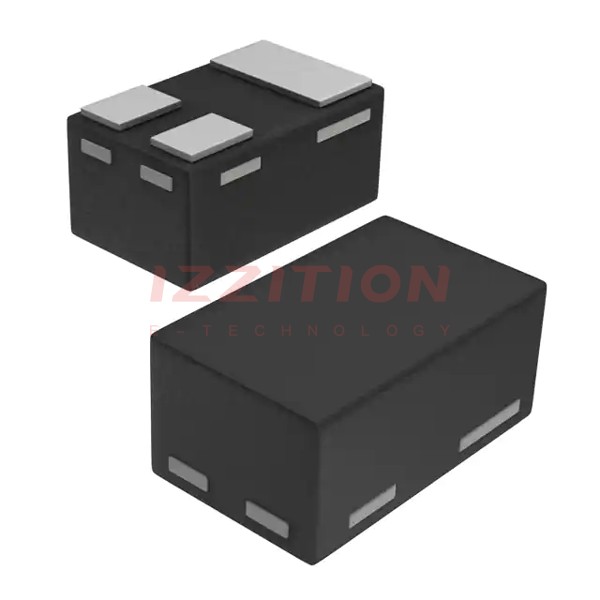

Nexperia USA Inc. PMBT2222AMYL

Manufacturer No:
PMBT2222AMYL
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
PMBT2222AM/SOT883/XQFN3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PMBT2222AMYL is an NPN switching transistor manufactured by Nexperia. It is packaged in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package, making it ideal for space-constrained applications. This transistor is designed for low power amplification and switching, offering high efficiency and reliability.

Key Specifications

Parameter Value Unit
Type NPN -
Package SOT23 -
Package Size 2.9 x 1.3 x 1 mm
Total Power Dissipation (Ptot) 250.0 mW
Collector-Emitter Voltage (VCEO) 30.0 V
Collector Current (IC) 600.0 mA
Current Gain (hFE) Min 100.0 -
Current Gain (hFE) Max 300.0 -
Junction Temperature (TJ) Max 150 °C
Transition Frequency (fT) Min 250.0 MHz
Automotive Qualified Yes -

Key Features

  • Epitaxial planar die construction for high reliability and performance.
  • Low saturation voltage, making it suitable for low power amplification and switching applications.
  • Totally lead-free and fully RoHS compliant, ensuring environmental sustainability.
  • Halogen- and antimony-free, classified as a 'Green' device.
  • Compact SOT23 package, ideal for space-constrained designs.
  • Automotive qualified, meeting AEC-Q100/Q101 standards for reliability in automotive applications.

Applications

The PMBT2222AMYL transistor is versatile and finds applications across various industries, including:

  • Automotive: For use in vehicle electronics, such as in power management and control circuits.
  • Industrial: In control circuits, power supplies, and motor drives.
  • Consumer Electronics: In audio amplifiers, switching circuits, and other low power applications.
  • Mobile and Wearables: Due to its small size and low power consumption, it is suitable for mobile devices and wearable electronics.

Q & A

  1. What is the package type of the PMBT2222AMYL transistor?

    The PMBT2222AMYL transistor is packaged in a SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.

  2. What is the maximum collector-emitter voltage (VCEO) of the PMBT2222AMYL?

    The maximum collector-emitter voltage (VCEO) is 30 V.

  3. What is the maximum collector current (IC) of the PMBT2222AMYL?

    The maximum collector current (IC) is 600 mA.

  4. Is the PMBT2222AMYL transistor automotive qualified?

    Yes, the PMBT2222AMYL transistor is automotive qualified, meeting AEC-Q100/Q101 standards.

  5. What is the junction temperature (TJ) range of the PMBT2222AMYL?

    The junction temperature (TJ) range is up to 150°C.

  6. Is the PMBT2222AMYL transistor RoHS compliant?

    Yes, the PMBT2222AMYL transistor is totally lead-free and fully RoHS compliant.

  7. What are the key features of the PMBT2222AMYL transistor?

    The key features include epitaxial planar die construction, low saturation voltage, compact SOT23 package, and it is halogen- and antimony-free.

  8. In which industries can the PMBT2222AMYL transistor be used?

    The PMBT2222AMYL transistor can be used in automotive, industrial, consumer electronics, mobile, and wearable electronics industries.

  9. What is the transition frequency (fT) of the PMBT2222AMYL transistor?

    The transition frequency (fT) is a minimum of 250 MHz.

  10. How can I obtain the datasheet for the PMBT2222AMYL transistor?

    You can download the datasheet from Nexperia's official website or through authorized distributors.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):600 mA
Voltage - Collector Emitter Breakdown (Max):40 V
Vce Saturation (Max) @ Ib, Ic:1V @ 50mA, 500mA
Current - Collector Cutoff (Max):10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 150mA, 10V
Power - Max:250 mW
Frequency - Transition:340MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-101, SOT-883
Supplier Device Package:SOT-883
0 Remaining View Similar

In Stock

$0.04
20,266

Please send RFQ , we will respond immediately.
