PMBT2222AMBYL
  • Share:

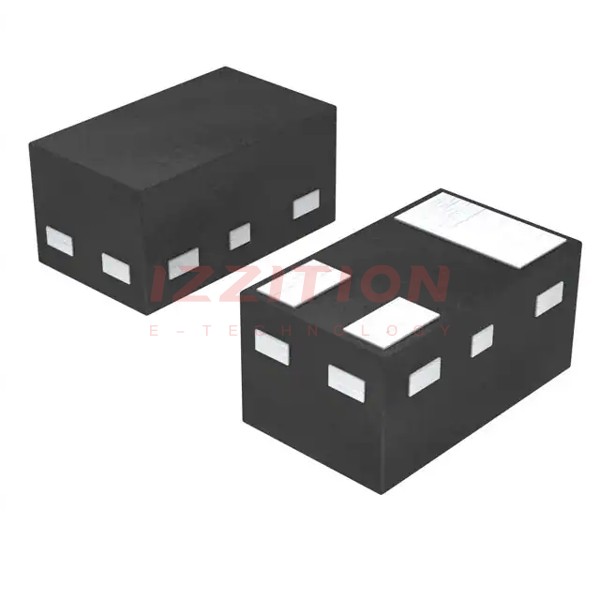

Nexperia USA Inc. PMBT2222AMBYL

Manufacturer No:
PMBT2222AMBYL
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS NPN 40V 0.6A DFN1006B-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PMBT2222AMBYL is a general-purpose NPN bipolar junction transistor (BJT) produced by Nexperia USA Inc. This component is designed for a wide range of applications, including switching and amplification in electronic circuits. It is known for its high current gain, low noise, and robust performance under various operating conditions.

Key Specifications

CharacteristicSymbolMinMaxUnit
Collector-Base Breakdown VoltageV(BR)CBO6075Vdc
Collector-Emitter Breakdown VoltageV(BR)CEO3040Vdc
Emitter-Base Breakdown VoltageV(BR)EBO5.06.0Vdc
Collector Cutoff CurrentICBO-0.01μAdc
Emitter Cutoff CurrentIEBO-100nAdc
Base-Emitter Saturation VoltageVBE(sat)0.61.3Vdc
Collector-Emitter Saturation VoltageVCE(sat)0.41.6Vdc
Current-Gain Bandwidth ProductfT250300MHz

Key Features

  • High current gain and low noise, making it suitable for both switching and amplification applications.
  • Robust performance with high breakdown voltages (V(BR)CBO, V(BR)CEO, V(BR)EBO).
  • Low collector and base-emitter saturation voltages for efficient operation.
  • Wide operating temperature range, enhancing reliability in various environments.
  • Compact package (SOT23) for space-efficient designs.

Applications

The PMBT2222AMBYL is versatile and can be used in a variety of applications, including:

  • Switching circuits: Due to its high current gain and low saturation voltages, it is ideal for switching applications.
  • Amplifier circuits: Suitable for general-purpose amplification in audio, signal processing, and other electronic systems.
  • Automotive electronics: Although not specifically AEC-Q100 qualified, it can be used in less stringent automotive applications.
  • Industrial control systems: For motor control, power supplies, and other industrial automation tasks.

Q & A

  1. What is the PMBT2222AMBYL?
    The PMBT2222AMBYL is a general-purpose NPN bipolar junction transistor produced by Nexperia USA Inc.
  2. What are the key specifications of the PMBT2222AMBYL?
    Key specifications include collector-base breakdown voltage (V(BR)CBO), collector-emitter breakdown voltage (V(BR)CEO), emitter-base breakdown voltage (V(BR)EBO), and current-gain bandwidth product (fT).
  3. What are the typical applications of the PMBT2222AMBYL?
    It is used in switching circuits, amplifier circuits, automotive electronics, and industrial control systems.
  4. What is the package type of the PMBT2222AMBYL?
    The component is packaged in a SOT23 package.
  5. What is the operating temperature range of the PMBT2222AMBYL?
    The operating temperature range is typically from -55°C to +150°C.
  6. Is the PMBT2222AMBYL AEC-Q100 qualified?
    No, it is not specifically AEC-Q100 qualified.
  7. What are the advantages of using the PMBT2222AMBYL?
    High current gain, low noise, robust performance, and compact packaging.
  8. Where can I find detailed datasheets for the PMBT2222AMBYL?
    Detailed datasheets can be found on the Nexperia website, Digi-Key, Mouser Electronics, and other authorized distributors.
  9. Can the PMBT2222AMBYL be used in high-frequency applications?
    Yes, it has a high current-gain bandwidth product (fT) of up to 300 MHz, making it suitable for high-frequency applications.
  10. How do I ensure the reliability of the PMBT2222AMBYL in my design?
    Ensure that the operating conditions do not exceed the maximum ratings specified in the datasheet, and follow proper design and mounting guidelines.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):600 mA
Voltage - Collector Emitter Breakdown (Max):40 V
Vce Saturation (Max) @ Ib, Ic:1V @ 50mA, 500mA
Current - Collector Cutoff (Max):10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 150mA, 10V
Power - Max:250 mW
Frequency - Transition:340MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:3-XFDFN
Supplier Device Package:DFN1006B-3
0 Remaining View Similar

In Stock

$0.04
19,308

Please send RFQ , we will respond immediately.
