Nexperia USA Inc. PHPT61003PYX

Manufacturer No:
PHPT61003PYX
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS PNP 100V 3A LFPAK56 PWRSO8
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

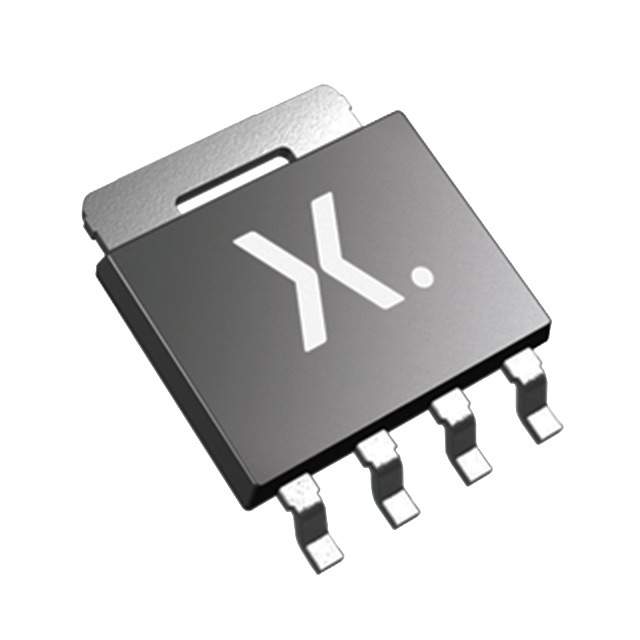

The PHPT61003PYX, produced by Nexperia USA Inc., is a 100 V, 3 A PNP high power bipolar transistor. This component is housed in a SOT669 (LFPAK56) Surface-Mounted Device (SMD) power plastic package, which is designed for high thermal power dissipation and suitability for high temperature applications up to 175 °C. The transistor is AEC-Q101 qualified, making it reliable for automotive and other demanding applications. It offers reduced Printed-Circuit Board (PCB) requirements compared to transistors in DPAK packages and is known for its high energy efficiency due to less heat generation.

Key Specifications

Type number Package VCEO [max] (V) IC [max] (mA) hFE [min] hFE [typ] Channel type
PHPT61003PY SOT669 (LFPAK56) -100.0 -3000.0 80.0 220.0 PNP

Key Features

  • High thermal power dissipation capability
  • Suitable for high temperature applications up to 175 °C
  • Reduced Printed-Circuit Board (PCB) requirements compared to transistors in DPAK packages
  • High energy efficiency due to less heat generation
  • AEC-Q101 qualified for automotive applications

Applications

  • Power management
  • Loadswitch
  • Linear mode voltage regulator
  • Backlighting applications
  • Automotive and industrial applications

Q & A

  1. What is the maximum collector-emitter voltage (VCEO) of the PHPT61003PYX?

    The maximum collector-emitter voltage (VCEO) is -100 V.

  2. What is the maximum collector current (IC) of the PHPT61003PYX?

    The maximum collector current (IC) is -3000 mA.

  3. What is the typical current gain (hFE) of the PHPT61003PYX?

    The typical current gain (hFE) is 220.

  4. What package type is the PHPT61003PYX available in?

    The PHPT61003PYX is available in the SOT669 (LFPAK56) package.

  5. Is the PHPT61003PYX AEC-Q101 qualified?

    Yes, the PHPT61003PYX is AEC-Q101 qualified.

  6. What are some of the key applications of the PHPT61003PYX?

    Key applications include power management, loadswitch, linear mode voltage regulator, and backlighting applications.

  7. What is the maximum operating temperature of the PHPT61003PYX?

    The maximum operating temperature is up to 175 °C.

  8. Does the PHPT61003PYX comply with EU RoHS regulations?

    Yes, the PHPT61003PYX is compliant with EU RoHS regulations.

  9. Is the PHPT61003PYX free from PFAS?

    Yes, the PHPT61003PYX does not contain any intentionally added per- and polyfluoroalkyl substances (PFAS).

  10. What is the NPN complement of the PHPT61003PYX?

    The NPN complement is the PHPT61003NY.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):3 A
Voltage - Collector Emitter Breakdown (Max):100 V
Vce Saturation (Max) @ Ib, Ic:360mV @ 200mA, 2A
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:150 @ 500mA, 10V
Power - Max:1.25 W
Frequency - Transition:125MHz
Operating Temperature:175°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-100, SOT-669
Supplier Device Package:LFPAK56, Power-SO8
0 Remaining View Similar

In Stock

$0.49
935

Please send RFQ , we will respond immediately.

Similar Products

Part Number PHPT61003PYX PHPT61006PYX PHPT61003NYX
Manufacturer Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active Active
Transistor Type PNP PNP NPN
Current - Collector (Ic) (Max) 3 A 6 A 3 A
Voltage - Collector Emitter Breakdown (Max) 100 V 100 V 100 V
Vce Saturation (Max) @ Ib, Ic 360mV @ 200mA, 2A 130mV @ 50mA, 1A 330mV @ 300mA, 3A
Current - Collector Cutoff (Max) 100nA (ICBO) 100nA 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 150 @ 500mA, 10V 170 @ 500mA, 2V 80 @ 1A, 10V
Power - Max 1.25 W 1.3 W 1.25 W
Frequency - Transition 125MHz 116MHz 140MHz
Operating Temperature 175°C (TJ) 175°C (TJ) 175°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case SC-100, SOT-669 SC-100, SOT-669 SC-100, SOT-669
Supplier Device Package LFPAK56, Power-SO8 LFPAK56, Power-SO8 LFPAK56, Power-SO8
