PHPT61003PY,115
  • Share:

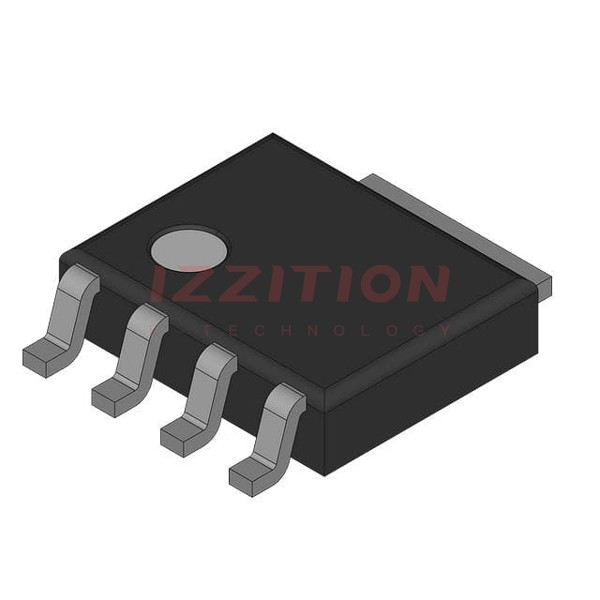

Nexperia USA Inc. PHPT61003PY,115

Manufacturer No:
PHPT61003PY,115
Manufacturer:
Nexperia USA Inc.
Package:
Bulk
Description:
POWER BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PHPT61003PY,115 is a high-power bipolar transistor produced by Nexperia USA Inc. This component is part of Nexperia's lineup of high-performance transistors designed for various demanding applications. The PHPT61003PY is a PNP transistor that offers high thermal power dissipation capability, making it suitable for high-temperature applications up to 175 °C.

Key Specifications

ParameterValue
Type NumberPHPT61003PY
PackageSOT1205 (LFPAK56D)
Channel TypePNP
VCEO [max]100 V
IC [max]3000 mA
ICM [max]8 A
hFE [min]100
hFE [typ]250
Thermal Resistance (Rth(j-a))50 K/W
Operating TemperatureUp to 175 °C

Key Features

  • High thermal power dissipation capability.
  • Suitable for high-temperature applications up to 175 °C.
  • Reduced Printed-Circuit Board (PCB) requirements compared to transistors in DPAK packages.
  • High energy efficiency due to less heat generation.
  • AEC-Q101 qualified, ensuring reliability in automotive applications.

Applications

  • Motor control.
  • Power management.
  • Load switch.
  • Linear mode voltage regulator.
  • Backlighting applications.
  • Relay replacement.

Q & A

  1. What is the maximum operating temperature of the PHPT61003PY transistor?
    The PHPT61003PY transistor can operate up to 175 °C.
  2. What is the package type of the PHPT61003PY transistor?
    The PHPT61003PY transistor is packaged in SOT1205 (LFPAK56D).
  3. What is the maximum collector current (IC) of the PHPT61003PY transistor?
    The maximum collector current (IC) is 3000 mA.
  4. Is the PHPT61003PY transistor AEC-Q101 qualified?
    Yes, the PHPT61003PY transistor is AEC-Q101 qualified.
  5. What are some typical applications of the PHPT61003PY transistor?
    Typical applications include motor control, power management, load switch, linear mode voltage regulator, and backlighting applications.
  6. How does the PHPT61003PY transistor compare to transistors in DPAK packages in terms of PCB requirements?
    The PHPT61003PY transistor has reduced PCB requirements compared to transistors in DPAK packages.
  7. What is the thermal resistance (Rth(j-a)) of the PHPT61003PY transistor?
    The thermal resistance (Rth(j-a)) is 50 K/W.
  8. Can I use the PHPT61003PY transistor as a relay replacement?
    Yes, the PHPT61003PY transistor can be used as a relay replacement.
  9. Where can I find more detailed technical information about the PHPT61003PY transistor?
    You can find detailed technical information in the datasheet available on Nexperia's official website or through authorized distributors like Digi-Key and Mouser Electronics.
  10. How do I order samples of the PHPT61003PY transistor?
    Samples can be ordered via Nexperia's sales organization or through their network of global and regional distributors.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
0 Remaining View Similar

In Stock

$0.11
7,761

Please send RFQ , we will respond immediately.
