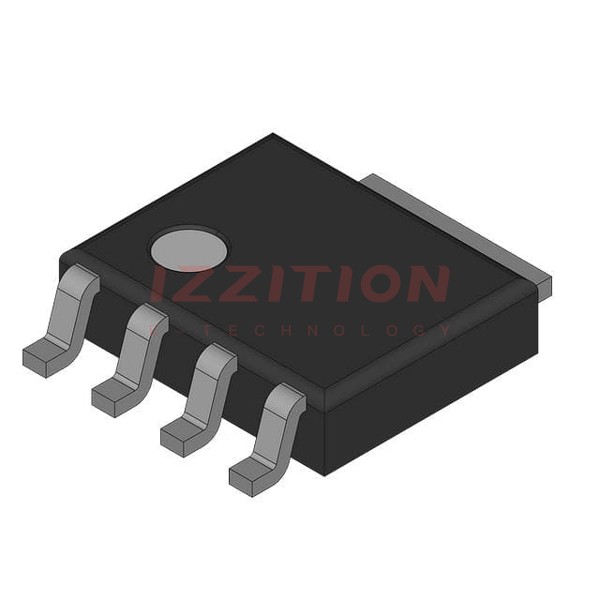

NXP USA Inc. PHPT61003PY115

Manufacturer No:
PHPT61003PY115
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
POWER BIPOLAR TRANSISTOR, PNP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PHPT61003PY115 is a high-power bipolar transistor developed and manufactured by NXP USA Inc. This PNP transistor is designed to operate in high-power applications, offering robust performance and reliability. It is packaged in a SOT669 (LFPAK56) Surface-Mounted Device (SMD) power plastic package, which enhances thermal power dissipation and reduces the requirements for Printed-Circuit Board (PCB) space.

Key Specifications

ParameterValue
Type NumberPHPT61003PY
PackageSOT669 (LFPAK56)
Product StatusProduction
VCEO [max]100 V
IC [max]3 A
hFE [min]80
hFE [typ]220
Channel TypePNP
Operating TemperatureUp to 175 °C
RoHS ComplianceYes

Key Features

  • High thermal power dissipation capability due to the LFPAK56 package.
  • Suitable for high-temperature applications up to 175 °C.
  • Reduced PCB requirements compared to transistors in DPAK packages.
  • High energy efficiency due to less heat generation.
  • AEC-Q101 qualified, ensuring reliability in automotive applications.

Applications

  • Power management.
  • Load switch.
  • Linear mode voltage regulator.
  • Backlighting applications.
  • Automotive and industrial high-power applications.

Q & A

  1. What is the maximum collector-emitter voltage (VCEO) of the PHPT61003PY115?
    The maximum collector-emitter voltage (VCEO) is 100 V.
  2. What is the maximum collector current (IC) of the PHPT61003PY115?
    The maximum collector current (IC) is 3 A.
  3. What is the typical current gain (hFE) of the PHPT61003PY115?
    The typical current gain (hFE) is 220.
  4. What package type is used for the PHPT61003PY115?
    The PHPT61003PY115 is packaged in a SOT669 (LFPAK56) Surface-Mounted Device (SMD) power plastic package.
  5. Is the PHPT61003PY115 RoHS compliant?
    Yes, the PHPT61003PY115 is RoHS compliant.
  6. What are the operating temperature limits for the PHPT61003PY115?
    The operating temperature limits are up to 175 °C.
  7. What are some common applications for the PHPT61003PY115?
    Common applications include power management, load switch, linear mode voltage regulator, and backlighting applications.
  8. Is the PHPT61003PY115 AEC-Q101 qualified?
    Yes, the PHPT61003PY115 is AEC-Q101 qualified.
  9. What is the NPN complement for the PHPT61003PY115?
    The NPN complement is the PHPT61003NY.
  10. How does the LFPAK56 package benefit the PHPT61003PY115?
    The LFPAK56 package enhances thermal power dissipation and reduces PCB space requirements.
