Overview

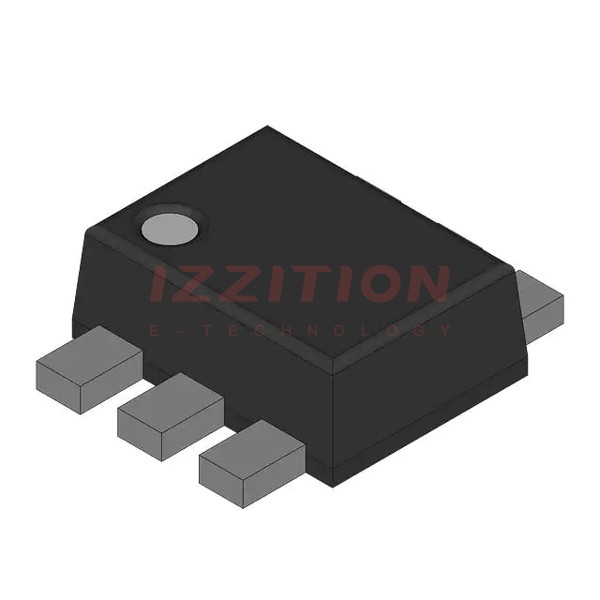

The PESD3V3L5UV/DG,115 is a low capacitance unidirectional fivefold ElectroStatic Discharge (ESD) protection diode array manufactured by Nexperia USA Inc. This component is designed to protect up to five unidirectional signal lines from damage caused by ESD and other transients. It is packaged in a SOT666 ultra small and flat lead Surface-Mounted Device (SMD) plastic package, making it suitable for a variety of applications where space is limited.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Maximum Peak Pulse Power (PPPM) | 25 | W |
| Clamping Voltage (VCL) | 12 | V |
| Leakage Current (IRM) | 75 | nA |
| ESD Protection | Up to 20 kV | - |
| IEC 61000-4-2 (ESD) Level | Level 4 | - |
| IEC 61000-4-5 (Surge) Peak Pulse Current | 2.5 | A |
| Package Type | SOT666 | - |
Key Features
- ESD protection of up to five unidirectional signal lines
- Low diode capacitance
- Low clamping voltage: VCL = 12 V
- Ultra low leakage current: IRM = 75 nA
- ESD protection up to 20 kV and compliant with IEC 61000-4-2 Level 4
- Surge protection compliant with IEC 61000-4-5, with a peak pulse current of 2.5 A
Applications
- Computers and peripherals
- Audio and video equipment
- Cellular handsets and accessories
- Communication systems
- Portable electronics
- SIM card protection
Q & A
- What is the PESD3V3L5UV/DG,115 used for?
The PESD3V3L5UV/DG,115 is used for protecting up to five unidirectional signal lines from ElectroStatic Discharge (ESD) and other transients.
- What is the maximum peak pulse power of the PESD3V3L5UV/DG,115?
The maximum peak pulse power is 25 W.
- What is the clamping voltage of the PESD3V3L5UV/DG,115?
The clamping voltage is 12 V.
- What is the leakage current of the PESD3V3L5UV/DG,115?
The leakage current is 75 nA.
- What are the ESD protection levels of the PESD3V3L5UV/DG,115?
The component provides ESD protection up to 20 kV and is compliant with IEC 61000-4-2 Level 4.
- What is the package type of the PESD3V3L5UV/DG,115?
The component is packaged in a SOT666 ultra small and flat lead Surface-Mounted Device (SMD) plastic package.
- What are some common applications of the PESD3V3L5UV/DG,115?
Common applications include computers and peripherals, audio and video equipment, cellular handsets and accessories, communication systems, portable electronics, and SIM card protection.
- Is the PESD3V3L5UV/DG,115 compliant with any specific standards?
Yes, it is compliant with IEC 61000-4-2 (ESD) Level 4 and IEC 61000-4-5 (surge) standards.
- What is the peak pulse current for surge protection?
The peak pulse current for surge protection is 2.5 A.
- Why is low diode capacitance important in the PESD3V3L5UV/DG,115?
Low diode capacitance is important because it minimizes the impact on signal integrity and ensures that the component does not significantly affect the high-frequency performance of the circuit.
