Nexperia USA Inc. PBSS5540X,135

Manufacturer No:
PBSS5540X,135
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:

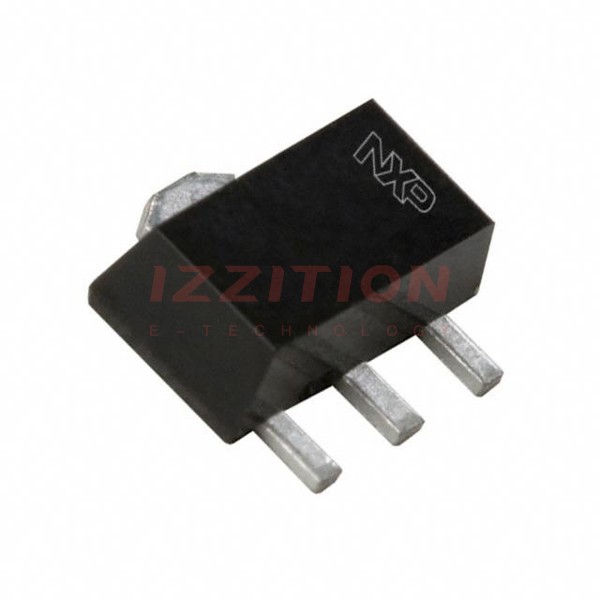

TRANS PNP 40V 4A SOT89
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PBSS5540X,135 is a PNP low VCEsat transistor manufactured by Nexperia USA Inc. This transistor is housed in a medium power SOT89 (SC-62) package, making it suitable for a variety of applications requiring high efficiency and low heat generation. It is the PNP complement to the NPN PBSS4540X transistor.

Key Specifications

ParameterValue
Transistor TypePNP
Collector-Emitter Voltage (VCE)40 V
Collector Current (IC)4 A
Collector-Emitter Saturation Voltage (VCEsat)Low VCEsat
Transition Frequency (fT)60 MHz
Power Dissipation (Ptot)1.6 W
Package TypeSOT89 (SC-62), Surface Mount

Key Features

  • Low collector-emitter saturation voltage (VCEsat)
  • High collector current capability
  • High efficiency leading to less heat generation
  • Medium power SOT89 (SC-62) package

Applications

The PBSS5540X,135 transistor is suitable for various applications requiring high current handling and low VCEsat, such as power switching, motor control, and general-purpose amplification. It is particularly useful in designs where high efficiency and minimal heat generation are critical.

Q & A

  1. What is the collector-emitter voltage (VCE) of the PBSS5540X,135 transistor?
    The collector-emitter voltage (VCE) is 40 V.
  2. What is the collector current (IC) of the PBSS5540X,135 transistor?
    The collector current (IC) is 4 A.
  3. What is the package type of the PBSS5540X,135 transistor?
    The package type is SOT89 (SC-62), surface mount.
  4. What is the transition frequency (fT) of the PBSS5540X,135 transistor?
    The transition frequency (fT) is 60 MHz.
  5. What is the power dissipation (Ptot) of the PBSS5540X,135 transistor?
    The power dissipation (Ptot) is 1.6 W.
  6. What are the key features of the PBSS5540X,135 transistor?
    The key features include low collector-emitter saturation voltage (VCEsat), high collector current capability, and high efficiency leading to less heat generation.
  7. What is the NPN complement to the PBSS5540X,135 transistor?
    The NPN complement is the PBSS4540X transistor.
  8. In what types of applications is the PBSS5540X,135 transistor commonly used?
    The transistor is commonly used in power switching, motor control, and general-purpose amplification.
  9. Why is the PBSS5540X,135 transistor preferred in certain designs?
    It is preferred due to its high efficiency and minimal heat generation.
  10. Where can I find detailed specifications for the PBSS5540X,135 transistor?
    Detailed specifications can be found on the official Nexperia website, as well as on distributor websites such as Digi-Key and Mouser Electronics.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):4 A
Voltage - Collector Emitter Breakdown (Max):40 V
Vce Saturation (Max) @ Ib, Ic:375mV @ 500mA, 5A
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:150 @ 2A, 2V
Power - Max:1.6 W
Frequency - Transition:60MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:SOT-89
