PBSS4540X,135
  • Share:

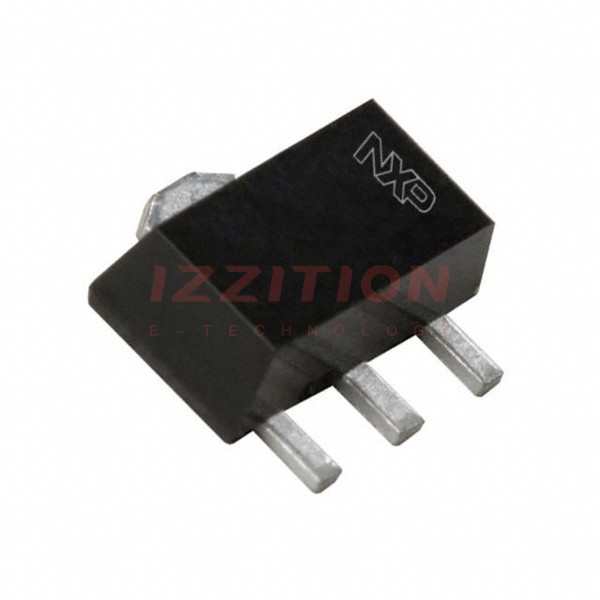

Nexperia USA Inc. PBSS4540X,135

Manufacturer No:
PBSS4540X,135
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS NPN 40V 4A SOT89
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PBSS4540X,135 is a high-performance NPN low VCEsat transistor manufactured by Nexperia USA Inc. This transistor is housed in a SOT89 (SC-62/TO-243) small and flat lead Surface-Mounted Device (SMD) plastic package. It is designed for medium power applications and offers high efficiency, low heat generation, and high collector current capability, making it suitable for a variety of electronic designs.

Key Specifications

ParameterValue
Transistor PolarityNPN
Collector Emitter Voltage (VCEO)40 V
Transition Frequency (fT)70 MHz
Power Dissipation (Pd)550 mW
DC Collector Current (IC)5 A
DC Current Gain (hFE)300
Collector Emitter Saturation Voltage (VCEsat)Low VCEsat at high current operation
Operating Temperature Range-65°C to +150°C
Package TypeSOT89 (SC-62/TO-243)
No. of Pins3 Pins
RoHS ComplianceYes

Key Features

  • High hFE and low VCEsat at high current operation, ensuring high efficiency and less heat generation.
  • High collector current capability with a maximum IC of 4 A.
  • Compact SOT89 package, ideal for surface-mount applications.
  • Wide operating temperature range from -65°C to +150°C.
  • RoHS compliant and lead-free, making it environmentally friendly.

Applications

  • Medium power peripheral drivers (e.g., fan and motor drivers).
  • Strobe flash units for digital still cameras (DSC) and mobile phones.
  • Inverter applications (e.g., TFT displays).
  • Power switch for LAN and ADSL systems.
  • Medium power DC-to-DC conversion.
  • Battery chargers.

Q & A

  1. What is the transistor polarity of the PBSS4540X,135?
    The transistor polarity is NPN.
  2. What is the maximum collector emitter voltage (VCEO) of the PBSS4540X,135?
    The maximum collector emitter voltage is 40 V.
  3. What is the transition frequency (fT) of the PBSS4540X,135?
    The transition frequency is 70 MHz.
  4. What is the maximum power dissipation (Pd) of the PBSS4540X,135?
    The maximum power dissipation is 550 mW.
  5. What is the maximum DC collector current (IC) of the PBSS4540X,135?
    The maximum DC collector current is 5 A.
  6. What is the DC current gain (hFE) of the PBSS4540X,135?
    The DC current gain is 300.
  7. What is the operating temperature range of the PBSS4540X,135?
    The operating temperature range is from -65°C to +150°C.
  8. Is the PBSS4540X,135 RoHS compliant?
    Yes, the PBSS4540X,135 is RoHS compliant and lead-free.
  9. What are some common applications of the PBSS4540X,135?
    Common applications include medium power peripheral drivers, strobe flash units, inverter applications, power switches for LAN and ADSL systems, and battery chargers.
  10. What package type is the PBSS4540X,135 available in?
    The PBSS4540X,135 is available in a SOT89 (SC-62/TO-243) package.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):4 A
Voltage - Collector Emitter Breakdown (Max):40 V
Vce Saturation (Max) @ Ib, Ic:355mV @ 500mA, 5A
Current - Collector Cutoff (Max):100nA
DC Current Gain (hFE) (Min) @ Ic, Vce:250 @ 2A, 2V
Power - Max:1.6 W
Frequency - Transition:70MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-243AA
Supplier Device Package:SOT-89
0 Remaining View Similar

In Stock

$0.16
3,917

Please send RFQ , we will respond immediately.

Same Series
PBSS5540X,135
PBSS5540X,135
TRANS PNP 40V 4A SOT89

Similar Products

Part Number PBSS4540X,135 PBSS5540X,135 PBSS4520X,135
Manufacturer Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active Active
Transistor Type NPN PNP NPN
Current - Collector (Ic) (Max) 4 A 4 A 5 A
Voltage - Collector Emitter Breakdown (Max) 40 V 40 V 20 V
Vce Saturation (Max) @ Ib, Ic 355mV @ 500mA, 5A 375mV @ 500mA, 5A 220mV @ 500mA, 5A
Current - Collector Cutoff (Max) 100nA 100nA (ICBO) 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce 250 @ 2A, 2V 150 @ 2A, 2V 250 @ 2A, 2V
Power - Max 1.6 W 1.6 W 550 mW
Frequency - Transition 70MHz 60MHz 125MHz
Operating Temperature 150°C (TJ) 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case TO-243AA TO-243AA TO-243AA
Supplier Device Package SOT-89 SOT-89 SOT-89
