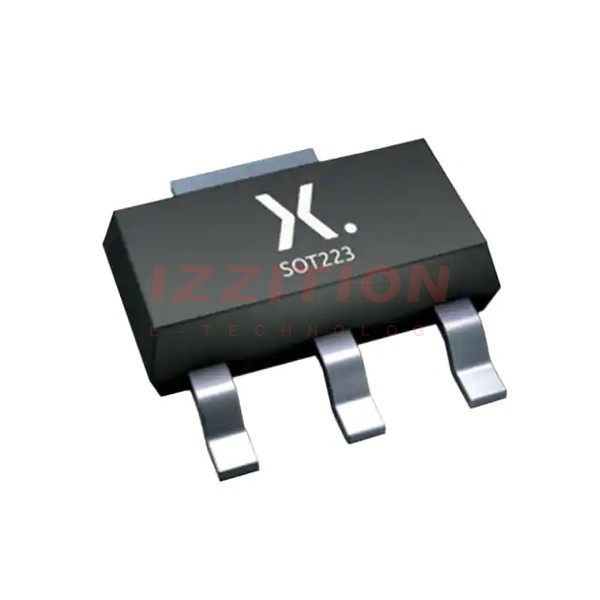

PBHV9540Z,115
  • Share:

Nexperia USA Inc. PBHV9540Z,115

Manufacturer No:
PBHV9540Z,115
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS PNP 400V 0.5A SOT223
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PBHV9540Z,115 is a high-performance PNP general-purpose transistor manufactured by Nexperia USA Inc. This component is designed to offer reliable and efficient operation in a variety of electronic circuits. With its robust construction and advanced semiconductor technology, the PBHV9540Z,115 is suitable for applications requiring high current handling and low noise operation.

Key Specifications

Parameter Value
Type PNP General Purpose Transistor
Package SOT23 (TO-236AB)
Collector-Base Voltage (VCB) 40 V
Collector-Emitter Voltage (VCE) 40 V
Emitter-Base Voltage (VEB) 5 V
Collector Current (IC) 1 A
Base Current (IB) 50 mA
Transition Frequency (fT) 100 MHz
Operating Temperature Range -55°C to +150°C

Key Features

  • High current handling capability up to 1 A.
  • Low noise operation, making it suitable for audio and signal processing applications.
  • Compact SOT23 package, ideal for space-constrained designs.
  • Wide operating temperature range from -55°C to +150°C.
  • High transition frequency of 100 MHz, suitable for high-frequency applications.

Applications

  • General-purpose switching and amplification in electronic circuits.
  • Audio and signal processing applications due to its low noise characteristics.
  • Automotive and industrial control systems where high reliability and temperature stability are required.
  • Consumer electronics such as home appliances and gaming consoles.

Q & A

  1. What is the type of the PBHV9540Z,115 transistor?

    The PBHV9540Z,115 is a PNP general-purpose transistor.

  2. What is the maximum collector current of the PBHV9540Z,115?

    The maximum collector current is 1 A.

  3. What is the package type of the PBHV9540Z,115?

    The package type is SOT23 (TO-236AB).

  4. What is the operating temperature range of the PBHV9540Z,115?

    The operating temperature range is from -55°C to +150°C.

  5. What is the transition frequency of the PBHV9540Z,115?

    The transition frequency is 100 MHz.

  6. Is the PBHV9540Z,115 suitable for high-frequency applications?

    Yes, it is suitable due to its high transition frequency.

  7. Can the PBHV9540Z,115 be used in automotive applications?

    Yes, it can be used in automotive applications due to its high reliability and temperature stability.

  8. What are some common applications of the PBHV9540Z,115?

    Common applications include general-purpose switching, audio and signal processing, and industrial control systems.

  9. Where can I purchase the PBHV9540Z,115?

    You can purchase it from distributors such as DigiKey, Mouser Electronics, and Arrow Electronics.

  10. What is the maximum collector-base voltage of the PBHV9540Z,115?

    The maximum collector-base voltage is 40 V.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):400 V
Vce Saturation (Max) @ Ib, Ic:320mV @ 100mA, 500mA
Current - Collector Cutoff (Max):100nA
DC Current Gain (hFE) (Min) @ Ic, Vce:80 @ 300mA, 10V
Power - Max:1.45 W
Frequency - Transition:30MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-261-4, TO-261AA
Supplier Device Package:SOT-223
0 Remaining View Similar

In Stock

$0.59
1,509

Please send RFQ , we will respond immediately.

Similar Products

Part Number PBHV9540Z,115 PBHV8540Z,115 PBHV9040Z,115
Manufacturer Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active Active
Transistor Type PNP NPN PNP
Current - Collector (Ic) (Max) 500 mA 500 mA 250 mA
Voltage - Collector Emitter Breakdown (Max) 400 V 400 V 400 V
Vce Saturation (Max) @ Ib, Ic 320mV @ 100mA, 500mA 250mV @ 60mA, 300mA 200mV @ 20mA, 100mA
Current - Collector Cutoff (Max) 100nA 100nA 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce 80 @ 300mA, 10V 10 @ 300mA, 10V 80 @ 100mA, 10V
Power - Max 1.45 W 1.4 W 1.4 W
Frequency - Transition 30MHz 30MHz 55MHz
Operating Temperature 150°C (TJ) 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case TO-261-4, TO-261AA TO-261-4, TO-261AA TO-261-4, TO-261AA
Supplier Device Package SOT-223 SOT-223 SOT-223
