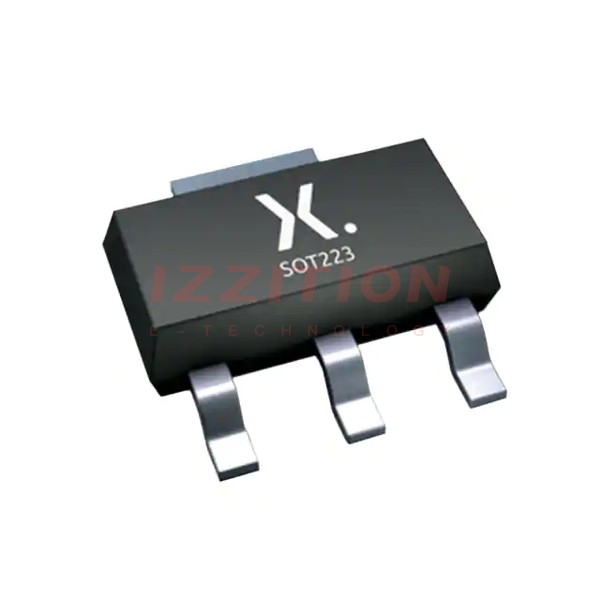

Nexperia USA Inc. PBHV8540Z,115

Manufacturer No:
PBHV8540Z,115
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS NPN 400V 0.5A SOT223
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PBHV8540Z,115 is a high-performance NPN bipolar junction transistor (BJT) manufactured by Nexperia USA Inc. This transistor is designed for a wide range of applications requiring high voltage and current handling capabilities. It is packaged in a surface-mount SOT-223 format, making it suitable for modern electronic designs where space efficiency is crucial.

Key Specifications

ParameterValue
Transistor TypeNPN Bipolar Junction Transistor (BJT)
Maximum Collector-Emitter Voltage (Vceo)400 V
Maximum Collector Current (Ic)500 mA
Maximum Power Dissipation (Pd)1.4 W
Transition Frequency (fT)30 MHz
Package TypeSOT-223 (Surface Mount)

Key Features

  • High voltage handling capability up to 400 V
  • High current handling capability up to 500 mA
  • High transition frequency of 30 MHz, suitable for high-frequency applications
  • Compact SOT-223 surface-mount package for space-efficient designs
  • Durable construction for reliable performance in various environments

Applications

The PBHV8540Z,115 is versatile and can be used in a variety of applications, including:

  • Power amplifiers and switching circuits
  • High-frequency amplifiers and oscillators
  • Automotive and industrial control systems
  • Audio and video equipment
  • General-purpose amplification and switching in electronic circuits

Q & A

  1. What is the maximum collector-emitter voltage of the PBHV8540Z,115?
    The maximum collector-emitter voltage (Vceo) is 400 V.
  2. What is the maximum collector current of the PBHV8540Z,115?
    The maximum collector current (Ic) is 500 mA.
  3. What is the transition frequency of the PBHV8540Z,115?
    The transition frequency (fT) is 30 MHz.
  4. What is the package type of the PBHV8540Z,115?
    The package type is SOT-223 (surface mount).
  5. What is the maximum power dissipation of the PBHV8540Z,115?
    The maximum power dissipation (Pd) is 1.4 W.
  6. What are some common applications of the PBHV8540Z,115?
    Common applications include power amplifiers, high-frequency amplifiers, automotive and industrial control systems, and general-purpose amplification and switching.
  7. Is the PBHV8540Z,115 suitable for high-frequency applications?
    Yes, with a transition frequency of 30 MHz, it is suitable for high-frequency applications.
  8. What is the advantage of the SOT-223 package?
    The SOT-223 package is compact and suitable for space-efficient designs.
  9. Who manufactures the PBHV8540Z,115?
    The PBHV8540Z,115 is manufactured by Nexperia USA Inc.
  10. Where can I purchase the PBHV8540Z,115?
    You can purchase the PBHV8540Z,115 from distributors such as Digi-Key, Mouser, and other authorized suppliers.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):400 V
Vce Saturation (Max) @ Ib, Ic:250mV @ 60mA, 300mA
Current - Collector Cutoff (Max):100nA
DC Current Gain (hFE) (Min) @ Ic, Vce:10 @ 300mA, 10V
Power - Max:1.4 W
Frequency - Transition:30MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-261-4, TO-261AA
Supplier Device Package:SOT-223
0 Remaining View Similar

In Stock

$0.57
1,318

Please send RFQ , we will respond immediately.

Similar Products

Part Number PBHV8540Z,115 PBHV9540Z,115 PBHV8140Z,115 PBHV8540X,115
Manufacturer Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active Active Active
Transistor Type NPN PNP NPN NPN
Current - Collector (Ic) (Max) 500 mA 500 mA 1 A 500 mA
Voltage - Collector Emitter Breakdown (Max) 400 V 400 V 400 V 400 V
Vce Saturation (Max) @ Ib, Ic 250mV @ 60mA, 300mA 320mV @ 100mA, 500mA 250mV @ 200mA, 1A 250mV @ 60mA, 300mA
Current - Collector Cutoff (Max) 100nA 100nA 100nA 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce 10 @ 300mA, 10V 80 @ 300mA, 10V 35 @ 500mA, 10V 100 @ 50mA, 10V
Power - Max 1.4 W 1.45 W 1.45 W 520 mW
Frequency - Transition 30MHz 30MHz 25MHz 30MHz
Operating Temperature 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case TO-261-4, TO-261AA TO-261-4, TO-261AA TO-261-4, TO-261AA TO-243AA
Supplier Device Package SOT-223 SOT-223 SOT-223 SOT-89
