BC817-16QBH-QZ
  • Share:

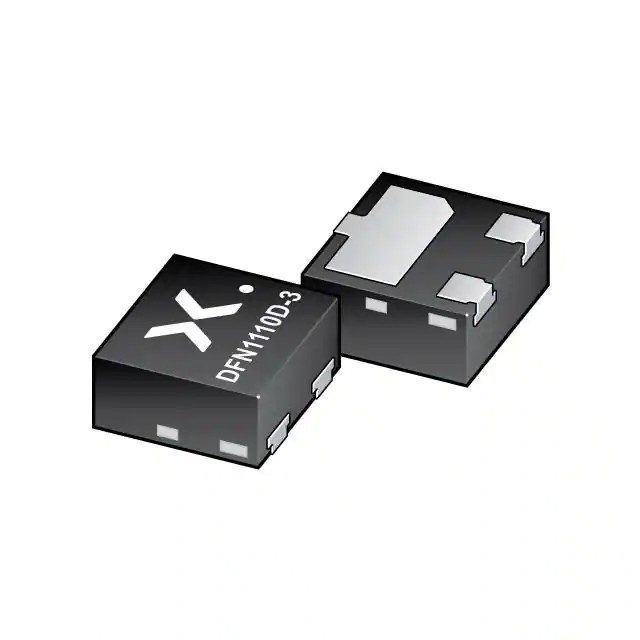

Nexperia USA Inc. BC817-16QBH-QZ

Manufacturer No:
BC817-16QBH-QZ
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS NPN 45V 0.5A DFN1110D-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC817-16QBH-QZ is an NPN general-purpose transistor manufactured by Nexperia USA Inc. This transistor is part of the BC817 series, known for its high current and versatility in various applications. It is packaged in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package, making it suitable for compact and efficient designs.

Key Specifications

Type number Package version Package name Size (mm) Channel type Ptot (mW) VCEO [max] (V) IC [max] (mA) hFE [min] hFE [max] TJ [max] (°C) Automotive qualified
BC817-16-Q SOT23 SOT23 2.9 x 1.3 x 1 NPN 250.0 45.0 500.0 100.0 250.0 150 Yes

Key Features

  • High current capability: Up to 500 mA.
  • Three current gain selections: Offering flexibility in design.
  • Automotive qualified: Compliant with AEC-Q101 standards, making it suitable for automotive applications.
  • Compact SOT23 package: Ideal for space-constrained designs.
  • General-purpose switching and amplification: Versatile for various applications.

Applications

The BC817-16QBH-QZ transistor is widely used across various industries, including:

  • Automotive: For applications requiring AEC-Q101 compliance.
  • Industrial: In control circuits, switching, and amplification.
  • Consumer electronics: In mobile, computing, and wearable devices.
  • Power and computing: For efficient and reliable power management.

Q & A

  1. What is the maximum collector current of the BC817-16QBH-QZ transistor?

    Up to 500 mA.

  2. What is the maximum collector-emitter voltage (VCEO) of the BC817-16QBH-QZ transistor?

    45 V.

  3. What package type is used for the BC817-16QBH-QZ transistor?

    SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.

  4. Is the BC817-16QBH-QZ transistor automotive qualified?

    Yes, it is compliant with AEC-Q101 standards.

  5. What are the current gain (hFE) ranges for the BC817-16QBH-QZ transistor?

    Minimum: 100, Maximum: 250.

  6. What is the maximum junction temperature (TJ) for the BC817-16QBH-QZ transistor?

    150°C.

  7. What are some common applications for the BC817-16QBH-QZ transistor?

    Automotive, industrial, consumer electronics, power, and computing.

  8. What is the PNP complement for the BC817-16QBH-QZ transistor?

    BC807-16-Q.

  9. How does the BC817-16QBH-QZ transistor contribute to efficient designs?

    It offers high current capability, compact packaging, and three current gain selections, making it efficient for various applications.

  10. Can the BC817-16QBH-QZ transistor be used in general-purpose switching and amplification?

    Yes, it is suitable for both switching and amplification applications.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):45 V
Vce Saturation (Max) @ Ib, Ic:700mV @ 50mA, 500mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 100mA, 1V
Power - Max:420 mW
Frequency - Transition:100MHz
Operating Temperature:175°C (TJ)
Mounting Type:Surface Mount, Wettable Flank
Package / Case:3-XDFN Exposed Pad
Supplier Device Package:DFN1110D-3
0 Remaining View Similar

In Stock

$0.32
963
