Overview

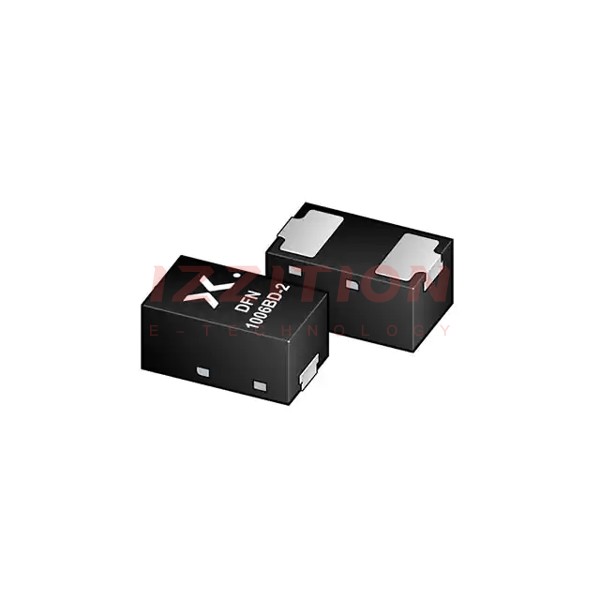

The BAS21LS-QYL is a high-voltage switching diode produced by Nexperia USA Inc. This component is designed for high-voltage, high-speed switching applications and is encapsulated in a SOT-23 surface mount package. The device contains two electrically isolated high-voltage switching diodes, making it suitable for a variety of applications requiring reliable and efficient switching performance.
Key Specifications
| Parameter | Value |
|---|---|
| Package Type | SOT-23 (TO-236) |
| Forward Voltage (Vf) | 1.25 V |
| Reverse Current (Ir) | 100 nA |
| Maximum Operating Temperature | +150°C |
| Minimum Operating Temperature | -55°C |
| Maximum Reverse Voltage (Vr) | 250 V |
| Maximum Forward Current (If) | 0.2 A |
| Reverse Recovery Time (trr) | 50 ns |
| Junction Capacitance (Cj) | 5 pF |
Key Features
- AEC-Q101 qualified and PPAP capable, making it suitable for automotive and other demanding applications.
- Pb-free, halogen-free/BFR-free, and RoHS compliant.
- High voltage and high speed switching capabilities.
- Electrically isolated diodes within a single package.
- Compact SOT-23 surface mount package.
Applications
The BAS21LS-QYL is ideal for various high-voltage and high-speed switching applications, including but not limited to:
- Automotive systems requiring high reliability and compliance with automotive standards.
- Industrial control systems where high voltage and speed are critical.
- Consumer electronics that demand efficient and reliable switching performance.
- Telecommunication equipment where high-speed data transmission is necessary.
Q & A
- What is the package type of the BAS21LS-QYL? The BAS21LS-QYL is packaged in a SOT-23 (TO-236) surface mount package.
- What is the forward voltage (Vf) of the BAS21LS-QYL? The forward voltage (Vf) is 1.25 V.
- What is the maximum reverse voltage (Vr) of the BAS21LS-QYL? The maximum reverse voltage (Vr) is 250 V.
- What is the maximum operating temperature of the BAS21LS-QYL? The maximum operating temperature is +150°C.
- Is the BAS21LS-QYL RoHS compliant? Yes, the BAS21LS-QYL is Pb-free, halogen-free/BFR-free, and RoHS compliant.
- What are the typical applications of the BAS21LS-QYL? Typical applications include automotive systems, industrial control systems, consumer electronics, and telecommunication equipment.
- What is the reverse recovery time (trr) of the BAS21LS-QYL? The reverse recovery time (trr) is 50 ns.
- Is the BAS21LS-QYL AEC-Q101 qualified? Yes, the BAS21LS-QYL is AEC-Q101 qualified and PPAP capable.
- What is the junction capacitance (Cj) of the BAS21LS-QYL? The junction capacitance (Cj) is 5 pF.
- What is the minimum operating temperature of the BAS21LS-QYL? The minimum operating temperature is -55°C.
