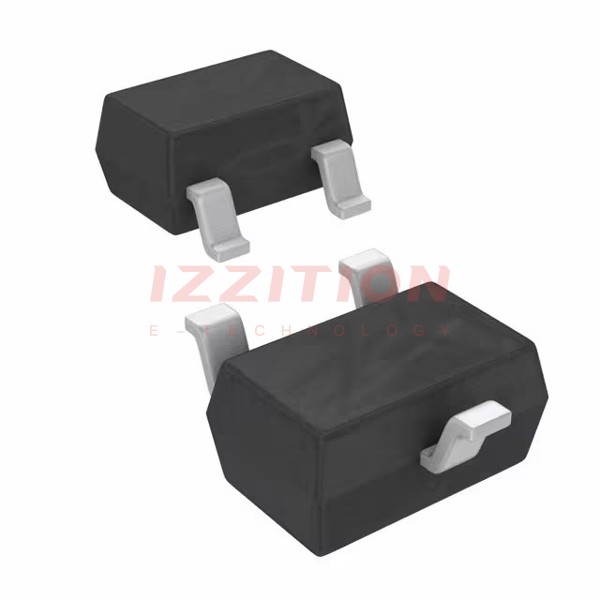

Micro Commercial Co BC857BWHE3-TP

Manufacturer No:
BC857BWHE3-TP
Manufacturer:
Micro Commercial Co
Package:
Tape & Reel (TR)
Description:
TRANS PNP 45V 0.1A SOT323
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC857BWHE3-TP is a PNP general-purpose transistor manufactured by Micro Commercial Components (MCC). This transistor is part of the BC857 series, which includes variants such as BC857A, BC857B, and BC857C. It is housed in a SOT-23 package, making it suitable for surface-mount applications. The BC857 series is known for its high current gain, low collector-emitter saturation voltage, and low noise characteristics, making it ideal for various electronic circuits.

Key Specifications

Parameter Symbol Min Typ Max Units Conditions
Collector-Emitter Voltage VCEO - - -45 V -
Collector Current IC - - -100 mA -
Peak Collector Current ICM - - -200 mA -
Emitter-Base Voltage VEBO - - -5 V -
Collector-Base Voltage VCBO - - -50 V -
Power Dissipation Ptot - - 250 mW Tamb ≤ 25°C
Junction Temperature Tj - - 150 °C -
Storage Temperature Tstg -65 - 150 °C -
DC Current Gain (hFE) - 125 - 800 - VCE = -5 V, IC = -2 mA
Collector-Emitter Saturation Voltage VCE(sat) - - 300 mV IC = -10 mA, IB = -0.5 mA
Base-Emitter Saturation Voltage VBE(sat) - - 750 mV IC = -10 mA, IB = -0.5 mA

Key Features

  • High Current Gain: The BC857 series offers a high DC current gain (hFE) ranging from 125 to 800, making it suitable for amplifier and switching applications.
  • Low Collector-Emitter Saturation Voltage: The transistor has a low VCE(sat) of up to 300 mV, which is beneficial for reducing power losses in switching circuits.
  • Low Noise: It exhibits low noise characteristics between 30 Hz and 15 kHz, making it suitable for audio frequency (AF) applications.
  • Halogen-Free and RoHS Compliant: The BC857 series is halogen-free and RoHS compliant, ensuring environmental sustainability and compliance with regulatory standards.
  • Wide Operating Temperature Range: The transistor can operate over a wide temperature range from -55°C to 150°C, making it versatile for various environmental conditions.

Applications

  • Audio Frequency (AF) Input Stages: The BC857 series is well-suited for AF input stages due to its low noise characteristics and high current gain.
  • Driver Applications: It can be used in driver applications where high current gain and low saturation voltages are required.
  • General-Purpose Amplifier and Switching Circuits: The transistor is versatile and can be used in a variety of general-purpose amplifier and switching circuits.

Q & A

  1. What is the maximum collector-emitter voltage (VCEO) for the BC857 series?

    The maximum collector-emitter voltage (VCEO) for the BC857 series is -45 V.

  2. What is the peak collector current (ICM) rating for the BC857 series?

    The peak collector current (ICM) rating for the BC857 series is -200 mA.

  3. What is the typical DC current gain (hFE) for the BC857 series?

    The typical DC current gain (hFE) for the BC857 series ranges from 125 to 800.

  4. Is the BC857 series RoHS compliant?

    Yes, the BC857 series is RoHS compliant and halogen-free.

  5. What is the operating junction temperature range for the BC857 series?

    The operating junction temperature range for the BC857 series is from -55°C to 150°C.

  6. What are the typical applications for the BC857 series?

    The BC857 series is typically used in AF input stages, driver applications, and general-purpose amplifier and switching circuits.

  7. What is the collector-emitter saturation voltage (VCE(sat)) for the BC857 series?

    The collector-emitter saturation voltage (VCE(sat)) for the BC857 series is up to 300 mV.

  8. What is the base-emitter saturation voltage (VBE(sat)) for the BC857 series?

    The base-emitter saturation voltage (VBE(sat)) for the BC857 series is up to 750 mV.

  9. What is the power dissipation (Ptot) rating for the BC857 series at ambient temperature ≤ 25°C?

    The power dissipation (Ptot) rating for the BC857 series at ambient temperature ≤ 25°C is 250 mW.

  10. Is the BC857 series suitable for high-frequency applications?

    Yes, the BC857 series has a current gain-bandwidth product (fT) that makes it suitable for high-frequency applications.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):45 V
Vce Saturation (Max) @ Ib, Ic:650mV @ 5mA, 100mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:220 @ 2mA, 5V
Power - Max:150 mW
Frequency - Transition:100MHz
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-70, SOT-323
Supplier Device Package:SOT-323
0 Remaining View Similar

In Stock

$0.28
3,544

Please send RFQ , we will respond immediately.
