Overview

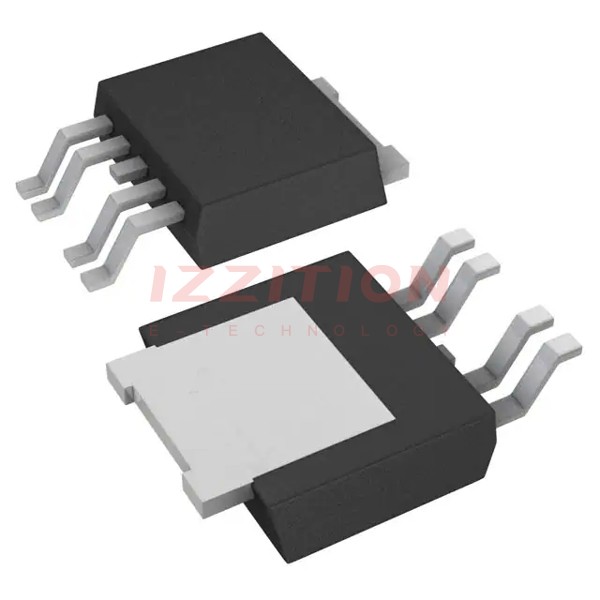

The BTS462T, produced by Infineon Technologies, is a high-side power switch that integrates a vertical power FET with embedded protection and diagnostic functions. This smart power switch is designed for automotive and other demanding applications, offering a robust and reliable solution for managing power distribution. It features a ground-referenced CMOS compatible input and is monolithically integrated in Smart SIPMOS technology, ensuring high performance and reliability.
Key Specifications
| Parameter | Value |
|---|---|
| Supply Voltage (Vbb) | 4.5 V to 40 V |
| Operating Temperature (Tj) | -40°C to 150°C |
| Storage Temperature (Tstg) | -40°C to 150°C |
| Package Type | PG-TO-252 |
| Current Limitation | Yes, with adjustable current limit |
| Thermal Shutdown | Yes, with restart |
| Overvoltage Protection | Yes, including load dump protection |
| Undervoltage Shutdown | Yes |
| ESD Protection | Yes |
| Standby Current | Very low |
| RoHS Compliance | Yes, Green Product |
Key Features
- Overload protection
- Current limitation
- Short circuit protection
- Thermal shutdown with restart
- Overvoltage protection (including load dump)
- Shutdown when undervoltage
- Fast demagnetization of inductive loads
- Reverse battery protection with external resistor
- Loss GND and loss Vbb protection
- CMOS compatible input
- Electrostatic discharge (ESD) protection
- Very low standby current
Applications
- Body Control Module
- Seat control
- Decentralized Mirror Module
- Decentralized Light Module
- Start&Stop transmission
- HEV Main Battery Pack
- Infotainment System
Q & A
- What is the BTS462T?
The BTS462T is a high-side power switch with an integrated vertical power FET, providing embedded protection and diagnostic functions. - What are the key protection features of the BTS462T?
The BTS462T includes overload protection, current limitation, short circuit protection, thermal shutdown with restart, overvoltage protection, and undervoltage shutdown. - What is the operating temperature range of the BTS462T?
The operating temperature range is -40°C to 150°C. - Is the BTS462T RoHS compliant?
Yes, the BTS462T is a Green Product and is RoHS compliant. - What type of input does the BTS462T have?
The BTS462T has a ground-referenced CMOS compatible input. - Does the BTS462T have ESD protection?
Yes, the BTS462T includes electrostatic discharge (ESD) protection. - What are some potential applications of the BTS462T?
Potential applications include Body Control Module, seat control, decentralized mirror and light modules, Start&Stop transmission, HEV Main Battery Pack, and infotainment systems. - What package type is the BTS462T available in?
The BTS462T is available in the PG-TO-252 package type. - Does the BTS462T support fast demagnetization of inductive loads?
Yes, the BTS462T supports fast demagnetization of inductive loads. - How does the BTS462T handle reverse battery conditions?
The BTS462T provides reverse battery protection with the use of an external resistor.
