BCW60DE6327
  • Share:

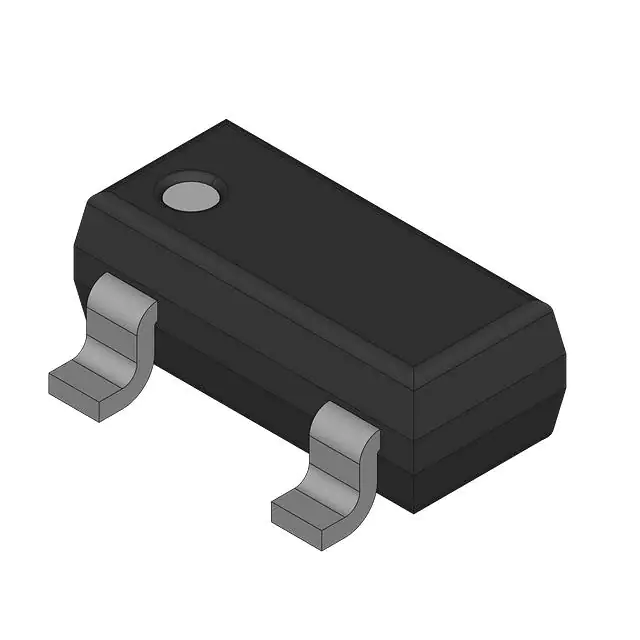

Infineon Technologies BCW60DE6327

Manufacturer No:
BCW60DE6327
Manufacturer:
Infineon Technologies
Package:
Bulk
Description:
TRANS NPN 32V 0.1A SOT23
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BCW60DE6327 is a bipolar junction transistor (BJT) produced by Infineon Technologies. This NPN transistor is designed for general-purpose applications and is packaged in a surface-mount PG-SOT23 case. It is known for its reliability and performance in various electronic circuits.

Key Specifications

ParameterValue
Transistor TypeNPN
Collector-Emitter Voltage (Vce)32 V
Collector Current (Ic)100 mA
Frequency (fT)250 MHz
Power Dissipation (Pd)330 mW
PackagePG-SOT23 (Surface Mount)

Key Features

  • High frequency operation up to 250 MHz
  • Low power consumption with a power dissipation of 330 mW
  • Compact PG-SOT23 surface-mount package for space-efficient designs
  • General-purpose NPN transistor suitable for a wide range of applications

Applications

The BCW60DE6327 is suitable for various general-purpose applications, including but not limited to:

  • Amplifier circuits
  • Switching circuits
  • Audio and video equipment
  • Automotive electronics
  • Industrial control systems

Q & A

  1. What is the collector-emitter voltage rating of the BCW60DE6327?
    The collector-emitter voltage rating is 32 V.
  2. What is the maximum collector current of the BCW60DE6327?
    The maximum collector current is 100 mA.
  3. What is the frequency range of the BCW60DE6327?
    The transistor operates up to 250 MHz.
  4. What is the power dissipation of the BCW60DE6327?
    The power dissipation is 330 mW.
  5. What is the package type of the BCW60DE6327?
    The package type is PG-SOT23 (surface mount).
  6. What are some common applications of the BCW60DE6327?
    It is used in amplifier circuits, switching circuits, audio and video equipment, automotive electronics, and industrial control systems.
  7. Who is the manufacturer of the BCW60DE6327?
    The manufacturer is Infineon Technologies.
  8. What type of transistor is the BCW60DE6327?
    The BCW60DE6327 is an NPN bipolar junction transistor.
  9. Is the BCW60DE6327 suitable for high-frequency applications?
    Yes, it is suitable for high-frequency applications up to 250 MHz.
  10. What are the advantages of using the BCW60DE6327 in electronic circuits?
    It offers low power consumption, high frequency operation, and a compact surface-mount package.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):32 V
Vce Saturation (Max) @ Ib, Ic:550mV @ 1.25mA, 50mA
Current - Collector Cutoff (Max):20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:380 @ 2mA, 5V
Power - Max:330 mW
Frequency - Transition:250MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:PG-SOT23
0 Remaining View Similar

In Stock

$0.03
30,281

Please send RFQ , we will respond immediately.
