Overview

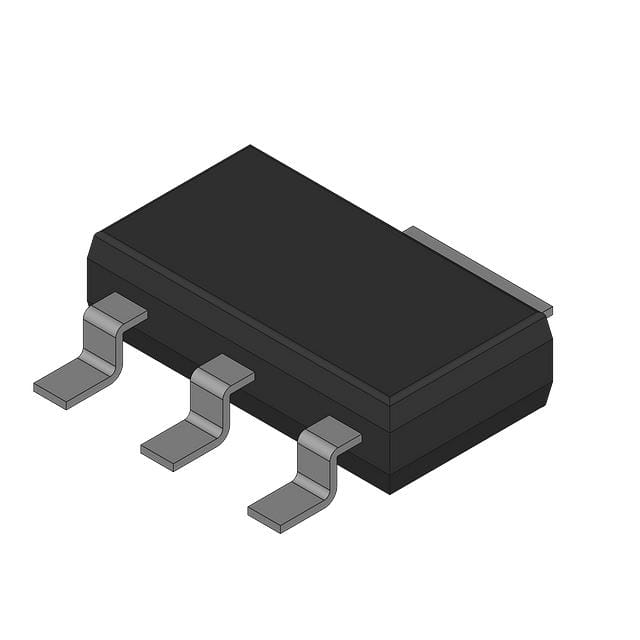

The BCP69-25E6327 is a general-purpose bipolar junction transistor (BJT) manufactured by Infineon Technologies. This transistor is designed for a wide range of applications in general electronics, offering reliable performance and robust characteristics. It is packaged in a SOT-223-4 surface mount format, making it suitable for modern electronic designs that require compact and efficient components.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage Rating (Vce) | 20 V |
| Current Rating (Ic) | 1 A |
| Frequency (fT) | 100 MHz |
| Power Dissipation (Ptot) | 3 W |
| Package Type | SOT-223-4 (Surface Mount) |
Key Features
- General-purpose bipolar junction transistor suitable for a variety of electronic applications.
- High voltage rating of 20 V and current rating of 1 A.
- High frequency capability with a transition frequency (fT) of 100 MHz.
- Compact SOT-223-4 surface mount package for space-efficient designs.
- Robust and reliable performance in various operating conditions.
Applications
The BCP69-25E6327 is versatile and can be used in a wide range of electronic applications, including:
- Amplifier circuits
- Switching circuits
- Audio and video equipment
- Automotive electronics
- Industrial control systems
Q & A
- What is the voltage rating of the BCP69-25E6327 transistor?
The voltage rating (Vce) of the BCP69-25E6327 transistor is 20 V. - What is the current rating of the BCP69-25E6327 transistor?
The current rating (Ic) of the BCP69-25E6327 transistor is 1 A. - What is the package type of the BCP69-25E6327 transistor?
The BCP69-25E6327 transistor is packaged in a SOT-223-4 surface mount format. - What is the transition frequency (fT) of the BCP69-25E6327 transistor?
The transition frequency (fT) of the BCP69-25E6327 transistor is 100 MHz. - What are some common applications of the BCP69-25E6327 transistor?
The BCP69-25E6327 transistor is commonly used in amplifier circuits, switching circuits, audio and video equipment, automotive electronics, and industrial control systems. - Is the BCP69-25E6327 transistor suitable for high-power applications?
The BCP69-25E6327 transistor has a power dissipation rating of 3 W, making it suitable for medium to high-power applications. - Where can I find detailed specifications for the BCP69-25E6327 transistor?
Detailed specifications for the BCP69-25E6327 transistor can be found in the datasheet available on the Infineon Technologies website or through distributors like Digi-Key and Mouser. - Is the BCP69-25E6327 transistor lead-free?
Yes, the BCP69-25E6327 transistor is lead-free, making it compliant with environmental regulations. - What is the typical use case for the BCP69-25E6327 transistor in automotive electronics?
In automotive electronics, the BCP69-25E6327 transistor can be used in various control circuits, such as those for lighting, sensors, and other automotive systems. - Can the BCP69-25E6327 transistor be used in high-frequency applications?
Yes, the BCP69-25E6327 transistor is suitable for high-frequency applications due to its transition frequency of 100 MHz.
