Overview

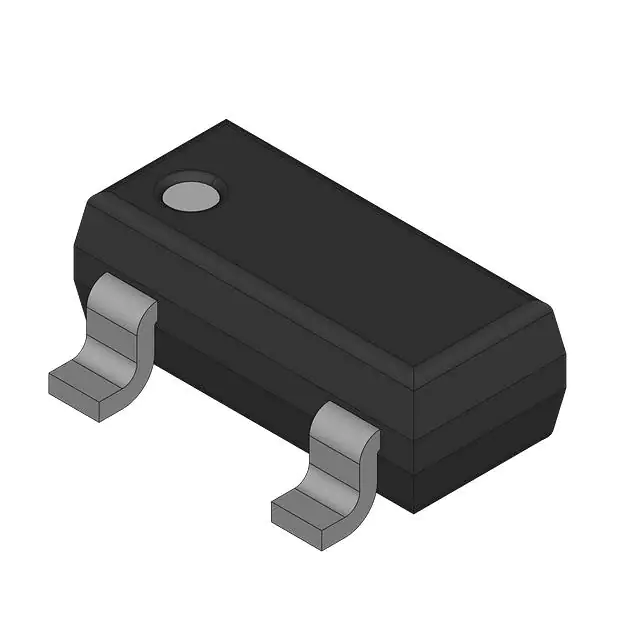

The BC858BE6327 is a bipolar junction transistor (BJT) produced by Infineon Technologies. It is a PNP type transistor, designed for small signal applications. This transistor is packaged in a surface mount TO-236-3 (SC-59) package, making it suitable for a variety of modern electronic designs where space is a constraint.
Key Specifications
| Parameter | Value |
|---|---|
| Transistor Type | PNP Bipolar Junction Transistor (BJT) |
| Collector-Base Voltage (Vcb) | 30 V |
| Collector-Emitter Voltage (Vce) | 30 V |
| Emitter-Base Voltage (Veb) | 5 V |
| Collector Current (Ic) | 100 mA |
| Power Dissipation (Pd) | 330 mW |
| Transition Frequency (ft) | 250 MHz |
| Package Type | TO-236-3 (SC-59), Surface Mount |
Key Features
- PNP bipolar junction transistor suitable for small signal applications.
- High transition frequency of 250 MHz, making it suitable for high-frequency applications.
- Low power dissipation of 330 mW, contributing to energy efficiency.
- Surface mount package (TO-236-3, SC-59) for compact designs.
- Collector current of 100 mA and collector-base voltage of 30 V, providing robust performance.
Applications
The BC858BE6327 is versatile and can be used in a variety of applications, including:
- Audio amplifiers and audio circuits.
- Switching and amplification in electronic devices.
- High-frequency circuits such as RF amplifiers and oscillators.
- Automotive and industrial control systems where small signal transistors are required.
Q & A
- What is the type of the BC858BE6327 transistor?
The BC858BE6327 is a PNP bipolar junction transistor (BJT). - What is the collector current rating of the BC858BE6327?
The collector current rating is 100 mA. - What is the maximum collector-base voltage for the BC858BE6327?
The maximum collector-base voltage is 30 V. - What is the transition frequency of the BC858BE6327?
The transition frequency is 250 MHz. - What is the package type of the BC858BE6327?
The package type is TO-236-3 (SC-59), which is a surface mount package. - What are some common applications of the BC858BE6327?
Common applications include audio amplifiers, high-frequency circuits, switching and amplification in electronic devices, and automotive and industrial control systems. - What is the power dissipation of the BC858BE6327?
The power dissipation is 330 mW. - Is the BC858BE6327 suitable for high-frequency applications?
Yes, it is suitable for high-frequency applications due to its high transition frequency. - Can the BC858BE6327 be used in automotive systems?
Yes, it can be used in automotive and industrial control systems where small signal transistors are required. - What is the emitter-base voltage rating of the BC858BE6327?
The emitter-base voltage rating is 5 V.
