BC846SE6327
  • Share:

Infineon Technologies BC846SE6327

Manufacturer No:
BC846SE6327
Manufacturer:
Infineon Technologies
Package:
Bulk
Description:
BIPOLAR GEN PURPOSE TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

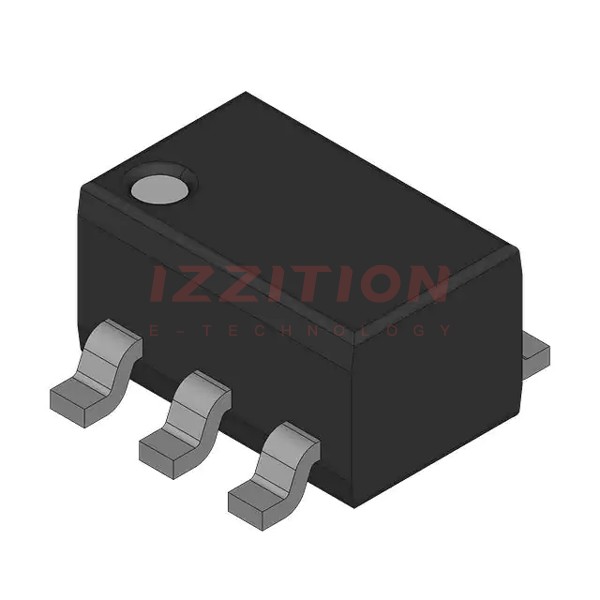

The BC846SE6327 is a dual NPN silicon transistor array produced by Infineon Technologies. This component is designed for use in audio frequency (AF) input stages and driver applications, offering high current gain and low collector-emitter saturation voltage. It is packaged in a SOT-363-6 case, making it suitable for surface mount technology (SMT) assembly.

Key Specifications

ParameterValue
ManufacturerInfineon Technologies AG
Transistor PolarityNPN
ConfigurationDual
Maximum DC Collector Current100 mA
DC Current Gain (hFE) Min200
DC Current Gain (hFE) Max450
Mounting StyleSMD/SMT
Package / CaseSOT-363-6

Key Features

  • High current gain, making it suitable for AF input stages and driver applications.
  • Low collector-emitter saturation voltage, which enhances efficiency in switching and amplification tasks.
  • Dual transistor configuration in a single package, reducing component count and increasing design simplicity.
  • SOT-363-6 package, ideal for surface mount technology and compact designs.

Applications

  • Audio frequency (AF) input stages: The high current gain and low noise characteristics make it ideal for audio signal processing.
  • Driver applications: Suitable for driving small loads such as LEDs, relays, and other low-power devices.
  • General-purpose amplification: Can be used in various amplification circuits where high gain and low saturation voltage are required.

Q & A

  1. What is the maximum DC collector current of the BC846SE6327?
    The maximum DC collector current is 100 mA.
  2. What is the transistor polarity of the BC846SE6327?
    The transistor polarity is NPN.
  3. What is the package type of the BC846SE6327?
    The package type is SOT-363-6.
  4. What are the typical applications of the BC846SE6327?
    Typical applications include AF input stages, driver applications, and general-purpose amplification.
  5. What is the minimum DC current gain (hFE) of the BC846SE6327?
    The minimum DC current gain (hFE) is 200.
  6. What is the maximum DC current gain (hFE) of the BC846SE6327?
    The maximum DC current gain (hFE) is 450.
  7. Why is the BC846SE6327 preferred for audio frequency applications?
    It is preferred due to its high current gain and low collector-emitter saturation voltage.
  8. Can the BC846SE6327 be used in surface mount technology (SMT) designs?
    Yes, it can be used in SMT designs due to its SOT-363-6 package.
  9. What are the benefits of the dual transistor configuration in the BC846SE6327?
    The dual configuration reduces component count and increases design simplicity.
  10. Where can I find detailed specifications and datasheets for the BC846SE6327?
    Detailed specifications and datasheets can be found on the official Infineon Technologies website, as well as through distributors like Mouser and Win Source.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
0 Remaining View Similar

In Stock

-
312

Please send RFQ , we will respond immediately.
