Overview

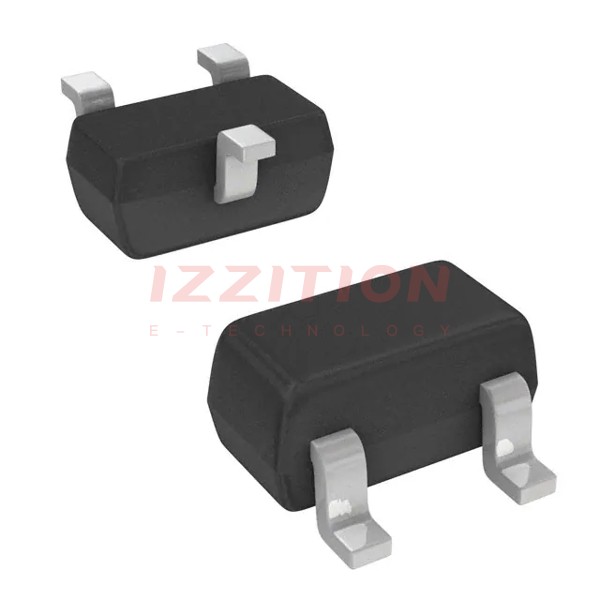

The MMBT2222AT-7-F is a high-performance NPN small signal surface mount transistor manufactured by Diodes Incorporated. This transistor is part of the MMBT2222AT series and is known for its epitaxial planar die construction and ultra-small SOT-523 package. It is designed to offer excellent electrical characteristics and reliability, making it suitable for a wide range of electronic applications.
Key Specifications
| Characteristic | Symbol | Value | Unit |
|---|---|---|---|
| Polarity | - | NPN | - |
| Collector-Base Voltage (Max) | VCBO | 75 | V |
| Collector-Emitter Voltage (Max) | VCEO | 40 | V |
| Emitter-Base Voltage (Max) | VEBO | 6.0 | V |
| Collector Current (Continuous) | IC | 600 | mA |
| Power Dissipation (Total) | Pd | 150 | mW |
| Thermal Resistance, Junction to Ambient | RθJA | 833 | °C/W |
| Operating and Storage Temperature Range | Tj, TSTG | -55 to +150 | °C |
| Mounting Method | - | Surface Mount | - |
| Package Type | - | SOT-523 | - |
| Package Quantity per Reel | - | 3000 | - |
Key Features
- Epitaxial Planar Die Construction: Ensures high reliability and performance.
- Ultra-Small Surface Mount Package (SOT-523): Ideal for space-constrained applications.
- Lead Free/RoHS Compliant: Environmentally friendly and compliant with international regulations.
- 'Green' Device: Made from environmentally friendly materials.
- Complementary PNP Type Available (MMBT2907AT): Allows for balanced circuit design.
- High Current Gain-Bandwidth Product (fT): Up to 300 MHz, suitable for high-frequency applications.
- Low Delay Time and Rise Time: 10 ns and 25 ns respectively, making it suitable for switching applications.
- Molded Plastic Case with UL Flammability Classification Rating 94V-0: Ensures safety and durability.
- Moisture Sensitivity Level 1 per J-STD-020C: Reduces the risk of moisture-related failures.
Applications
- General Purpose Amplification: Suitable for a wide range of amplification tasks due to its high current gain and low noise characteristics.
- Switching Circuits: Fast switching times make it ideal for use in switching applications.
- Audio Amplifiers: Used in audio circuits due to its high frequency response and low distortion.
- Automotive Electronics: Can be used in various automotive electronic systems due to its robustness and reliability.
- Consumer Electronics: Commonly used in consumer electronic devices such as TVs, radios, and other household appliances.
Q & A
- What is the polarity of the MMBT2222AT-7-F transistor?
The MMBT2222AT-7-F is an NPN bipolar transistor.
- What is the maximum collector-emitter voltage for the MMBT2222AT-7-F?
The maximum collector-emitter voltage (VCEO) is 40 V.
- What is the continuous collector current rating of the MMBT2222AT-7-F?
The continuous collector current (IC) is 600 mA.
- What is the power dissipation rating of the MMBT2222AT-7-F?
The total power dissipation (Pd) is 150 mW.
- Is the MMBT2222AT-7-F RoHS compliant?
Yes, the MMBT2222AT-7-F is lead free and RoHS compliant.
- What is the package type and quantity per reel for the MMBT2222AT-7-F?
The package type is SOT-523, and there are 3000 units per reel.
- What is the operating temperature range for the MMBT2222AT-7-F?
The operating and storage temperature range is -55°C to +150°C.
- Does the MMBT2222AT-7-F have a complementary PNP type available?
Yes, the complementary PNP type is the MMBT2907AT.
- What is the current gain-bandwidth product (fT) of the MMBT2222AT-7-F?
The current gain-bandwidth product (fT) is up to 300 MHz.
- What are the typical delay and rise times for the MMBT2222AT-7-F?
The typical delay time (td) is 10 ns, and the typical rise time (tr) is 25 ns.
