Overview

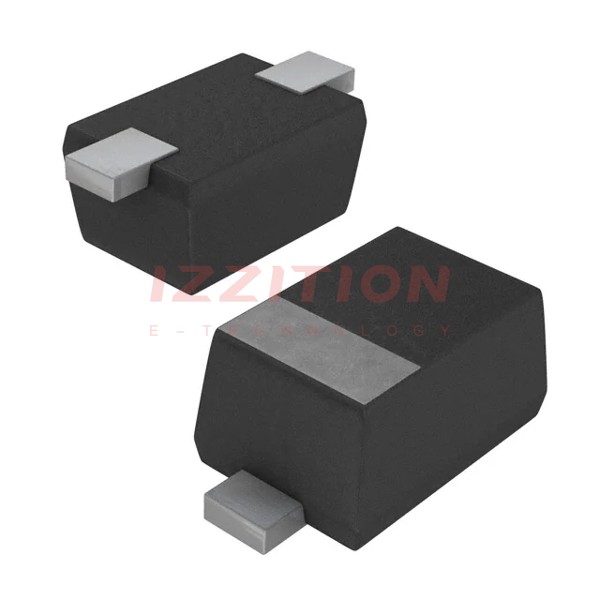

The BAT54-02V-V-G-18 is a small signal Schottky diode produced by Vishay General Semiconductor - Diodes Division. This diode is known for its very low turn-on voltage and fast switching capabilities, making it suitable for a variety of high-frequency and low-voltage applications. The device is packaged in a space-saving SOD-523 case and is protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges. It is also RoHS compliant, ensuring environmental sustainability.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Average Rectified Current | 200 | mA |
| Forward Current | 200 | mA |
| Forward Voltage (Vf) | 800 | mV @ 100 mA |
| Max Operating Temperature | 125 | °C |
| Min Operating Temperature | -65 | °C |
| Max Repetitive Reverse Voltage (Vrrm) | 30 | V |
| Max Reverse Voltage (DC) | 30 | V |
| Mount | Surface Mount | |
| Number of Pins | 2 | |
| Package | Tape and Reel | |
| Peak Non-Repetitive Surge Current | 600 | mA |
| Reverse Recovery Time | 5 | ns |
| RoHS Compliant | Yes |
Key Features
- Very low turn-on voltage and fast switching capabilities.
- Protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges.
- Space-saving SOD-523 package.
- RoHS compliant, ensuring environmental sustainability.
- High temperature soldering guaranteed: 260°C/4 x 10 s at terminals.
- Low forward voltage drop (Vf) of 800 mV at 100 mA.
- Fast reverse recovery time of 5 ns.
Applications
The BAT54-02V-V-G-18 is suitable for various applications requiring low-voltage and high-frequency performance, such as:
- Switching power supplies and DC-DC converters.
- High-frequency rectification and voltage regulation.
- Automotive systems (AEC-Q101 qualified).
- Consumer electronics and telecommunications equipment.
- General-purpose rectification in low-voltage, high-frequency circuits.
Q & A
- What is the maximum operating temperature of the BAT54-02V-V-G-18?
The maximum operating temperature is 125°C.
- What is the minimum operating temperature of the BAT54-02V-V-G-18?
The minimum operating temperature is -65°C.
- What is the maximum repetitive reverse voltage (Vrrm) of the BAT54-02V-V-G-18?
The maximum repetitive reverse voltage (Vrrm) is 30 V.
- What is the forward voltage (Vf) of the BAT54-02V-V-G-18 at 100 mA?
The forward voltage (Vf) at 100 mA is 800 mV.
- What is the reverse recovery time of the BAT54-02V-V-G-18?
The reverse recovery time is 5 ns.
- Is the BAT54-02V-V-G-18 RoHS compliant?
Yes, the BAT54-02V-V-G-18 is RoHS compliant.
- What is the package type of the BAT54-02V-V-G-18?
The package type is SOD-523, and it is supplied in tape and reel packaging.
- What is the peak non-repetitive surge current of the BAT54-02V-V-G-18?
The peak non-repetitive surge current is 600 mA.
- What are some typical applications of the BAT54-02V-V-G-18?
Typical applications include switching power supplies, high-frequency rectification, automotive systems, and general-purpose rectification in low-voltage, high-frequency circuits.
- Is the BAT54-02V-V-G-18 qualified for automotive use?
Yes, the BAT54-02V-V-G-18 is AEC-Q101 qualified for automotive use.
