Overview

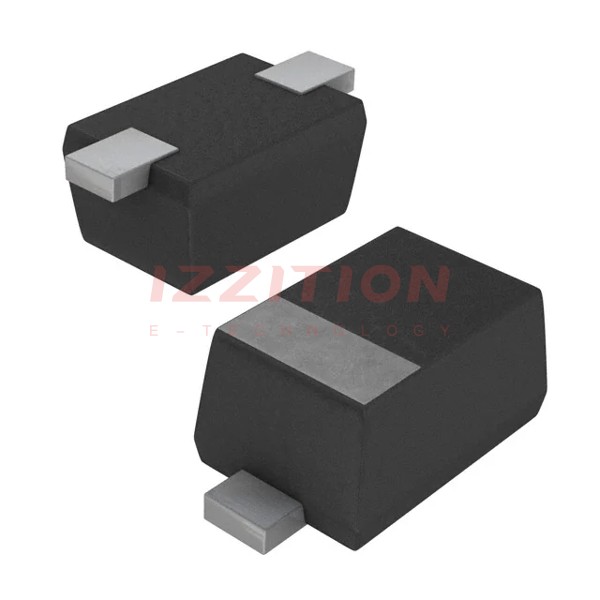

The BAT54-02V-G3-08 is a small signal Schottky diode produced by Vishay General Semiconductor - Diodes Division. This component is designed for high-performance applications requiring low forward voltage and fast switching times. It is packaged in the space-saving SOD-523 (SC-79) package, making it ideal for compact electronic designs. The diode is protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges, and is available in both commercial and AEC-Q101 qualified versions.
Key Specifications
| Parameter | Value |
|---|---|
| Product Status | Active |
| Average Rectified Current-Max | 200 mA |
| Peak Current-Max | 300 mA |
| Reverse Voltage-Max [Vrrm] | 30 V |
| Reverse Current-Max | 2 µA |
| Forward Voltage | 800 mV |
| Diode Capacitance-Max | 10 pF |
| Reverse Recovery Time-Max | 5 ns |
| Operating Temp Range | -55°C to +125°C |
| Leakage Current | 2 µA |
| Power Dissipation | 150 mW |
| Configuration | Single |
| Package Style | SOD-523 (SC-79) |
| Mounting Method | Surface Mount |
Key Features
- Very low turn-on voltage and fast switching times, making it suitable for high-speed applications.
- Protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges.
- AEC-Q101 qualified versions available, ensuring reliability in automotive applications.
- Space-saving SOD-523 package, ideal for compact electronic designs.
- RoHS-compliant, ensuring environmental compliance.
Applications
- Rectification, polarity protection, or signal switching in various electronic circuits.
- Automotive systems due to its AEC-Q101 qualification.
- Industrial and consumer electronics where low forward voltage and fast switching are required.
- High-speed interface solutions due to its low capacitance and leakage characteristics.
Q & A
- What is the maximum average rectified current of the BAT54-02V-G3-08?
200 mA.
- What is the maximum reverse voltage of the BAT54-02V-G3-08?
30 V.
- What is the forward voltage of the BAT54-02V-G3-08?
800 mV.
- What is the operating temperature range of the BAT54-02V-G3-08?
-55°C to +125°C.
- Is the BAT54-02V-G3-08 AEC-Q101 qualified?
- What is the package style of the BAT54-02V-G3-08?
SOD-523 (SC-79).
- What is the mounting method of the BAT54-02V-G3-08?
Surface Mount.
- What is the maximum power dissipation of the BAT54-02V-G3-08?
150 mW.
- Is the BAT54-02V-G3-08 RoHS-compliant?
- What is the reverse recovery time of the BAT54-02V-G3-08?
5 ns.
