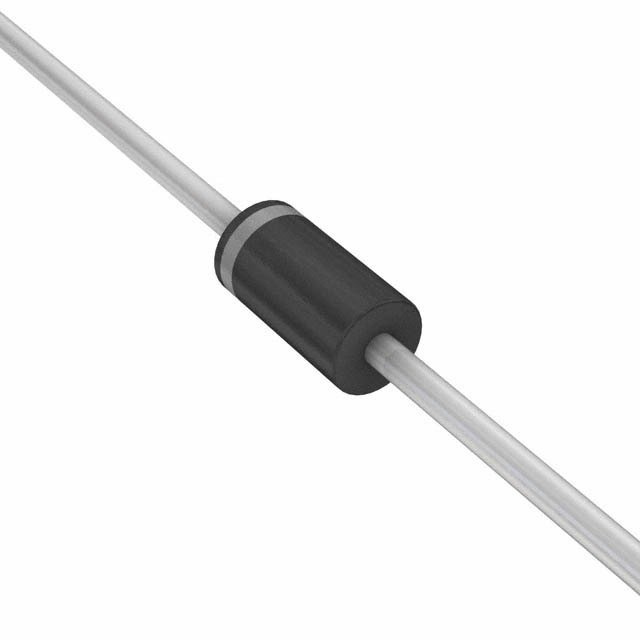

Vishay General Semiconductor - Diodes Division 1N4937GP-M3/73

Manufacturer No:
1N4937GP-M3/73
Manufacturer:
Vishay General Semiconductor - Diodes Division
Package:
Tape & Box (TB)
Description:
DIODE GEN PURP 600V 1A DO204AL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 1N4937GP-M3/73 is a fast switching plastic rectifier diode produced by Vishay General Semiconductor - Diodes Division. This component is part of the 1N4933GP to 1N4937GP series, known for their high reliability and efficiency in various electrical applications. Although the specific part number 1N4937GP-M3/73 is noted as obsolete, it remains relevant for understanding the capabilities and uses of similar rectifier diodes in the series.

Key Specifications

Parameter Symbol 1N4937GP Unit
Maximum Repetitive Peak Reverse Voltage VRRM 600 V
Maximum RMS Voltage VRMS 420 V
Maximum DC Blocking Voltage VDC 600 V
Maximum Average Forward Rectified Current IF(AV) 1.0 A
Peak Forward Surge Current IFSM 30 A
Maximum Instantaneous Forward Voltage VF 1.2 V
Maximum DC Reverse Current IR 5.0 μA μA
Reverse Recovery Time trr 200 ns ns
Typical Junction Capacitance CJ 15 pF pF
Operating Junction and Storage Temperature Range TJ, TSTG -65 to +175 °C °C
Package DO-41 (DO-204AL)

Key Features

  • Superectifier Structure: Ensures high reliability conditions.
  • Cavity-Free Glass Passivated Junction: Enhances durability and performance.
  • Fast Switching: High efficiency due to fast switching capabilities.
  • Low Leakage Current: Minimizes energy loss.
  • High Forward Surge Capability: Handles high surge currents effectively.
  • Solder Dip 275 °C Max.: Compliant with JESD 22-B106 standards.
  • RoHS-Compliant: Meets environmental standards.
  • Matte Tin Plated Leads: Solderable per J-STD-002 and JESD 22-B102.

Applications

The 1N4937GP-M3/73 is suitable for various applications including:

  • Fast Switching Rectification: In power supplies, inverters, and converters.
  • Freewheeling Diodes: For consumer and telecommunication devices.

Q & A

  1. What is the maximum repetitive peak reverse voltage of the 1N4937GP-M3/73?

    The maximum repetitive peak reverse voltage is 600 V.

  2. What is the maximum average forward rectified current for this diode?

    The maximum average forward rectified current is 1.0 A.

  3. What is the typical reverse recovery time of the 1N4937GP-M3/73?

    The typical reverse recovery time is 200 ns.

  4. What is the operating junction and storage temperature range for this diode?

    The operating junction and storage temperature range is -65 to +175 °C.

  5. Is the 1N4937GP-M3/73 RoHS-compliant?
  6. What type of package does the 1N4937GP-M3/73 come in?

    The diode comes in a DO-41 (DO-204AL) package.

  7. What are the typical applications of the 1N4937GP-M3/73?

    Typical applications include fast switching rectification in power supplies, inverters, converters, and as freewheeling diodes for consumer and telecommunication devices.

  8. What is the maximum instantaneous forward voltage for the 1N4937GP-M3/73?

    The maximum instantaneous forward voltage is 1.2 V.

  9. What is the peak forward surge current rating for this diode?

    The peak forward surge current rating is 30 A.

  10. Is the 1N4937GP-M3/73 still in production?

    No, the 1N4937GP-M3/73 is noted as obsolete and no longer manufactured.

Product Attributes

Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):600 V
Current - Average Rectified (Io):1A
Voltage - Forward (Vf) (Max) @ If:1.2 V @ 1 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):200 ns
Current - Reverse Leakage @ Vr:5 µA @ 600 V
Capacitance @ Vr, F:15pF @ 4V, 1MHz
Mounting Type:Through Hole
Package / Case:DO-204AL, DO-41, Axial
Supplier Device Package:DO-204AL (DO-41)
Operating Temperature - Junction:-65°C ~ 175°C
