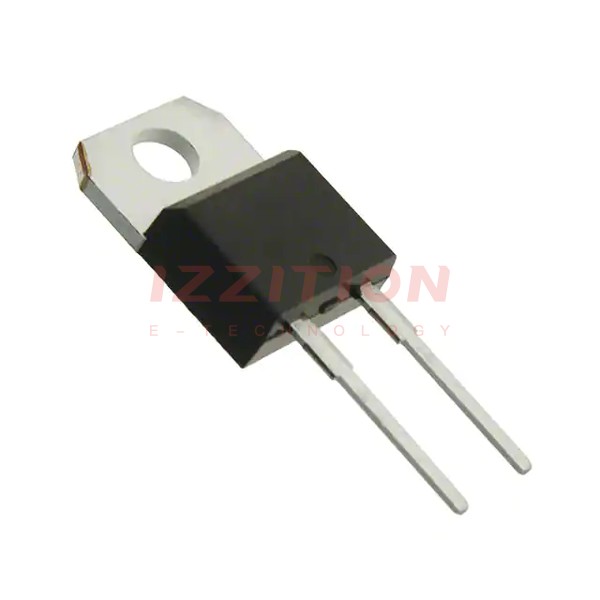

STMicroelectronics STTA806DI

Manufacturer No:
STTA806DI
Manufacturer:
STMicroelectronics
Package:
Bulk
Description:
DIODE GEN PURP 600V 8A TO220AC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STTA806DI is a high-performance, ultra-fast high voltage diode produced by STMicroelectronics. It belongs to the TURBOSWITCH family, known for its high efficiency and low losses. Although the STTA806DI is currently obsolete and no longer manufactured, it remains a significant component in legacy systems and applications requiring high voltage and current handling capabilities.

Key Specifications

ParameterValue
Voltage Rating (V)600V
Current Rating (A)8A
Package TypeTO220AC
Reverse Recovery Time (trr)35ns (typical)
Forward Voltage Drop (Vf)1.2V (typical at 8A)
Operating Junction Temperature-40°C to 150°C

Key Features

  • Ultra-fast switching times with a typical reverse recovery time of 35ns, making it suitable for high-frequency applications.
  • High voltage rating of 600V, ensuring robust performance in high-voltage systems.
  • High current rating of 8A, suitable for applications requiring significant current handling.
  • Low forward voltage drop of 1.2V at 8A, reducing power losses.
  • TURBOSWITCH technology for high performance and efficiency.

Applications

  • Power supplies and DC-DC converters requiring high efficiency and fast switching times.
  • Motor control and drive systems where high voltage and current are necessary.
  • High-frequency switching applications such as inverter systems and resonant converters.
  • Industrial and automotive systems needing robust and reliable high-voltage diodes.

Q & A

  1. What is the voltage rating of the STTA806DI diode?
    The voltage rating of the STTA806DI diode is 600V.
  2. What is the current rating of the STTA806DI diode?
    The current rating of the STTA806DI diode is 8A.
  3. What package type does the STTA806DI come in?
    The STTA806DI comes in a TO220AC package.
  4. Is the STTA806DI still in production?
    No, the STTA806DI is obsolete and no longer manufactured.
  5. What is the typical reverse recovery time of the STTA806DI?
    The typical reverse recovery time of the STTA806DI is 35ns.
  6. What is the forward voltage drop of the STTA806DI at 8A?
    The forward voltage drop of the STTA806DI at 8A is typically 1.2V.
  7. What are some common applications for the STTA806DI?
    Common applications include power supplies, motor control systems, high-frequency switching applications, and industrial/automotive systems.
  8. What technology does the STTA806DI use?
    The STTA806DI uses TURBOSWITCH technology for high performance and efficiency.
  9. What is the operating junction temperature range for the STTA806DI?
    The operating junction temperature range for the STTA806DI is -40°C to 150°C.
  10. Where can I find substitutes for the STTA806DI?
    You can find substitutes for the STTA806DI through distributors like Digi-Key, Mouser, or other electronic component suppliers.

Product Attributes

Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):600 V
Current - Average Rectified (Io):8A
Voltage - Forward (Vf) (Max) @ If:1.75 V @ 8 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):52 ns
Current - Reverse Leakage @ Vr:100 µA @ 600 V
Capacitance @ Vr, F:-
Mounting Type:Through Hole
Package / Case:TO-220-2 Insulated, TO-220AC
Supplier Device Package:TO-220AC ins
Operating Temperature - Junction:150°C (Max)
