Overview

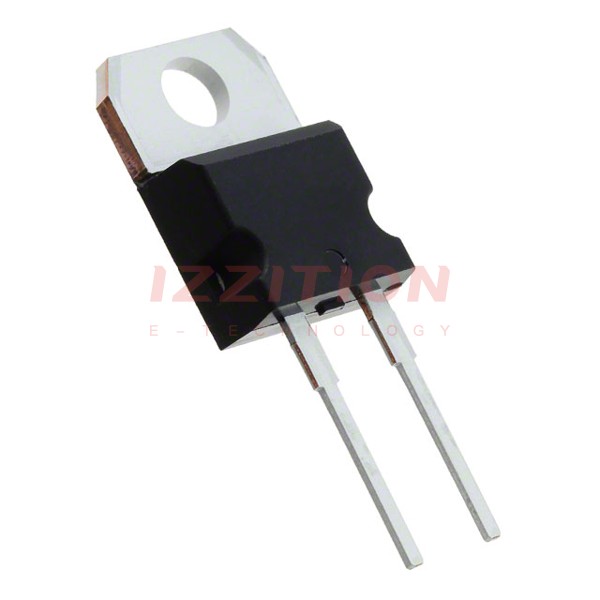

The STTA806D is a high-performance fast recovery rectifier diode manufactured by STMicroelectronics. Although this product is currently obsolete and no longer in production, it was known for its ultra-fast recovery characteristics and high voltage handling capabilities. The diode was part of the TURBOSWITCH family, which is renowned for drastically reducing losses in high-voltage applications.
Key Specifications
| Parameter | Value |
|---|---|
| Maximum Reverse Voltage (Vrrm) | 600 V |
| Forward Voltage (Vf) | 1.75 V |
| Maximum Surge Current (Ifsm) | 90 A |
| Reverse Current (Ir) | 100 uA |
| Recovery Time (trr) | 52 ns |
Key Features
- Ultra-fast recovery time, reducing switching losses.
- High maximum reverse voltage of 600 V.
- Low forward voltage drop of 1.75 V.
- High surge current capability of up to 90 A.
- Low reverse current of 100 uA.
Applications
The STTA806D was suitable for various high-voltage applications, including power supplies, motor drives, and other high-frequency switching circuits. Its fast recovery time and high voltage handling made it ideal for use in systems requiring efficient and reliable rectification.
Q & A
- What is the maximum reverse voltage of the STTA806D?
The maximum reverse voltage of the STTA806D is 600 V. - What is the forward voltage drop of the STTA806D?
The forward voltage drop of the STTA806D is 1.75 V. - What is the maximum surge current of the STTA806D?
The maximum surge current of the STTA806D is 90 A. - What is the recovery time of the STTA806D?
The recovery time of the STTA806D is 52 ns. - Is the STTA806D still in production?
No, the STTA806D is obsolete and no longer manufactured. - What type of diode is the STTA806D?
The STTA806D is a fast recovery rectifier diode. - What are some typical applications for the STTA806D?
Typical applications include power supplies, motor drives, and other high-frequency switching circuits. - What is the reverse current of the STTA806D?
The reverse current of the STTA806D is 100 uA. - Why is the STTA806D part of the TURBOSWITCH family?
The STTA806D is part of the TURBOSWITCH family due to its ultra-fast recovery characteristics and high voltage handling, which drastically reduce losses in high-voltage applications. - Where can I find substitutes for the STTA806D?
You can find substitutes for the STTA806D on websites like Digi-Key, Mouser, or by consulting the official STMicroelectronics website.
