Overview
The STM32G030C6T6TR is a mainstream microcontroller from STMicroelectronics, part of the STM32G030x6/x8 family. It is based on the high-performance Arm® Cortex®-M0+ 32-bit RISC core, operating at up to 64 MHz. This microcontroller is designed for a wide range of applications in consumer, industrial, and appliance domains, as well as for Internet of Things (IoT) solutions. It offers a high level of integration, including various peripherals and communication interfaces, making it suitable for diverse use cases.
Key Specifications
| Parameter | Specification |
|---|---|
| Core | Arm® 32-bit Cortex®-M0+ CPU, up to 64 MHz |
| Operating Temperature | -40°C to 85°C |
| Memories | Up to 64 Kbytes of Flash memory with protection, 8 Kbytes of SRAM with HW parity check |
| Voltage Range | 2.0 V to 3.6 V |
| Low-Power Modes | Sleep, Stop, Standby |
| Clock Management | 4 to 48 MHz crystal oscillator, 32 kHz crystal oscillator with calibration, Internal 16 MHz RC with PLL option, Internal 32 kHz RC oscillator (±5 %) |
| I/Os | Up to 44 fast I/Os, all mappable on external interrupt vectors, multiple 5 V-tolerant I/Os |
| ADC | 12-bit, 0.4 µs ADC (up to 16 external channels), conversion range: 0 to 3.6V |
| Timers | Eight timers: four 16-bit general-purpose, two watchdogs, SysTick timer, and advanced motor control timers |
| Communication Interfaces | Two I2C-bus interfaces, two USARTs with master/slave synchronous SPI, two SPIs (32 Mbit/s), one I2S interface |

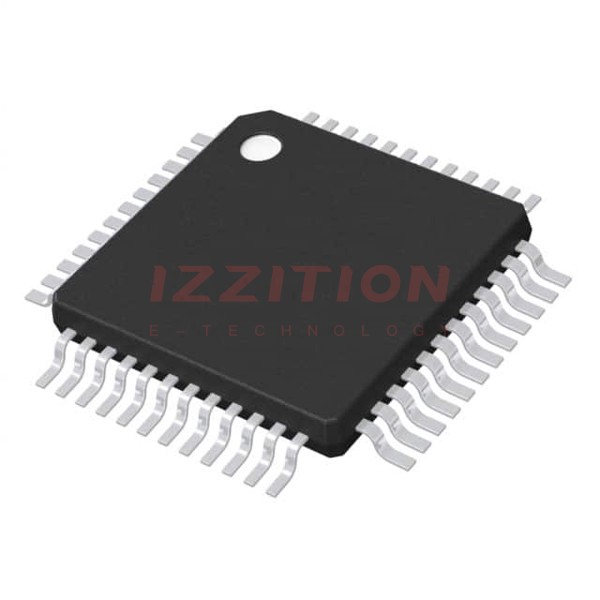

| Package | LQFP 48 7x7x1.4 mm |
Key Features
- High-performance Arm® Cortex®-M0+ 32-bit RISC core operating at up to 64 MHz
- Up to 64 Kbytes of Flash memory with protection and 8 Kbytes of SRAM with HW parity check
- CRC calculation unit and reset and power management with POR/PDR and low-power modes
- VBAT supply for RTC and backup registers
- Clock management with various crystal and internal oscillators
- Up to 44 fast I/Os and multiple 5 V-tolerant I/Os
- 5-channel DMA controller with flexible mapping
- 12-bit ADC with up to 16 external channels and hardware oversampling
- Eight timers including advanced motor control and general-purpose timers
- Calendar RTC with alarm and periodic wakeup from Stop/Standby
- Communication interfaces including I2C, USART, SPI, and I2S
- Development support with serial wire debug (SWD)
- All packages are ECOPACK 2 compliant
Applications
The STM32G030C6T6TR is versatile and can be used in a variety of applications, including:
- Consumer electronics: such as home appliances, personal care devices, and gaming consoles.
- Industrial automation: including control systems, sensors, and actuators.
- Appliance control: for smart home devices, HVAC systems, and other household appliances.
- Internet of Things (IoT): for connected devices, smart sensors, and other IoT applications.
- Automotive systems: for various automotive control and monitoring systems.
Q & A
- What is the core architecture of the STM32G030C6T6TR?
The core architecture is based on the Arm® 32-bit Cortex®-M0+ CPU.
- What is the maximum operating frequency of the STM32G030C6T6TR?
The maximum operating frequency is up to 64 MHz.
- What are the memory specifications of the STM32G030C6T6TR?
It has up to 64 Kbytes of Flash memory with protection and 8 Kbytes of SRAM with HW parity check.
- What is the operating temperature range of the STM32G030C6T6TR?
The operating temperature range is from -40°C to 85°C.
- What are the low-power modes available on the STM32G030C6T6TR?
The available low-power modes are Sleep, Stop, and Standby.
- What types of communication interfaces does the STM32G030C6T6TR support?
It supports two I2C-bus interfaces, two USARTs, two SPIs, and one I2S interface.
- Does the STM32G030C6T6TR have any specific power management features?
Yes, it includes power-on/power-down reset (POR/PDR) and VBAT supply for RTC and backup registers.
- What is the package type and size of the STM32G030C6T6TR?
The package type is LQFP 48 with dimensions of 7x7x1.4 mm.
- Is the STM32G030C6T6TR compliant with any environmental standards?
Yes, it is ECOPACK 2 compliant.
- What development tools are available for the STM32G030C6T6TR?
It supports serial wire debug (SWD) for development.
- Can the STM32G030C6T6TR be used in IoT applications?
Yes, it is suitable for various IoT solutions due to its low power consumption and comprehensive set of peripherals.
