Overview

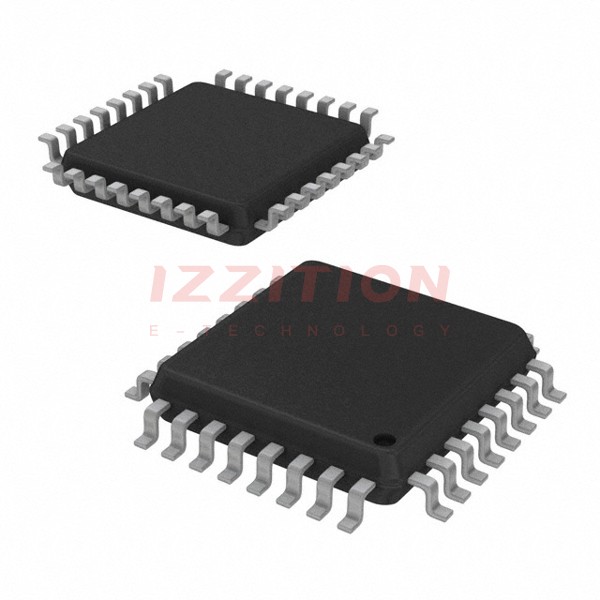

The STM32G030K6T6TR is a 32-bit microcontroller from STMicroelectronics, part of the STM32G0 series. It features an ARM Cortex-M0+ processor core, making it a powerful and efficient solution for various embedded applications. This microcontroller is packaged in a 32-pin Low Quad Flat Package (LQFP-32), providing a compact form factor suitable for narrow designs. With 32KB of flash memory and 8KB of SRAM, it offers sufficient storage and processing capabilities for a wide range of tasks. The STM32G030K6T6TR also supports a comprehensive development ecosystem, including software libraries and hardware, making it a versatile choice for developers.
Key Specifications
| Attribute | Specification |
|---|---|
| Manufacturer | STMicroelectronics |
| Family Name | STM32G0 |
| Core Processor | ARM Cortex-M0+ |
| Program Memory Type | Flash |
| Flash Size (Bytes) | 32kB |
| RAM Size | 8kB |
| Speed | 64MHz |
| No of I/O Lines | 29 |
| Interface Type / Connectivity | IrDA/I2C/LINbus/SPI/UART/USART |
| Peripherals | DMA/I2S/POR/PWM |
| Number Of Timers | 6 (including 16-bit timers and watchdogs) |
| Supply Voltage | 2V to 3.6V |
| Operating Temperature | -40°C to +85°C |
| Package Style | LQFP-32 |
| Mounting Method | Surface Mount |
Key Features
- Processor Core: ARM Cortex-M0+ with a maximum frequency of 64 MHz.
- Memory: 32KB of flash memory and 8KB of SRAM with hardware parity check.
- Interfaces: Supports multiple communication interfaces including I2C, SPI, UART, USART, and IrDA.
- Timers and Peripherals: Includes DMA, I2S, POR, PWM, and up to 6 timers (16-bit and watchdogs).
- Analog Functions: Features a 12-bit ADC and DAC for reading and generating analog signals.
- Power Management: Offers low-power modes such as Sleep, Stop, and Standby, along with VBAT supply for RTC and backup registers.
- Development Support: Includes serial wire debug (SWD) and a comprehensive development ecosystem with software libraries and hardware.
Applications
- Industrial Control: Suitable for industrial automation and control systems due to its robust features and low power consumption.
- IoT Devices: Ideal for Internet of Things (IoT) applications requiring efficient processing and communication capabilities.
- Consumer Electronics: Used in various consumer electronic devices that require compact, efficient, and reliable microcontrollers.
- Battery-Powered Devices: Its power-saving modes make it suitable for battery-powered applications, ensuring longer battery life.
Q & A
- What is the core processor of the STM32G030K6T6TR?
The core processor is the ARM Cortex-M0+.
- What is the maximum clock frequency of the STM32G030K6T6TR?
The maximum clock frequency is 64 MHz.
- How much flash and RAM memory does the STM32G030K6T6TR have?
It has 32KB of flash memory and 8KB of SRAM.
- What are the communication interfaces supported by the STM32G030K6T6TR?
It supports I2C, SPI, UART, USART, and IrDA interfaces.
- What is the operating temperature range of the STM32G030K6T6TR?
The operating temperature range is -40°C to +85°C.
- What is the package style and mounting method of the STM32G030K6T6TR?
The package style is LQFP-32, and the mounting method is Surface Mount.
- Does the STM32G030K6T6TR support low-power modes?
Yes, it supports low-power modes such as Sleep, Stop, and Standby.
- What are the analog functions available on the STM32G030K6T6TR?
It features a 12-bit ADC and DAC for reading and generating analog signals.
- Is the STM32G030K6T6TR RoHS compliant?
Yes, the STM32G030K6T6TR is RoHS compliant.
- What development support does the STM32G030K6T6TR offer?
It includes serial wire debug (SWD) and a comprehensive development ecosystem with software libraries and hardware.
