Overview

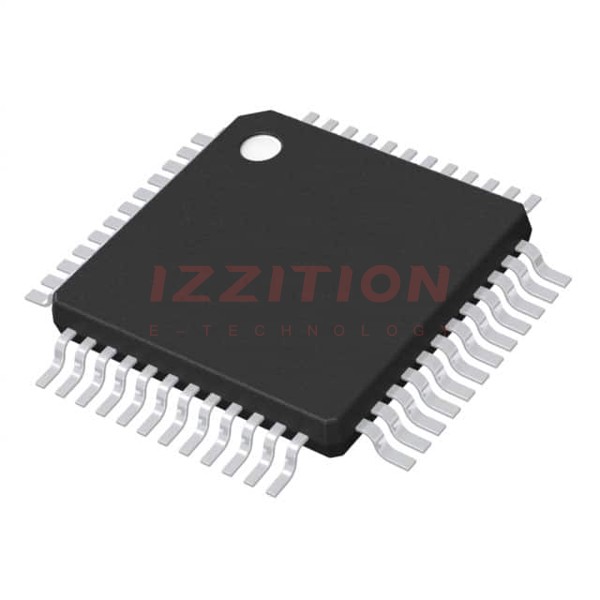

The STM32G030C8T6TR is a mainstream microcontroller from STMicroelectronics, based on the high-performance Arm® Cortex®-M0+ 32-bit RISC core. This microcontroller operates at a frequency of up to 64 MHz and is designed for a wide range of applications in consumer, industrial, and appliance domains, as well as for Internet of Things (IoT) solutions. It offers a high level of integration, including advanced peripherals and low-power modes, making it suitable for various demanding applications.
Key Specifications
| Specification | Details |
|---|---|
| Core | Arm® 32-bit Cortex®-M0+ CPU, up to 64 MHz |
| Operating Temperature | -40°C to 85°C |
| Memories | Up to 64 Kbytes of Flash memory with protection, 8 Kbytes of SRAM with HW parity check |
| Voltage Range | 2.0 V to 3.6 V |
| Reset and Power Management | Power-on/Power-down reset (POR/PDR), low-power modes: Sleep, Stop, Standby |
| Communication Interfaces | Two USARTs, two SPIs, two I2Cs, one I2S |
| ADC | One 12-bit ADC (2.5 MSps) with up to 19 channels |
| Timers | Four general-purpose 16-bit timers, two watchdog timers, one SysTick timer |
| I/Os | 43 high-current I/Os |
| Package | ECOPACK |
Key Features
- High-performance Arm® Cortex®-M0+ 32-bit RISC core
- Up to 64 Kbytes of Flash memory and 8 Kbytes of SRAM
- Advanced peripherals including DMA, CRC calculation unit, and enhanced I/Os
- Standard communication interfaces: two USARTs, two SPIs, two I2Cs, and one I2S
- One 12-bit ADC with up to 19 channels and a low-power RTC
- Four general-purpose 16-bit timers and two watchdog timers
- Low-power modes: Sleep, Stop, Standby
- VBAT supply for RTC and backup registers
- Serial wire debug (SWD) for development support
Applications
The STM32G030C8T6TR is versatile and can be used in a variety of applications, including:
- Consumer electronics
- Industrial automation and control systems
- Appliance control
- Internet of Things (IoT) solutions
- Low-power embedded systems
Q & A
- What is the core architecture of the STM32G030C8T6TR?
The core architecture is based on the Arm® 32-bit Cortex®-M0+ CPU. - What is the maximum operating frequency of the STM32G030C8T6TR?
The maximum operating frequency is up to 64 MHz. - What are the memory specifications of the STM32G030C8T6TR?
It includes up to 64 Kbytes of Flash memory and 8 Kbytes of SRAM. - What are the communication interfaces available on the STM32G030C8T6TR?
The device features two USARTs, two SPIs, two I2Cs, and one I2S interface. - Does the STM32G030C8T6TR support low-power modes?
Yes, it supports low-power modes such as Sleep, Stop, and Standby. - What is the operating temperature range of the STM32G030C8T6TR?
The operating temperature range is from -40°C to 85°C. - How many high-current I/Os does the STM32G030C8T6TR have?
The device has 43 high-current I/Os. - What type of ADC is included in the STM32G030C8T6TR?
The device includes a 12-bit ADC with up to 19 channels. - Does the STM32G030C8T6TR support serial wire debug (SWD)?
Yes, it supports serial wire debug (SWD) for development. - What is the package type of the STM32G030C8T6TR?
The package type is ECOPACK.
