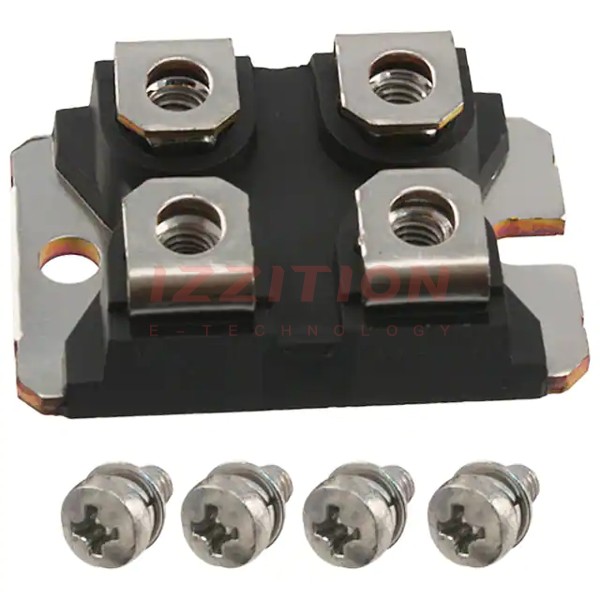

STMicroelectronics BUT30V

Manufacturer No:
BUT30V
Manufacturer:
STMicroelectronics
Package:
Tube
Description:
TRANS NPN 125V 100A ISOTOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BUT30V is a high-performance NPN bipolar junction transistor (BJT) power module produced by STMicroelectronics. This component is designed for high-current and high-voltage applications, making it suitable for various industrial and power management systems. The BUT30V is packaged in an ISOTOP (Insulated Standard Outline Transistor Package) and features a single transistor configuration.

Key Specifications

ParameterValueUnit
Transistor TypeNPN
Maximum DC Collector Current (Ic)100A
Voltage - Collector Emitter Breakdown (Vceo)125V
Collector-Emitter Voltage (Vcev)200V
Package / CaseISOTOP
Mounting StyleSMD/SMT

Key Features

  • High collector current capability of up to 100 A.
  • High collector-emitter voltage breakdown of up to 125 V.
  • Fast switching times, making it suitable for high-frequency applications.
  • Non-inductive load handling.
  • ISOTOP package for improved thermal performance and isolation.

Applications

The BUT30V is ideal for various high-power applications, including:

  • Power management systems.
  • Industrial control systems.
  • Motor control and drive systems.
  • High-frequency switching circuits.
  • Power supplies and converters.

Q & A

  1. What is the maximum collector current of the BUT30V?
    The maximum collector current of the BUT30V is 100 A.
  2. What is the collector-emitter voltage breakdown of the BUT30V?
    The collector-emitter voltage breakdown of the BUT30V is up to 125 V.
  3. What type of transistor is the BUT30V?
    The BUT30V is an NPN bipolar junction transistor.
  4. What package type does the BUT30V use?
    The BUT30V is packaged in an ISOTOP (Insulated Standard Outline Transistor Package).
  5. Is the BUT30V suitable for high-frequency applications?
    Yes, the BUT30V is suitable for high-frequency applications due to its fast switching times.
  6. Can the BUT30V handle non-inductive loads?
    Yes, the BUT30V can handle non-inductive loads.
  7. What are some common applications of the BUT30V?
    The BUT30V is commonly used in power management systems, industrial control systems, motor control and drive systems, high-frequency switching circuits, and power supplies and converters.
  8. Is the BUT30V still in production?
    No, the BUT30V is listed as obsolete by some suppliers.
  9. Where can I find detailed specifications for the BUT30V?
    Detailed specifications for the BUT30V can be found in the datasheet available on STMicroelectronics' official website and through distributors like Digi-Key and Mouser.
  10. What is the mounting style of the BUT30V?
    The mounting style of the BUT30V is SMD/SMT.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):100 A
Voltage - Collector Emitter Breakdown (Max):125 V
Vce Saturation (Max) @ Ib, Ic:900mV @ 10A, 100A
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:27 @ 100A, 5V
Power - Max:250 W
Frequency - Transition:-
Operating Temperature:150°C (TJ)
Mounting Type:Chassis Mount
Package / Case:ISOTOP
Supplier Device Package:ISOTOP
