BU931T
  • Share:

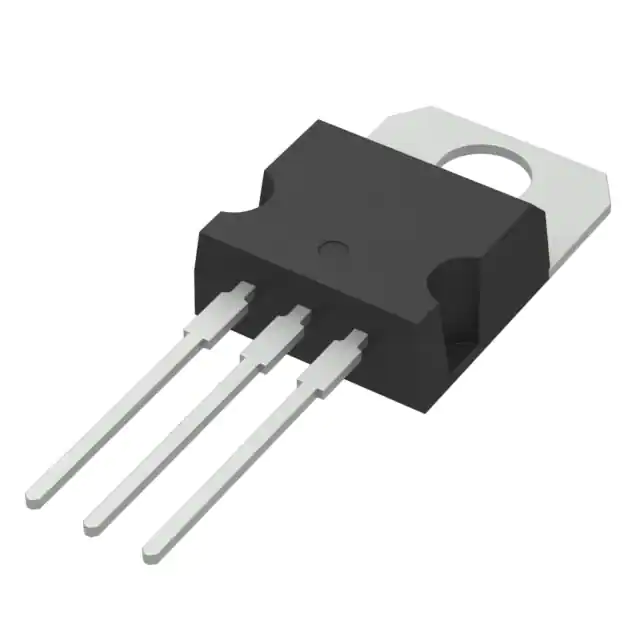

STMicroelectronics BU931T

Manufacturer No:
BU931T
Manufacturer:
STMicroelectronics
Package:
Tube
Description:
TRANS NPN DARL 400V 10A TO220
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BU931T is an automotive-grade high voltage ignition coil driver NPN power Darlington transistor developed by STMicroelectronics. This transistor is designed using multi-epitaxial planar technology, making it suitable for the demanding conditions of automotive environments. It is specifically engineered to function as an electronic ignition power actuator.

Key Specifications

ParameterValue
TypeNPN Power Darlington Transistor
Collector-Emitter Voltage (VCEO)500V
Collector Current (IC)10A
Power Dissipation (PD)175W
PackageTO220AB

Key Features

  • High voltage capability: Designed to handle high voltage requirements, making it ideal for ignition coil driver applications.
  • High current handling: Capable of handling up to 10A of collector current.
  • Automotive-grade: Engineered to withstand the harsh conditions of automotive environments.
  • Multi-epitaxial planar technology: Ensures reliable and efficient performance.

Applications

The BU931T is primarily used in automotive ignition systems as an electronic ignition power actuator. It is suitable for applications requiring high voltage and current handling, such as ignition coil drivers in vehicles.

Q & A

  1. What is the BU931T transistor used for? The BU931T is used as an electronic ignition power actuator in automotive ignition systems.
  2. What is the collector-emitter voltage (VCEO) of the BU931T? The collector-emitter voltage (VCEO) is 500V.
  3. What is the maximum collector current (IC) of the BU931T? The maximum collector current (IC) is 10A.
  4. What is the power dissipation (PD) of the BU931T? The power dissipation (PD) is 175W.
  5. In what package is the BU931T available? The BU931T is available in the TO220AB package.
  6. Is the BU931T suitable for automotive environments? Yes, the BU931T is specifically designed for automotive environments.
  7. What technology is used in the BU931T? The BU931T uses multi-epitaxial planar technology.
  8. Where can I find detailed specifications for the BU931T? Detailed specifications can be found in the datasheet available on STMicroelectronics' official website and other electronic component distributors like TME and Mouser.
  9. Is the BU931T still in production? The BU931T is listed as an obsolete product, but it may still be available from some distributors.
  10. What are some key features of the BU931T? Key features include high voltage capability, high current handling, and automotive-grade design.

Product Attributes

Transistor Type:NPN - Darlington
Current - Collector (Ic) (Max):10 A
Voltage - Collector Emitter Breakdown (Max):400 V
Vce Saturation (Max) @ Ib, Ic:1.8V @ 250mA, 10A
Current - Collector Cutoff (Max):100µA
DC Current Gain (hFE) (Min) @ Ic, Vce:300 @ 5A, 10V
Power - Max:125 W
Frequency - Transition:-
Operating Temperature:175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-220-3
Supplier Device Package:TO-220
0 Remaining View Similar

In Stock

$3.04
247

Please send RFQ , we will respond immediately.

Same Series
BU931P
BU931P
TRANS NPN DARL 400V 15A TO247-3
BU931
BU931
TRANS NPN DARL 400V 15A TO3

Similar Products

Part Number BU931T BU931 BU931P
Manufacturer STMicroelectronics STMicroelectronics STMicroelectronics
Product Status Active Obsolete Active
Transistor Type NPN - Darlington NPN - Darlington NPN - Darlington
Current - Collector (Ic) (Max) 10 A 15 A 15 A
Voltage - Collector Emitter Breakdown (Max) 400 V 400 V 400 V
Vce Saturation (Max) @ Ib, Ic 1.8V @ 250mA, 10A 1.8V @ 250mA, 10A 1.8V @ 250mA, 10A
Current - Collector Cutoff (Max) 100µA 100µA 100µA
DC Current Gain (hFE) (Min) @ Ic, Vce 300 @ 5A, 10V 300 @ 5A, 10V 300 @ 5A, 10V
Power - Max 125 W 175 W 135 W
Frequency - Transition - - -
Operating Temperature 175°C (TJ) 200°C (TJ) 175°C (TJ)
Mounting Type Through Hole Chassis Mount Through Hole
Package / Case TO-220-3 TO-204AA, TO-3 TO-247-3
Supplier Device Package TO-220 TO-3 TO-247-3
